All wheel inflation - for cheap

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
21
Messages
591
Reaction score
993
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

Picked up a cheaply made 4 tire inflator with locking closed flow chucks - and it’s working great and is super compact due to the small cheap vinyl hose. I’m in $40 for this - which is a quarter the cost of other off-road inflation kits. It’s also long enough - it would have cost more in parts to source this myself.
-This is the kit I purchased

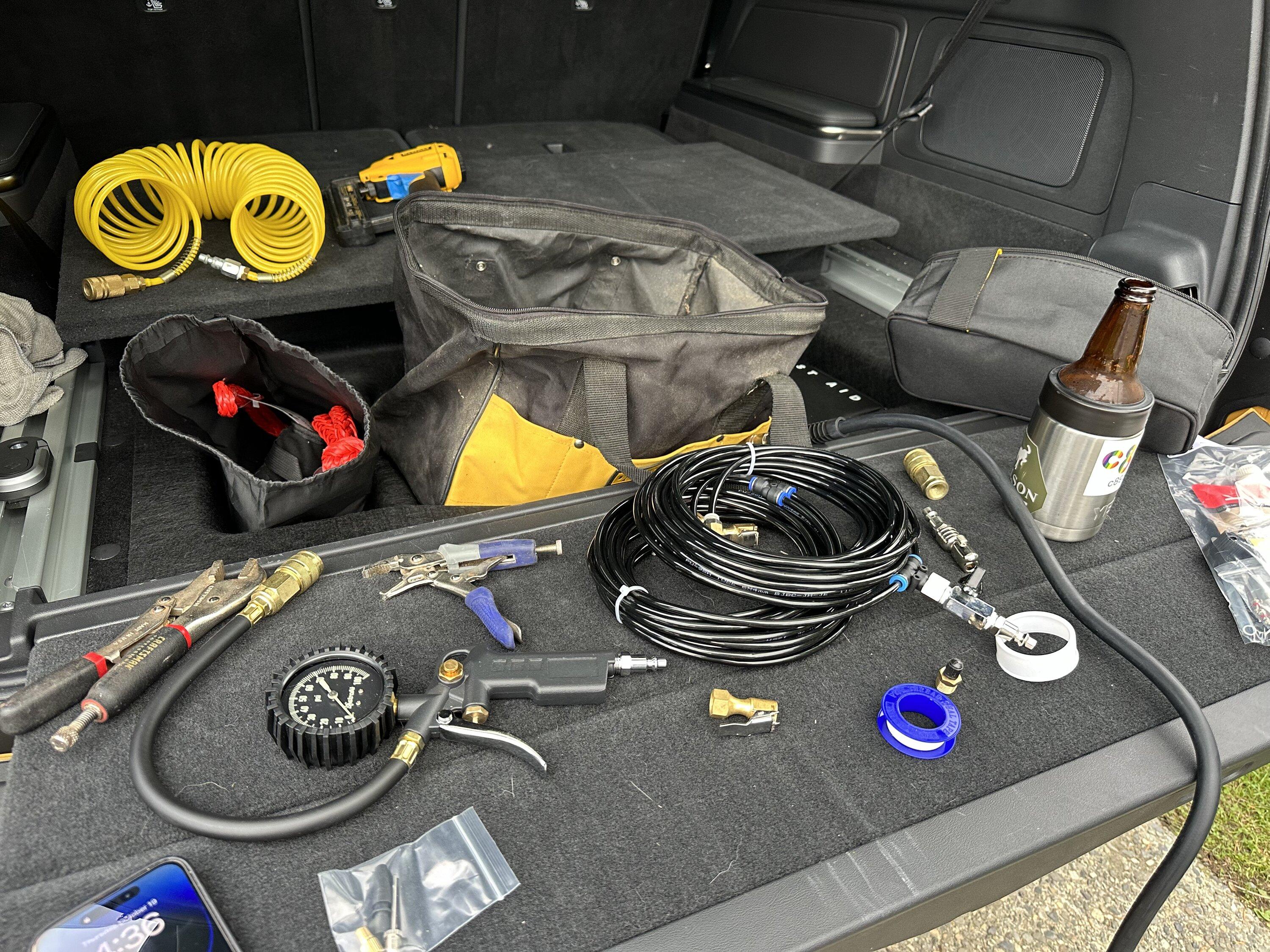

It took a bit of modification to fully convert it to standard quarter inch disconnects - but I was able to add my in-line analog pressure gauge to validate all tires can be aired up or aired down to the same pressure at the same time.
Rivian R1T R1S All wheel inflation - for cheap IMG_0384

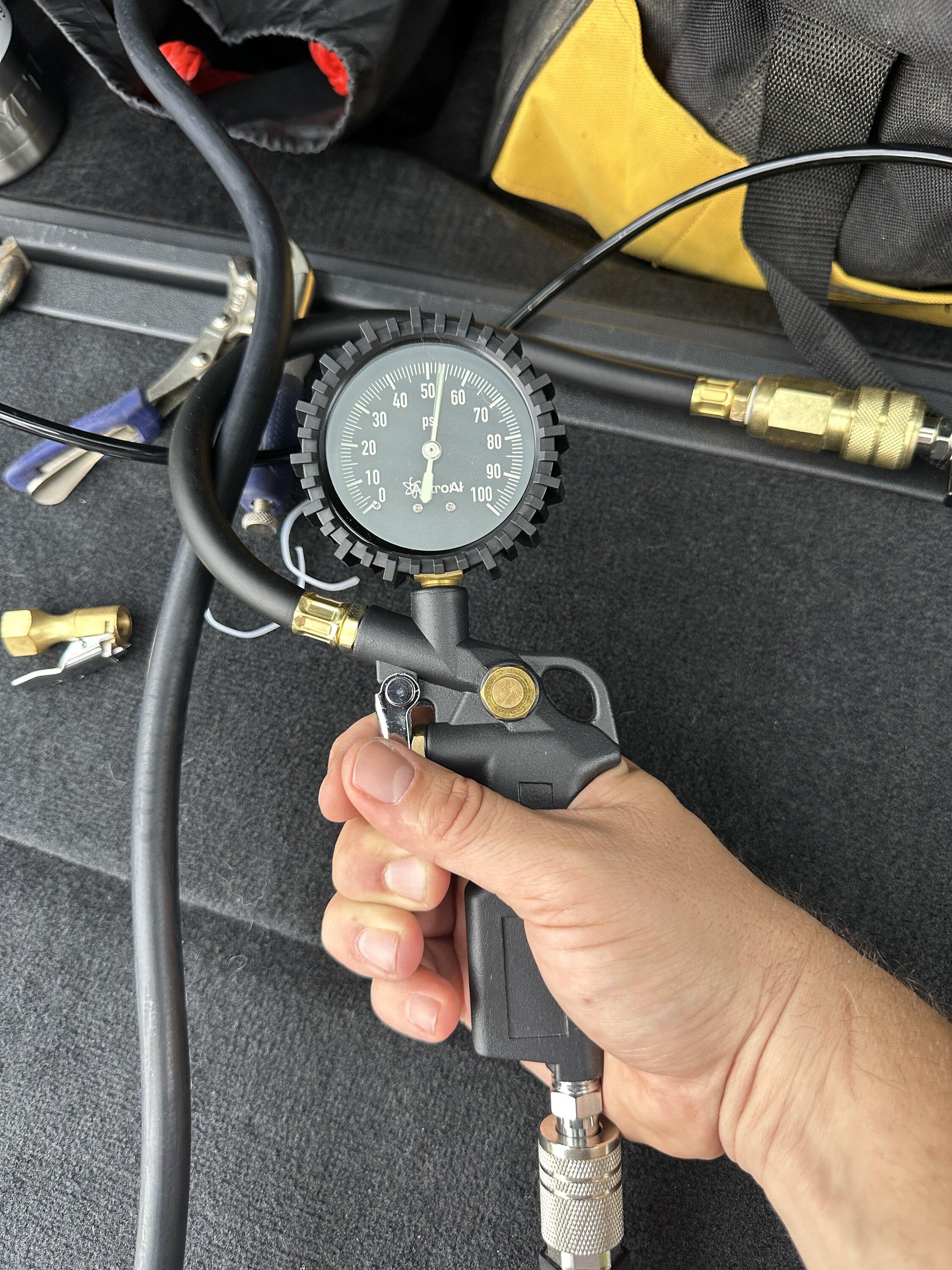

Rivian R1T R1S All wheel inflation - for cheap IMG_0393

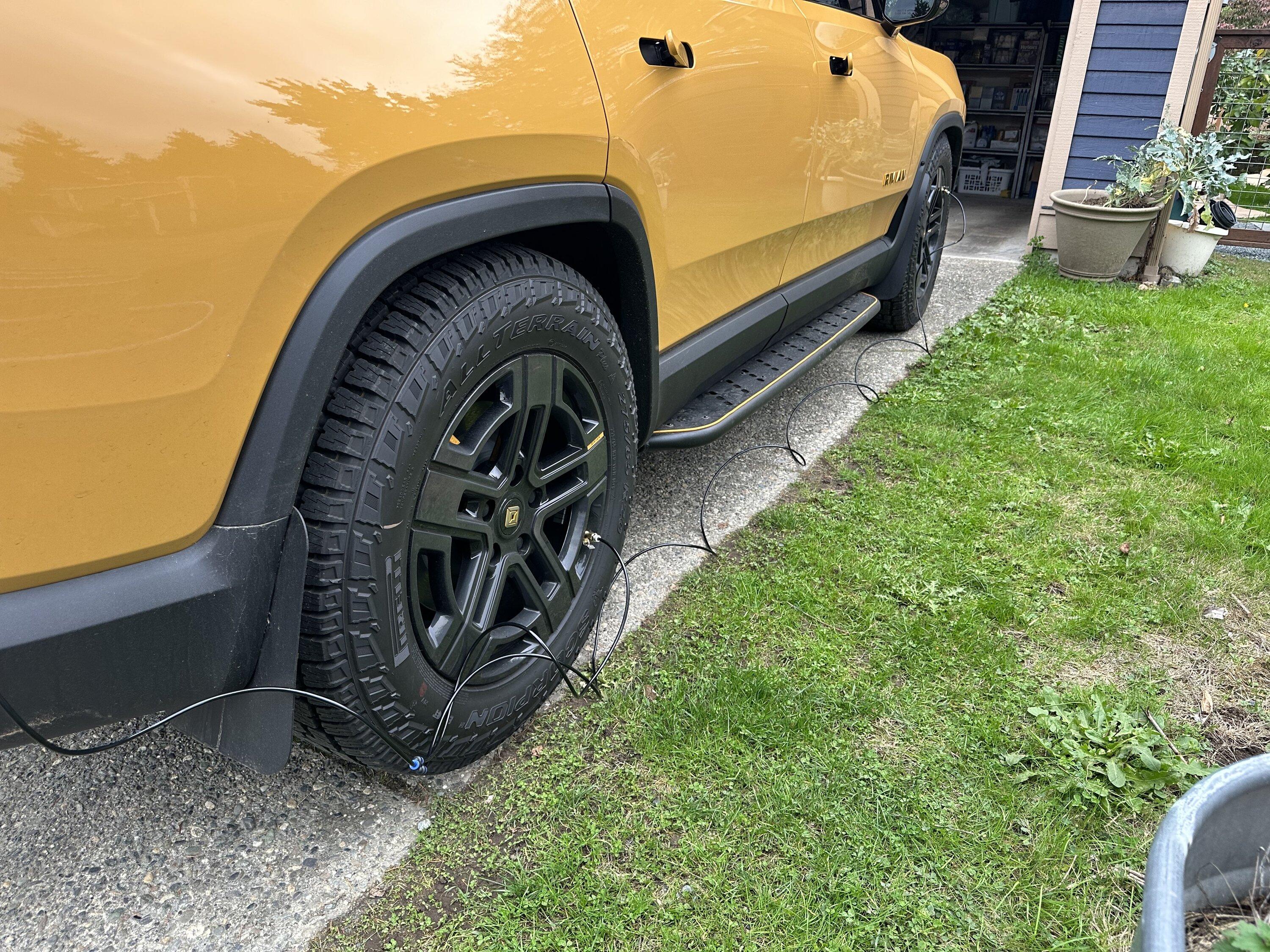

The lines split from a central T to a second T on each side that then runs to the passenger/driver wheels.
Rivian R1T R1S All wheel inflation - for cheap IMG_0398

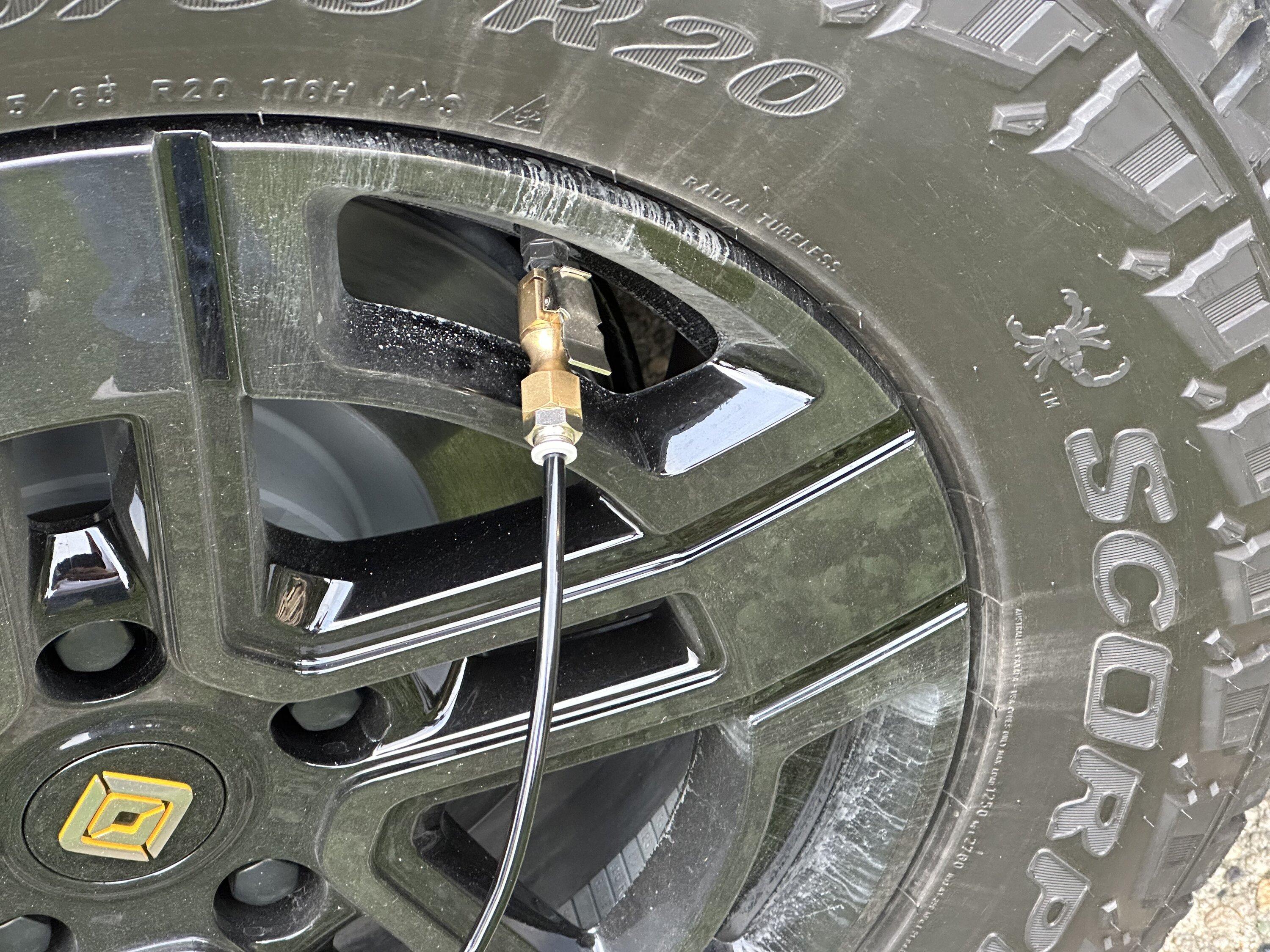

Rivian R1T R1S All wheel inflation - for cheap IMG_0401
Sponsored


Last edited:
OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
21
Messages
591
Reaction score
993
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

Why not use the compressor that comes with the truck?

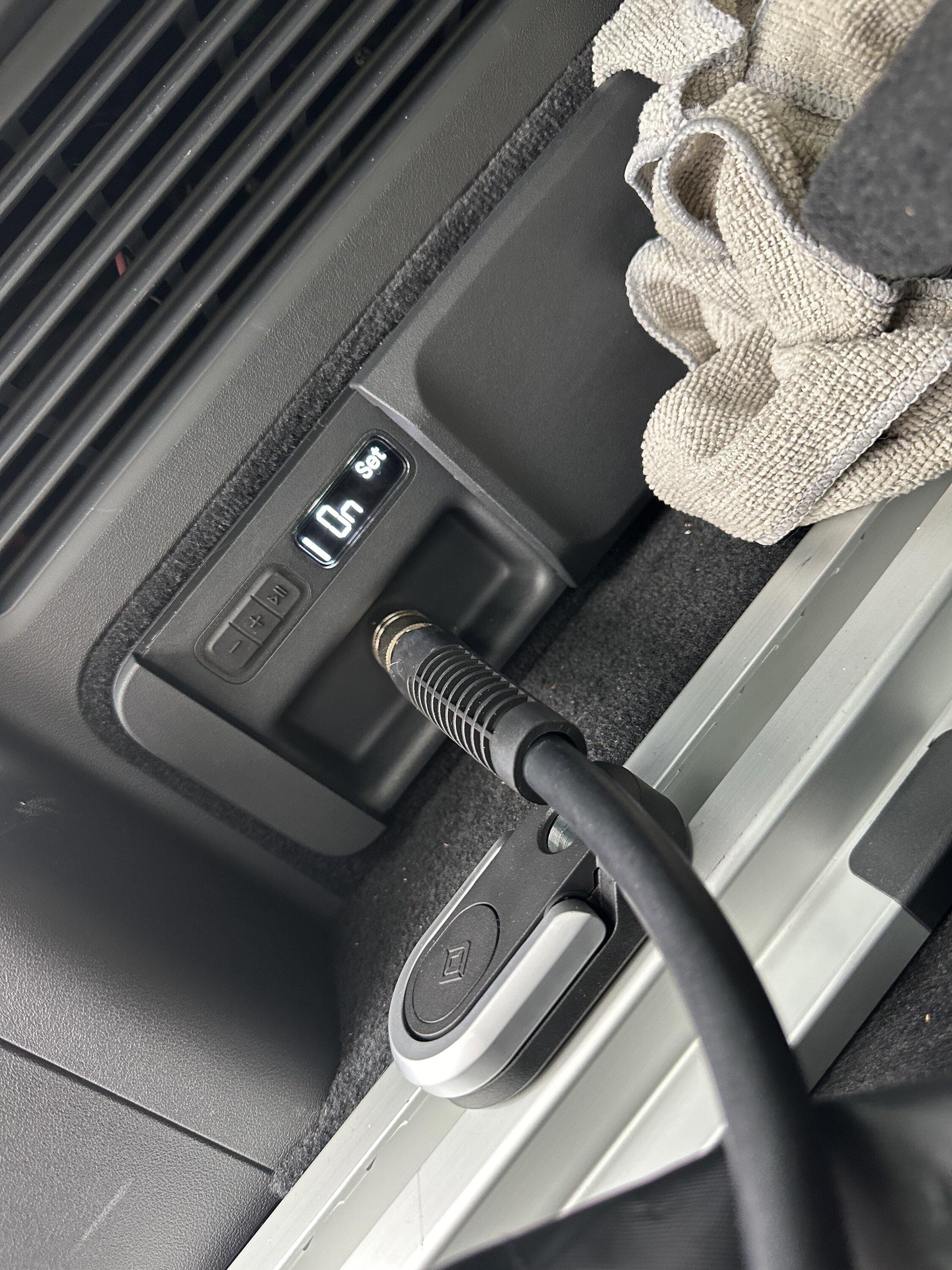

I am using the OBC - this allows me to inflate all four at once without having to move the chuck each time and lets me lower the pressure for off-road needs.

Rivian R1T R1S All wheel inflation - for cheap IMG_0388


jjswan33

Well-Known Member
First Name
Joshua
Joined
Sep 17, 2021
Threads
121
Messages
4,143
Reaction score
8,925
Location
Sandy, OR
Vehicles
Rivian R1T LE, Hyundai Ioniq 5 Limited
Occupation
Engineer
Clubs

I think we have all had enough with the inflation... and it definitely isn't cheap

bad jokes aside, nicely done


WSea

Well-Known Member
First Name
Patrick
Joined
Mar 6, 2022
Threads
39
Messages
1,662
Reaction score
1,991
Location
West seattle
Vehicles
R1T, Outback
Occupation
Architect
+1 for all tire inflation/deflation. Didn't see the value at first. Got the Thor's with the 8' extension and no longer need the riv hose


Sponsored

OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
21
Messages
591
Reaction score
993
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

+1 for all tire inflation/deflation. Didn't see the value at first. Got the Thor's with the 8' extension and no longer need the riv hose
100% next step is a 3’ hose as a lead between OBC and my trigger - then the Rivian hose will be an emergency only backup.

Seeing what the Thor kit cost and other “FourBy” kits cost is what drove me this direction.


foxerson

Well-Known Member
First Name
Mike
Joined
Dec 13, 2022
Threads
9
Messages
255
Reaction score
453
Location
San Francisco
Vehicles
'10 Outback, '11 328i, '23 R1T
Very cool. I had been eyeing cheap 4-tire inflation options and had picked this one for my Christmas wish list.


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
105
Messages
10,161
Reaction score
19,595
Location
Michigan
Vehicles
Polestar 2, R1T, R1S, Livewire One, Fisker Ocean
Occupation
Engineering
Clubs

I've got a similar setup, but have discovered it takes too long to fill my aftermarket 20s from 25 psi up to the 60psi I drive with on-road. Still considering upgrading the compressor but haven't done anything about it yet.


Brewbud

Well-Known Member
Joined
Jun 18, 2019
Threads
5
Messages
470
Reaction score
396
Location
SoCal
Vehicles
R1T, 20 Cummins, 05 Jeep LJR, 22 Range Rover Sport
I made a similar setup a few years ago. Mine does two at a time though. Up until I got the R1T I never ran the same tire pressure in all four tires. It also made the storage size a little smaller.


WSea

Well-Known Member
First Name
Patrick
Joined
Mar 6, 2022
Threads
39
Messages
1,662
Reaction score
1,991
Location
West seattle
Vehicles
R1T, Outback
Occupation
Architect
I've got a similar setup, but have discovered it takes too long to fill my aftermarket 20s from 25 psi up to the 60psi I drive with on-road. Still considering upgrading the compressor but haven't done anything about it yet.
Insanely long and the quick connect is almost too hot to touch
