"Charging speed slower - Warm Plug Detected" Message

coney129

Well-Known Member
First Name
John
Joined
Jun 16, 2024
Threads
10
Messages
49
Reaction score
39
Location
Philadelphia
Vehicles
2025 Rivian R1S

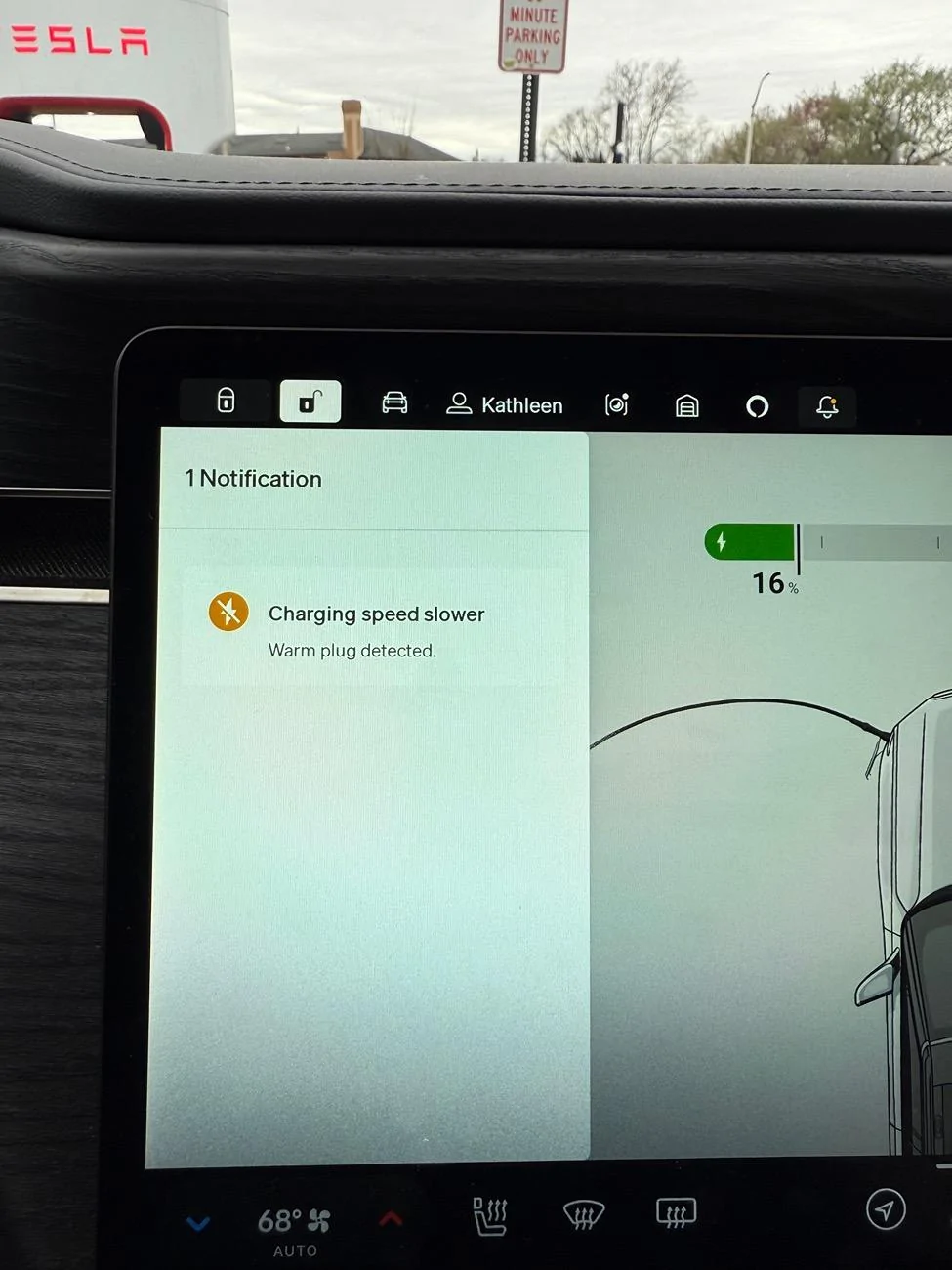

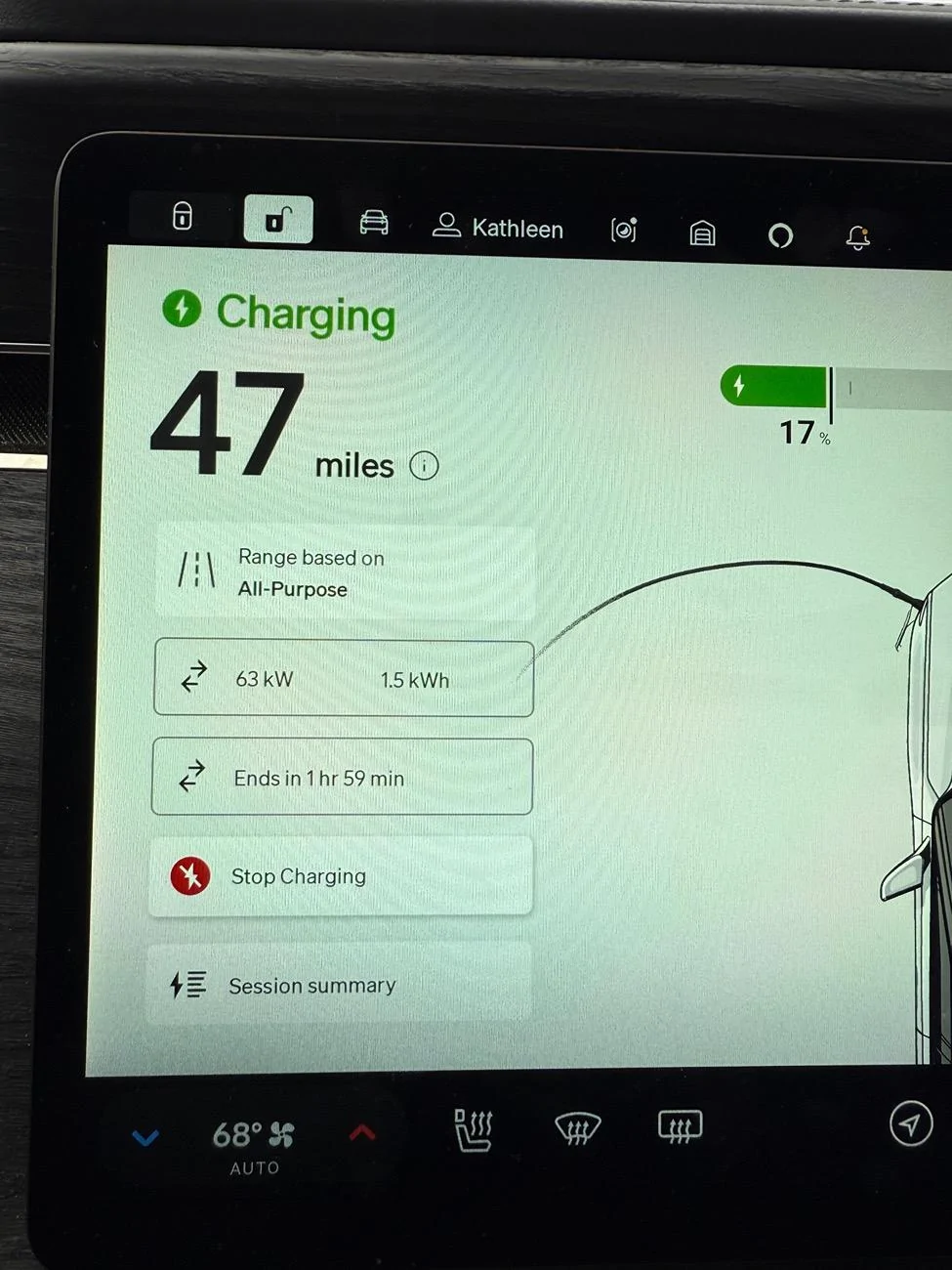

Over the past few days, I’ve been getting a “Warm Plug Detected” error at various Tesla chargers with my Rivian. The vehicle hasn’t been sitting in the sun, and the weather has been relatively cool, so I don’t think it’s a temperature-related issue.

Curious if others have seen this recently or know of a fix.

Rivian R1T R1S "Charging speed slower - Warm Plug Detected" Message IMG_1550


Rivian R1T R1S "Charging speed slower - Warm Plug Detected" Message IMG_1551
Sponsored



No_Name5330

Well-Known Member
Joined
Sep 5, 2022
Threads
10
Messages
228
Reaction score
263
Location
Park City, Utah
Vehicles
F-150 tremor/ GMC Yukon AT4/ R1S
Clubs

Happens to me charging at home if the garage is above 60 so i’ve learned to accept it, if i’m in a hurry i turn on a fan and the problem is resolved.


Beanejar

Well-Known Member
Joined
Mar 14, 2019
Threads
0
Messages
51
Reaction score
93
Location
Michigan
Vehicles
R1S - CY/OC
Seen it a few times on Tesla chargers I know are older stations. Moving to another open spot has resolved it. A rare event for me. Never get the warning at any other DC charger (multiple brands) nor at home.


RedRaiderRivian

Well-Known Member
Joined
Dec 23, 2022
Threads
0
Messages
328
Reaction score
464
Location
San Antonio
Vehicles
2022 Rivian R1T - Canyon Red, 2016 Nissan Leaf
Clubs

Over the past few days, I’ve been getting a “Warm Plug Detected” error at various Tesla chargers with my Rivian. The vehicle hasn’t been sitting in the sun, and the weather has been relatively cool, so I don’t think it’s a temperature-related issue.

Curious if others have seen this recently or know of a fix.
Could be dirty charger pins. Check out this thread Melted plugs.


DCFC

Well-Known Member
Joined
Jul 13, 2024
Threads
0
Messages
117
Reaction score
132
Location
SoCal
Vehicles
P2
If the truck detects the charge port getting too hot too quickly, it will reduce the charging power to protect itself. This can happen when the cooling system on the charging cable isn't performing well or there is contamination in the charging pins. I'll add that I'd the truck didn't protect itself, the cable could get welded to the truck.


Sponsored

Mellowyellow

Well-Known Member
Joined
Jan 27, 2024
Threads
10
Messages
579
Reaction score
839
Location
Westchester NY
Vehicles
R1S
Clubs

If it works fine with other brands of chargers, and in fair weather, I'd suggest switching to a different Tesla SC and checking the pins.


RedRaiderRivian

Well-Known Member
Joined
Dec 23, 2022
Threads
0
Messages
328
Reaction score
464
Location
San Antonio
Vehicles
2022 Rivian R1T - Canyon Red, 2016 Nissan Leaf
Clubs

If the truck detects the charge port getting too hot too quickly, it will reduce the charging power to protect itself. This can happen when the cooling system on the charging cable isn't performing well or there is contamination in the charging pins. I'll add that I'd the truck didn't protect itself, the cable could get welded to the truck.
I am going to vote for dirty pins even on less than 3 month old SC. Here's a picture of my swabs at 2 different SCs from a couple of months ago.

Rivian R1T R1S "Charging speed slower - Warm Plug Detected" Message 1000003743

OP
OP

coney129

Well-Known Member
First Name
John
Joined
Jun 16, 2024
Threads
10
Messages
49
Reaction score
39
Location
Philadelphia
Vehicles
2025 Rivian R1S
Update: Tried 4 different Tesla chargers and even an EVGO DC fast charger. Also hard reset — same error every time. Looks like the issue is with the vehicle, not the chargers.

Last edited:

RedRaiderRivian

Well-Known Member
Joined
Dec 23, 2022
Threads
0
Messages
328
Reaction score
464
Location
San Antonio
Vehicles
2022 Rivian R1T - Canyon Red, 2016 Nissan Leaf
Clubs

Update: Tried 4 different Tesla chargers and even an EVGO DC fast charger. Also hard reset — same error every time. Looks like the issue is with the vehicle, not the chargers.
Have you tried cleaning the pins on the vehicle? They could be dirty from a previous session at a charger that was dirty.


DCFC

Well-Known Member
Joined
Jul 13, 2024
Threads
0
Messages
117
Reaction score
132
Location
SoCal
Vehicles
P2
Update: Tried 4 different Tesla chargers and even an EVGO DC fast charger. Also hard reset — same error every time. Looks like the issue is with the vehicle, not the chargers.
Possibly the high power cable connected to the charge port has loosened


Sponsored

tplociniak

Well-Known Member
First Name
Todd
Joined
Apr 11, 2022
Threads
0
Messages
71
Reaction score
54
Location
NE PA
Vehicles
R1T, VW Atlas
Occupation
Construction Manager
I don't get it on L3 chargers but regularly get it on my home charger when it’s above about 55*. Didn’t happen my first year of ownership though, only started in the second, maybe I’ll try cleaning the pins.


JamboF4

Well-Known Member
First Name
Jim
Joined
Oct 8, 2021
Threads
10
Messages
493
Reaction score
340
Location
Ponte Vedra Beach, FL
Vehicles
R1T, C8 ZO6, Tacoma, Arcimoto
Occupation
Retired airline Captain
Happens to me charging at home if the garage is above 60 so i’ve learned to accept it, if i’m in a hurry i turn on a fan and the problem is resolved.
You’ve had good luck by just putting a fan on it? Interesting. I had some luck by reducing the amp rating from 48 to 35-40.


No_Name5330

Well-Known Member
Joined
Sep 5, 2022
Threads
10
Messages
228
Reaction score
263
Location
Park City, Utah
Vehicles
F-150 tremor/ GMC Yukon AT4/ R1S
Clubs

You’ve had good luck by just putting a fan on it? Interesting. I had some luck by reducing the amp rating from 48 to 35-40.
Ya it’s been working pretty good for me especially if the fan is really blowing than the error will be gone in 5 minutes.


Cascadian

Well-Known Member
First Name
Steve
Joined
Apr 19, 2023
Threads
11
Messages
291
Reaction score
284
Location
Seattle
Vehicles
Volt, Outback
Clubs

I had this issue on L2 home charger. I cleaned plug and vehicle socket, but still happened. New EVSE fixed it.

For L3 DCFC I would recommend cleaning the vehicle side. If it continues a service ticket is all I can recommend.


602flyer

New Member
Joined
Apr 6, 2025
Threads
0
Messages
1
Reaction score
1
Location
AZ
Vehicles
2022 R1T LE
I had this happen at Tesla and EA stations but oddly not RAN stations. I’d bounce around between 60kW and 200 kW for a bit then get the slightly terrifying warning saying “charging stopped, plug locked. Wait 15 seconds to disconnect.”

There was an issue with the temperature sensor in the charge port. I spoke to the tech who said the charging logs showed the positive pin had some outrageously high temperature and the negative pin was showing something normal.

Get a service appointment booked and document the dates/times you had charging issues in the ticket. I think my tech said logs are kept for a few months (but don’t quote me on that).
