Overall height cheat sheet

teddyang

Well-Known Member
First Name
Ted
Joined
Jun 16, 2022
Threads
22
Messages
250
Reaction score
564
Location
Los Angeles, CA
Vehicles
R1T Adeventure Edition, RB, BM, 21"
Clubs

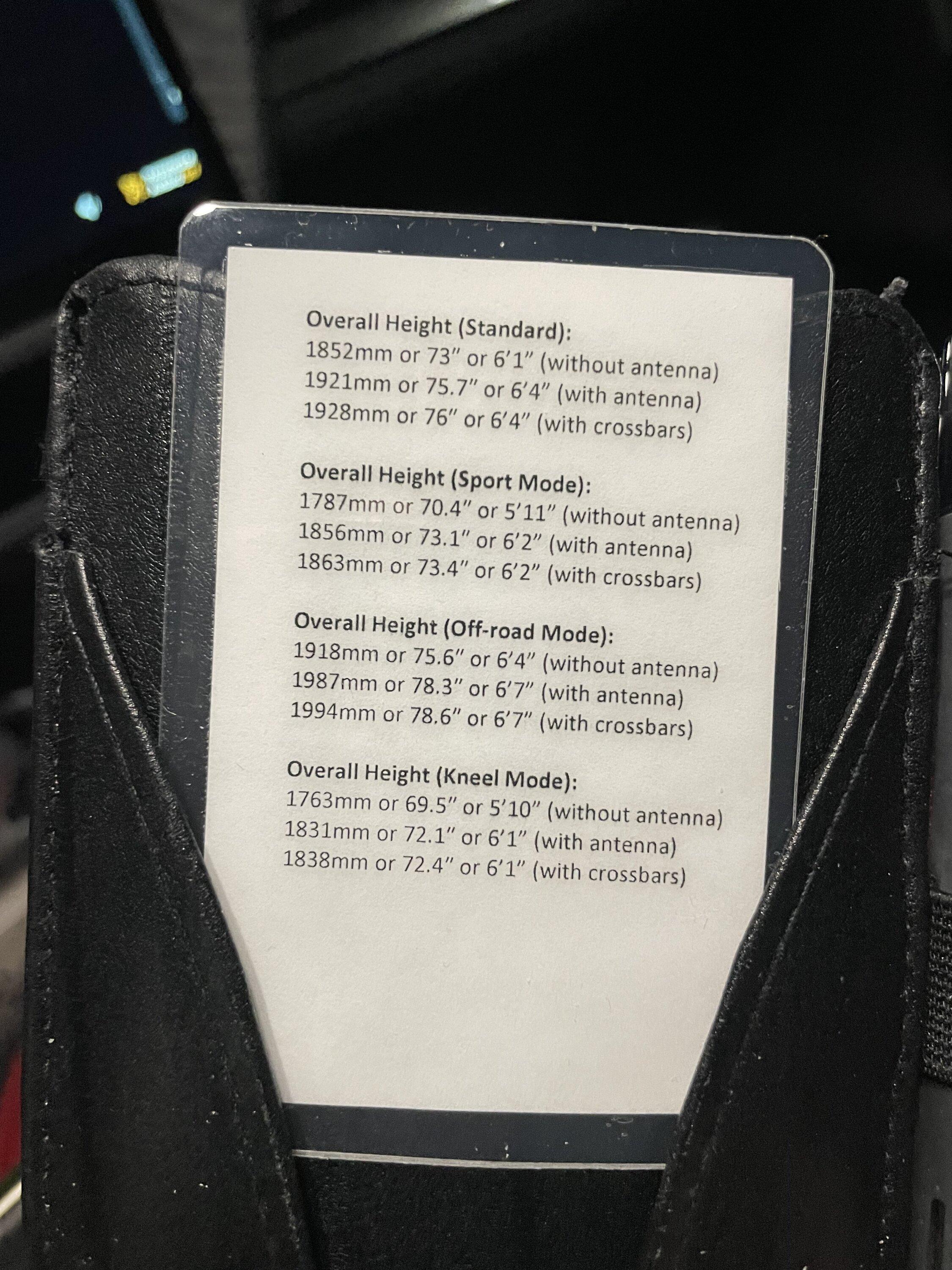

This is my first time owning such a tall vehicle let alone one with adjustable suspension. Given the many low ceilinged garages in the Socal area I always have to remind myself that it'll fit in most garages, but I made a handy cheat sheet to keep in the car for my own peace of mind.

Rivian R1T R1S Overall height cheat sheet IMG_0403
