I heard in one of the reviews Rivian may be coming out with running boards. DO not want to go for 3rd party if Rivian will offer one. Any experience with 3rd party ones that anyone would like to share, also any impact to Rivian warranty. I did mention this during my R1S delivery discussions and was told there might be a impact however the rep was vague.
I went with
https://evsportline.com/products/team-1ev-rmaxx-running-board-rock-sliders-for-rivian-r1t-r1s

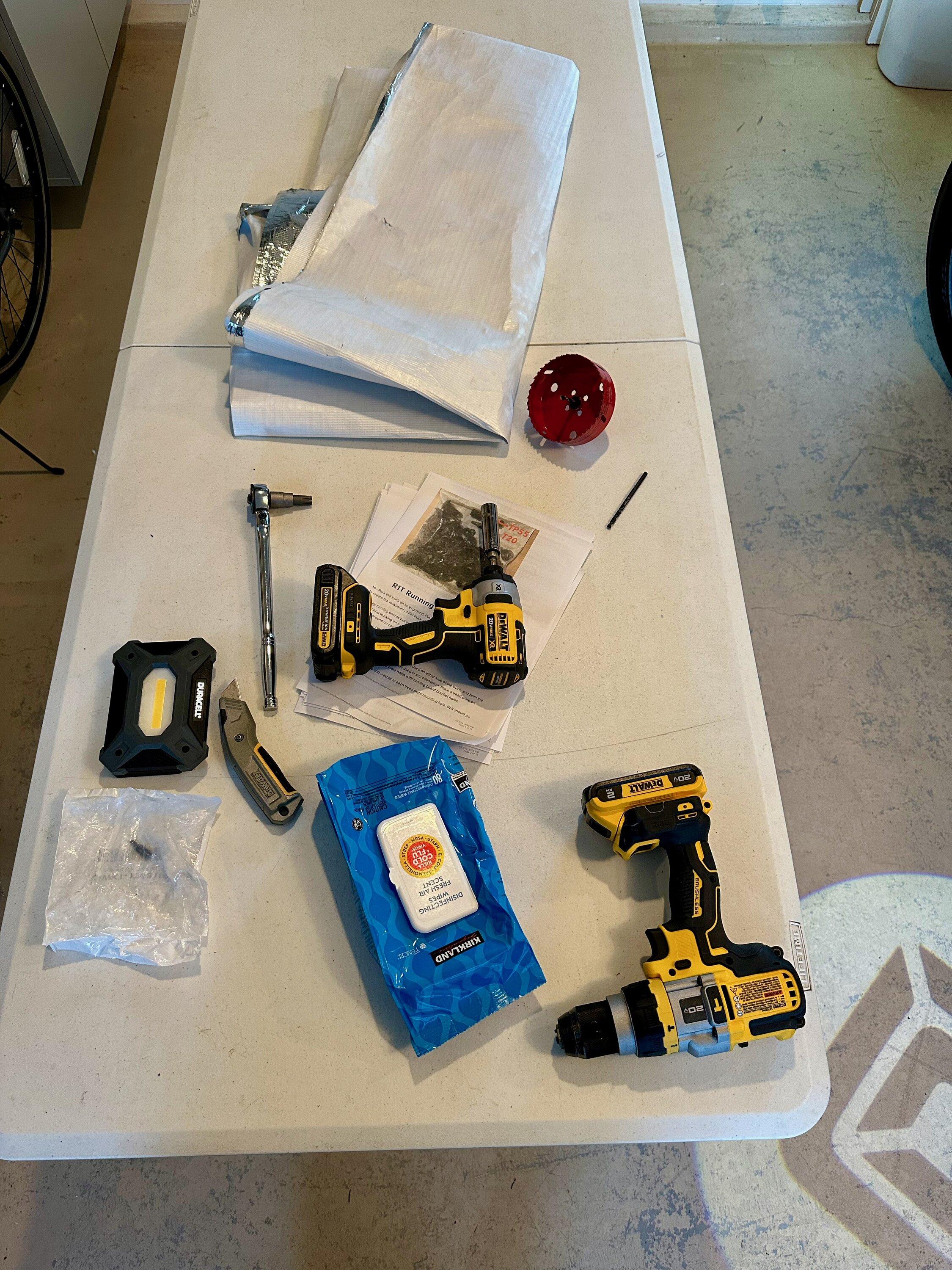

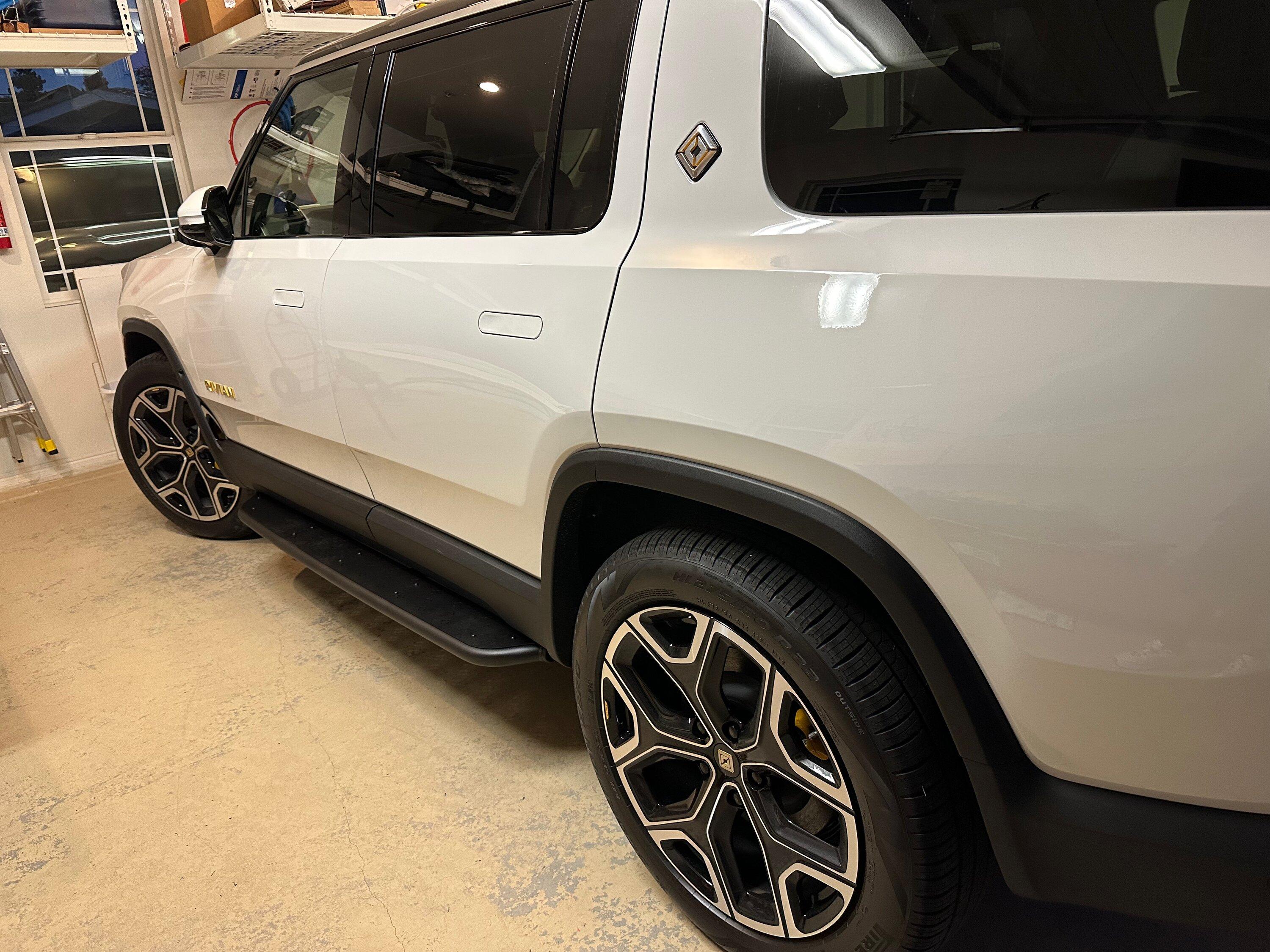

Got them this week have installed them, attaching pictures of the R1S with boards and the tools used.
Boards are easy to install - I did it by myself took 2-3 hours considering everything - followed the instructions. Some tips below -
I went with
https://evsportline.com/products/team-1ev-rmaxx-running-board-rock-sliders-for-rivian-r1t-r1s
Got them this week have installed them, attaching pictures of the R1S with boards and the tools used.
Boards are easy to install - I did it by myself took 2-3 hours considering everything - followed the instructions. Some tips below -
- R1S needs to be in off road mode max height.
- Used the 4 inch hole cutter, easiest method.
- I used the template provided in the instructions but made a hole to center with a regular drill bit, then used the 4 inch hole cutter, this saved time, you could also use the hole cutter on the template directly - take your time to get the template aligned correctly.
- Does not matter day or night take a light with you under the vehicle.
- Do not use a drill with the supplied TP55, almost took my hand off use a drive ratchet (pictured) with as long a handle as possible - it takes strength to unscrew the factory bolts.
- Careful when putting the bolts in with the running board attachments and tightening them back - make sure the threads are going in right.
- I placed the running board on two chairs then went under the vehicle to attach them.
- Before super tightening everything make sure the boards are lined up from the outside - will save you a few iterations.
