Needed to pass some wires from the bumper to the inside of the frunk. Removal is pretty straightforward.
-Remove the four plastic covers surrounding the frunk. The front piece is magnetic and the others have simple clips, just gently nudge them upwards and they release pretty easily.

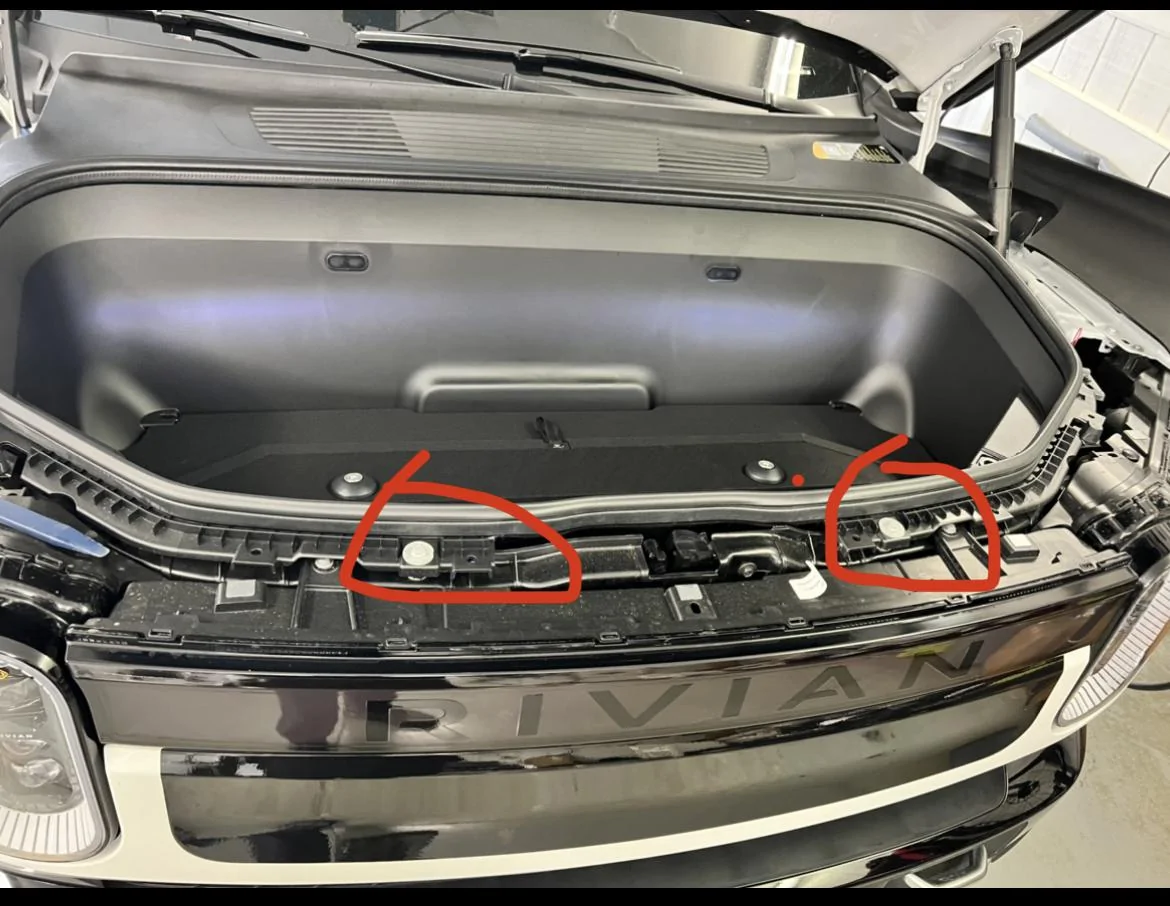

-Remove the 6 screws (circled red). 2 up front, 2 in the rear, and one on each side.

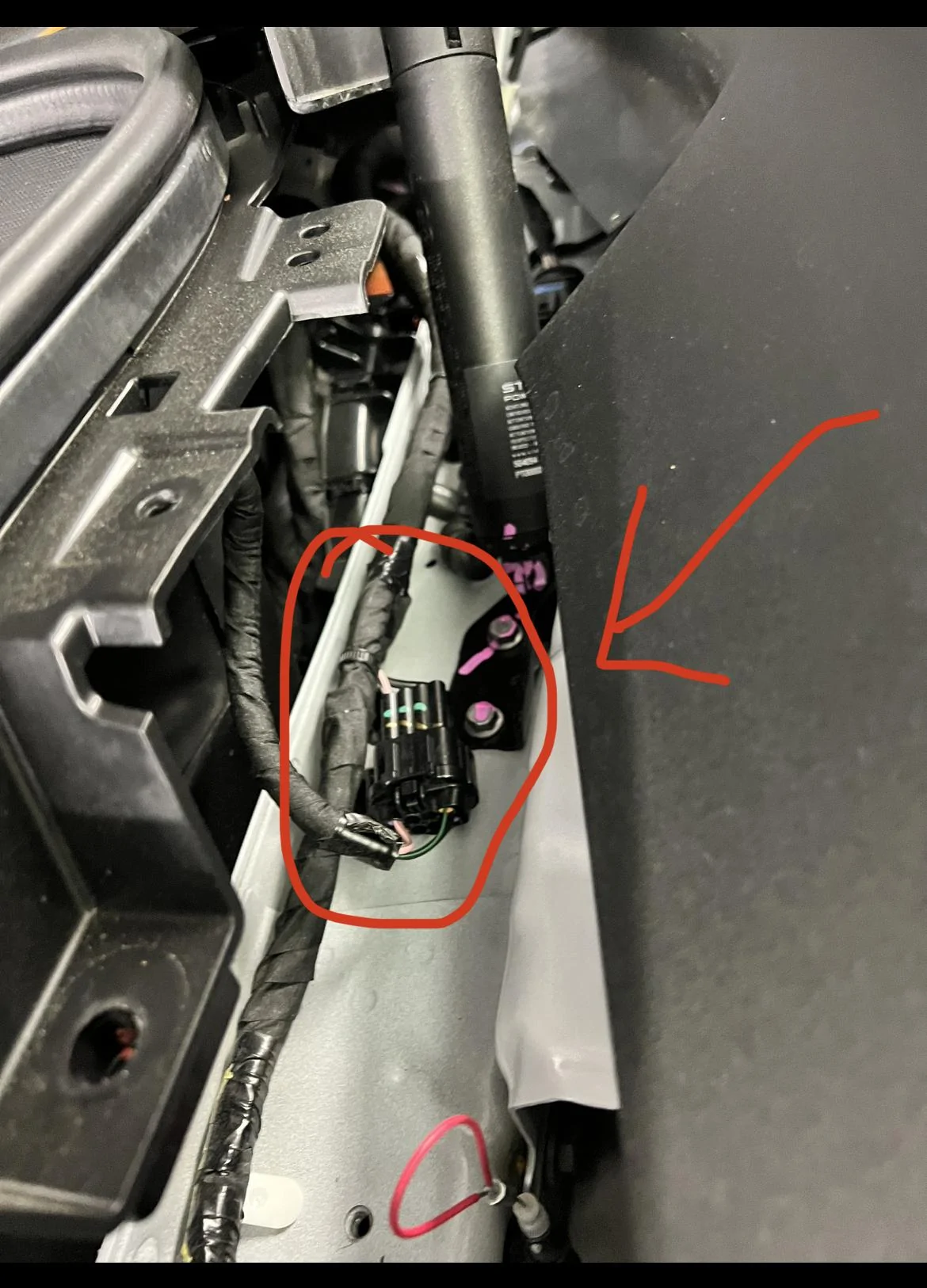

-Unclip the two plugs on each side (circled red)

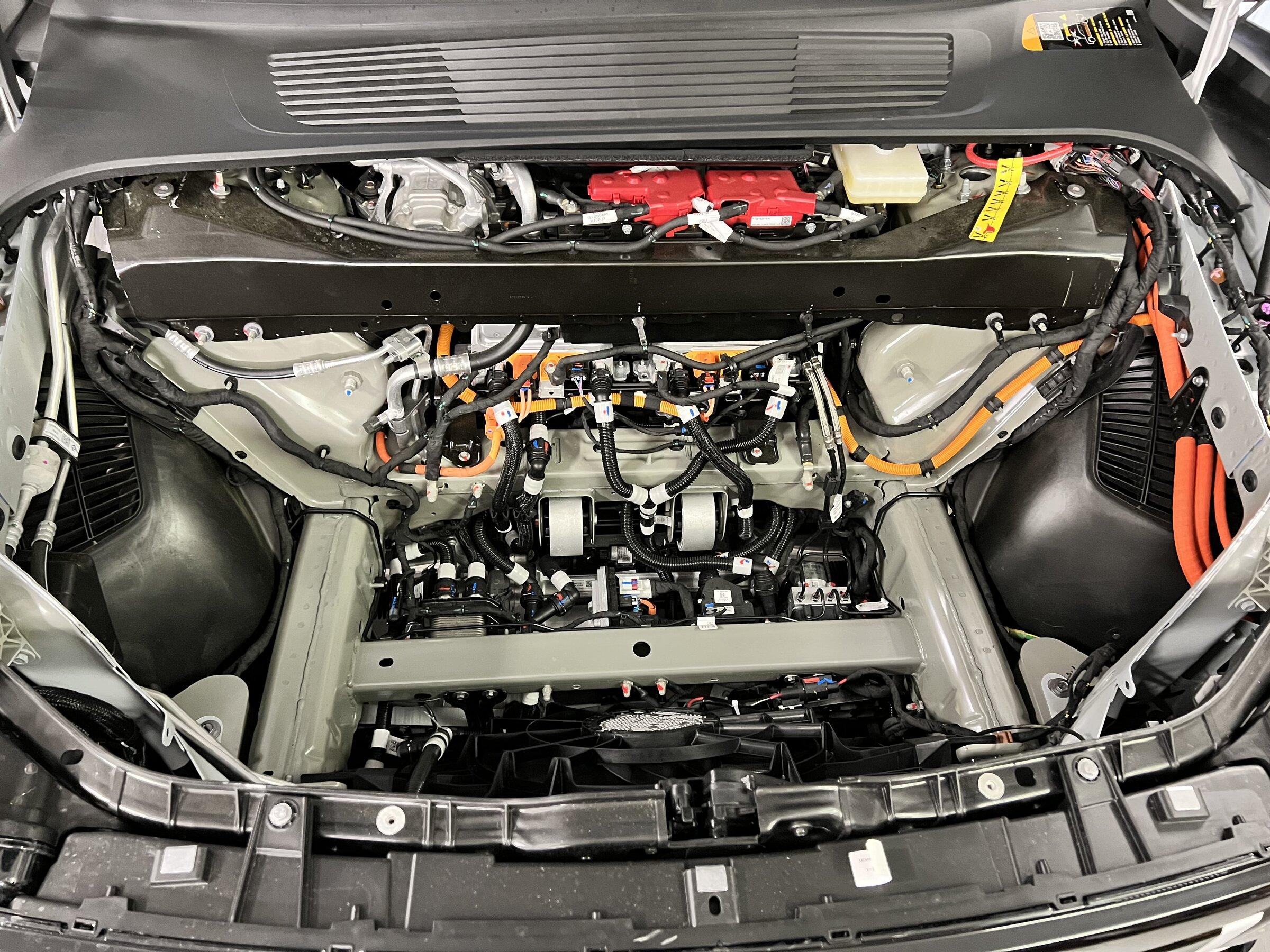

-Lift out the tub and enjoy the brilliant engineering



ATL_R1S

Well-Known Member
Joined
Feb 17, 2022
Threads
1
Messages
113
Reaction score
265
Location
Atlanta
Vehicles
'15 Leaf, '13 Tiguan, '13 BRZ
Am I seeing vented fender liners? Surely this isn't for aero since there's no exit path for the air... right?


R1Sky Business

Well-Known Member
Joined
Mar 15, 2022
Threads
24
Messages
3,177
Reaction score
2,388
Location
CA
Vehicles
R1S
Engineering department…..please explain what we are looking at.


mini2nut

Well-Known Member
Joined
Feb 4, 2022
Threads
26
Messages
998
Reaction score
1,127
Location
SoCal
Vehicles
Tacoma, Model Y
I see the 12v battery under the cowl. And who said BEV’s were simpler than an ICE vehicle?



MountainBikeDude

Well-Known Member
First Name
Adam
Joined
Jun 20, 2019
Threads
22
Messages
1,021
Reaction score
2,000
Location
Vancouver
Vehicles
2010 Nissan Xterra (El Cap R1T Max pack)
Engineering department…..please explain what we are looking at.
Well, what ya got there is a standard Johnson Rod which could use a Retorque. And your blinker fluid looks a little low.



crashmtb

Well-Known Member
Joined
Jul 11, 2021
Threads
0
Messages
4,066
Reaction score
6,182
Location
Man oh Manitoba
Vehicles
2002 aluminium garden shed TD5
Well, what ya got there is a standard Johnson Rod which could use a Retorque. And your blinker fluid looks a little low.
And yet…Not a turbo encabulator in sight.

its all ball bearings nowadays anyway


boredcleaner

Well-Known Member
First Name
Thomas
Joined
Oct 9, 2021
Threads
7
Messages
71
Reaction score
170
Location
Moraga, CA
Vehicles
Bolt, Model 3, R1T VIN 34XX LE Glacier White
Occupation
Engineer
Needed to pass some wires from the bumper to the inside of the frunk. Removal is pretty straightforward.
-Remove the four plastic covers surrounding the frunk. The front piece is magnetic and the others have simple clips, just gently nudge them upwards and they release pretty easily.
-Remove the 6 screws (circled red). 2 up front, 2 in the rear, and one on each side.
-Unclip the two plugs on each side (circled red)
-Lift out the tub and enjoy the brilliant engineering
Ok, I'll ask...what wires and for what purpose? Is this something my better half is going to smack me in the back of my head over?


CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Threads
18
Messages
3,349
Reaction score
6,435
Location
USA
Vehicles
R1T
Am I seeing vented fender liners? Surely this isn't for aero since there's no exit path for the air... right?
I see an electric fan at the front (air conditioning and battery cooling, probably) and that air has to go somewhere. Perhaps Rivian engineered the system so air is directed around the frunk tub and out those wheel well vents?

OP
OP
2020

2020

Well-Known Member
First Name
mfa
Joined
Aug 17, 2021
Threads
19
Messages
83
Reaction score
159
Location
atlanta
Vehicles
Model Y, 488, Model X, Honda Clarity, 911, Jeep
Ok, I'll ask...what wires and for what purpose? Is this something my better half is going to smack me in the back of my head over?
Laser shifters. With 835hp its hard for me to maintain proper speed.


MoreTrout

Well-Known Member
First Name
Jay
Joined
Sep 12, 2021
Threads
11
Messages
325
Reaction score
482
Location
PA
Vehicles
Ford Fusion Hybrid, Rivian R1T
Occupation
Retired USN
Random question. Does the frunk drain plug continue through a drain line underneath or just empty right into that space? When I did the a ride along in a test drive, I mentioned a plan to have a few beverages on ice in the frunk to surprise some friends when I get my truck. The rep told me they do not recommend ever using the frunk for that purpose, but wouldn't elaborate why. She said the drain plug was only for condensation. She also said of course it would be my truck so I could do whatever I want with it, lol. My reply was that since I have to wait another year for a max pack, by then there should be plenty of Youtube examples of the successes or disasters that result from using the frunk as a party cooler. Based on your view of what's underneath, would draining water from it be a concern?
(And yes I know the spare tire space can be used for this, but my beverage supply plan will involve off road locations where I wouldn't go without a spare)



AdamsFan1983

Well-Known Member
First Name
Silence Dogood
Joined
Jun 22, 2021
Threads
69
Messages
982
Reaction score
3,561
Location
Pennsylvania
Vehicles
Rivian R1T LE in GW
Occupation
Public Relations
Needed to pass some wires from the bumper to the inside of the frunk. Removal is pretty straightforward.
-Remove the four plastic covers surrounding the frunk. The front piece is magnetic and the others have simple clips, just gently nudge them upwards and they release pretty easily.
-Remove the 6 screws (circled red). 2 up front, 2 in the rear, and one on each side.
-Unclip the two plugs on each side (circled red)
-Lift out the tub and enjoy the brilliant engineering
Oh man, Sandy Monroe is gonna shit ... a... brick... when he sees all those connectors.


Blueassassin

Well-Known Member
First Name
Allen
Joined
Apr 5, 2021
Threads
21
Messages
1,038
Reaction score
2,022
Location
il
Vehicles
LE R1T, Hummer H1, Lotus Elise, Saab 9-3
Occupation
Equipment Manager
Do you see room for a winch to be mounted in the front? With the weight of this truck a large winch.


aw113sgte

Well-Known Member
Joined
May 11, 2021
Threads
12
Messages
200
Reaction score
346
Location
WI
Vehicles
22 R1t
Oh man, Sandy Monroe is gonna shit ... a... brick... when he sees all those connectors.
And I'm okay with that. He wants the whole car to be fully integrated so when one thing breaks the whole car has to be replaced, all because it makes initial manufacturing cheaper.


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
46
Messages
2,905
Reaction score
4,729
Location
Michigan
Vehicles
Polestar 2, Volt, R1T, Livewire One
Occupation
Engineering
Engineering department…..please explain what we are looking at.
Appears to be some sort of series of tubes.

I might need to pull the tub out and see if my fridge will fit in the entire void space..
