Rivian API

[KenJ]

Has anyone heard anything (or seen anything) about what kinds of API's might be available for Rivian R1S/R1T. Just took a course in Python and thinking about some of the sites I've used like TeslaFi or TeslaSpy to do cool analysis on our vehicles ... I realize this may be way premature (seems like Rivian is even still hiring for these kinds of developer positions)

Sponsored



[zipzag]

Any word on an API since this post? I use the Tesla API with my home automation system and I like the functionality.



[OverZealous]

I wrote in an suggested it a while ago. I agree, I use the Tesla integration with HomeAssistant all the time!



[SACDFJC]

api.rivian.com is alive... hope they actually make it available to people,.



[crashmtb]

api.rivian.com is alive... hope they actually make it available to people,.

I think I just heard @kanundrum crack his knuckles



[kanundrum]

I think I just heard @kanundrum crack his knuckles

There's a lot out there that's open and can Play around with but also...

https://rivian.com/legal/vulnerability

If anyone wants some juicy stuff pm me.



[lostpacket]

There's a lot out there that's open and can Play around with but also...

https://rivian.com/legal/vulnerability

If anyone wants some juicy stuff pm me.

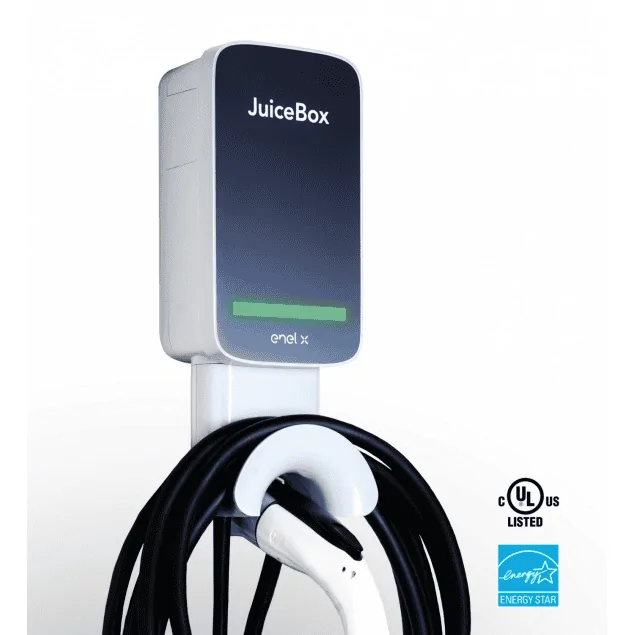

There's a reason I bought one of these

It's a completely unrelated reason but it does also have the word juice in it.


Edit: You may not start a conversation with the following recipients: kanundrum



[kanundrum]

There's a reason I bought one of these

It's a completely unrelated reason but it does also have the word juice in it.


Edit: You may not start a conversation with the following recipients: kanundrum

That's not a reason! This is a proper reason!



[rhuber]

There's a lot out there that's open and can Play around with but also...

https://rivian.com/legal/vulnerability

If anyone wants some juicy stuff pm me.

I tried to pm you, but am not allowed, so reaching out here. Would love to trade notes as I start digging into my truck.



[lostpacket]

same^

I'm on the reddit discord too if that's easier



[zefram47]

It'll be a long time before I see a truck, but watching the thread to see if this goes anywhere. I was disappointed when Kyle said the OBD data was locked down.



[AdamUCF]

I've been digging into this. I don't have a truck and I'd be able to figure out more with one but the APIs don't seem to complicated.

login...

POST https://auth.rivianservices.com/auth/api/v1/token/auth HTTP/1.1

{"username":"[email protected]","pwd":"Password123","source":"mobile","grant_type":"password","client_id":"rivian.mobile.sc12bjxe8lmhkul","client_secret":"rlL058p5kipkZr0C85KrdA4AZ0QBNVh75zXWwEWf"}

Use the access token to call APIs.

Not sure what this one actually does...

GET https://vehicle.rivianservices.com/rdata/api/v1/provision/get_all_invites?user_id=[userid]
Authorization: Bearer [token]

{"all_invites":{},"api":"/rdata/api/v1/provision"}

The mapping uses a separate auth but uses telanav
https://astrapena.telenav.com/entity/v4/search/json?locale=en-US&location=29.3859372%2C-81.372624&f.cat.list=771&limit=50

All the order stuff and the like is graphql queries against rivian.com

POST https://rivian.com/api/gql/orders/graphql/ HTTP/1.1

{"operationName":"vehicleOrders","variables":{},"query":"query vehicleOrders { searchOrders(input: {orderTypes: [PRE_ORDER, VEHICLE], pageInfo: {from: 0, size: 10000}}) { __typename data { __typename id state fulfillmentSummaryStatus items { __typename productDetails { __typename ... on VehicleProduct { sku } } } } } }"}

Sorry, not much useful. Would be easier if I had a truck to interact with. Still digging into it though.



[Zoidz]

I've been digging into this. I don't have a truck and I'd be able to figure out more with one but the APIs don't seem to complicated.

login...

POST https://auth.rivianservices.com/auth/api/v1/token/auth HTTP/1.1

{"username":"[email protected]","pwd":"Password123","source":"mobile","grant_type":"password","client_id":"rivian.mobile.sc12bjxe8lmhkul","client_secret":"rlL058p5kipkZr0C85KrdA4AZ0QBNVh75zXWwEWf"}

Use the access token to call APIs.

Not sure what this one actually does...

GET https://vehicle.rivianservices.com/rdata/api/v1/provision/get_all_invites?user_id=[userid]
Authorization: Bearer [token]

{"all_invites":{},"api":"/rdata/api/v1/provision"}

The mapping uses a separate auth but uses telanav
https://astrapena.telenav.com/entity/v4/search/json?locale=en-US&location=29.3859372%2C-81.372624&f.cat.list=771&limit=50

All the order stuff and the like is graphql queries against rivian.com

POST https://rivian.com/api/gql/orders/graphql/ HTTP/1.1

{"operationName":"vehicleOrders","variables":{},"query":"query vehicleOrders { searchOrders(input: {orderTypes: [PRE_ORDER, VEHICLE], pageInfo: {from: 0, size: 10000}}) { __typename data { __typename id state fulfillmentSummaryStatus items { __typename productDetails { __typename ... on VehicleProduct { sku } } } } } }"}

Sorry, not much useful. Would be easier if I had a truck to interact with. Still digging into it though.

Thanks for posting, this is encouraging, standard stuff like Oauth and JSON. Looking forward to hopefully using the API with my Universal Devices ISY994i Home Automation Controller once I get my R1S.



[Ladiver]

@kanundrum add me to the list of curious. Please



[LeoH]

Yeah it's a standard REST end points, so should not be that complicated. Unfortunately I do not have a vehicle yet but I did ask Rivian about API availability and they have ignored those emails, I even asked them on linkedin lol

I really want to be able to dig into the vehicle/API for accessibility reasons
