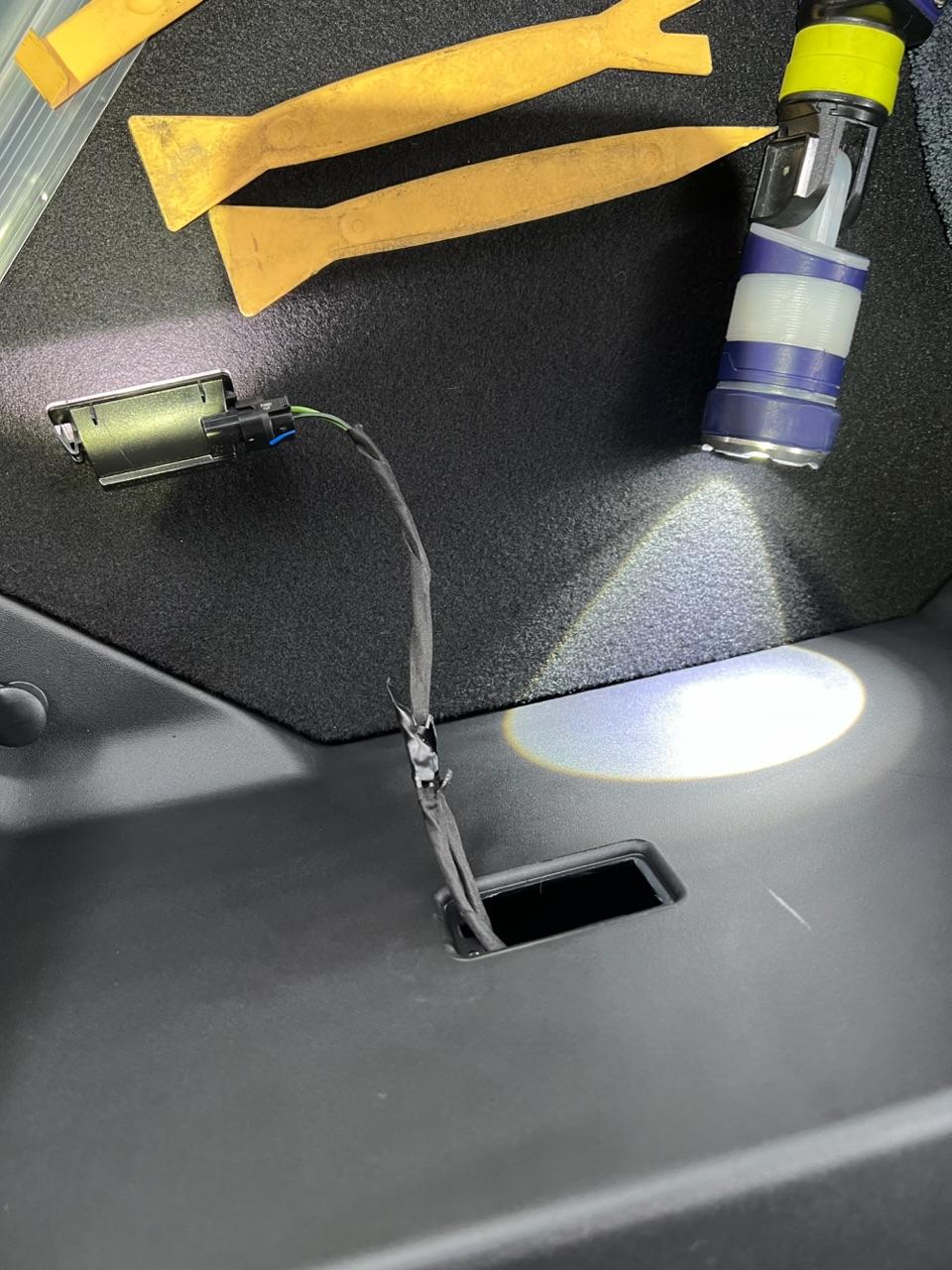

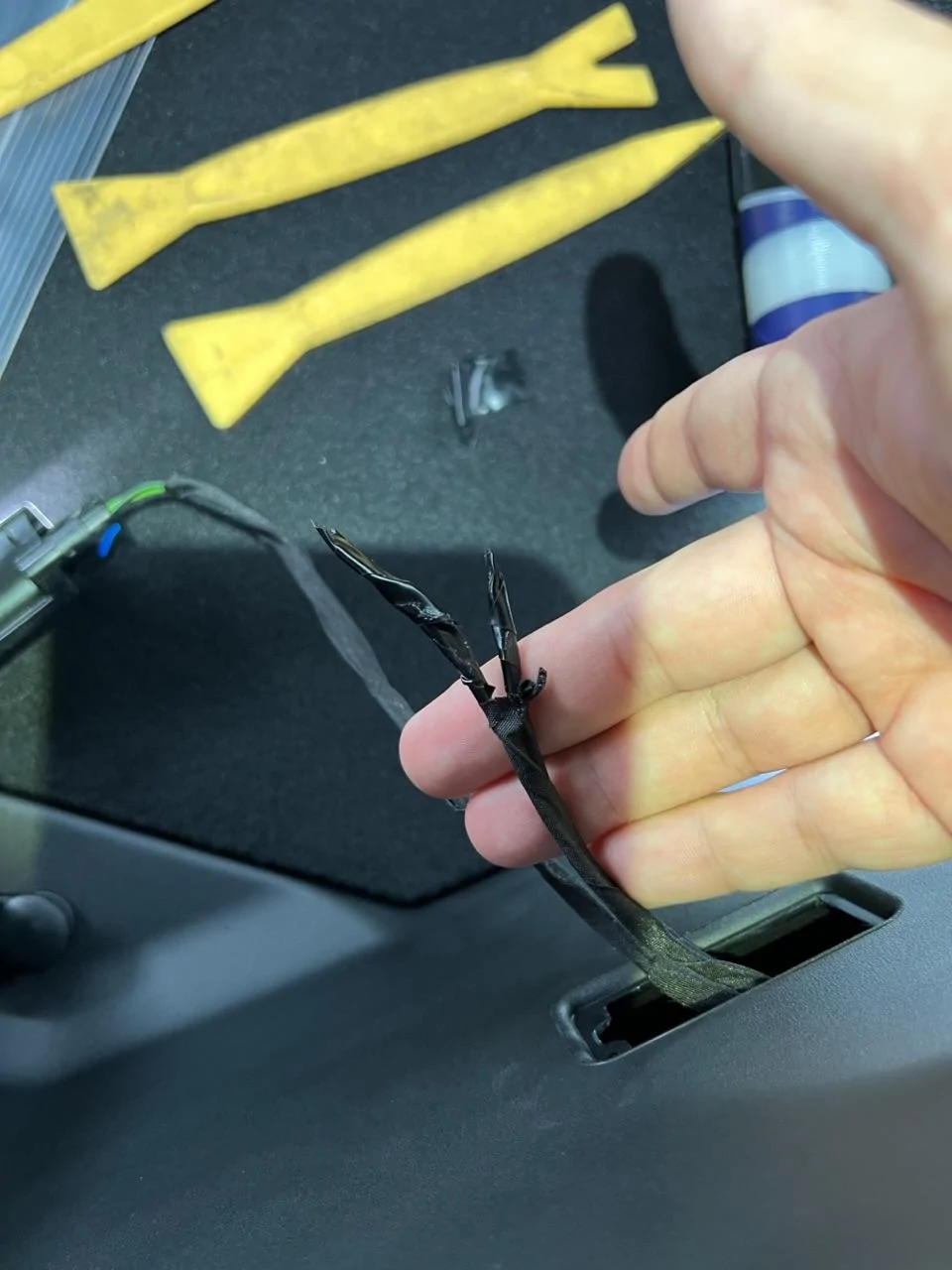

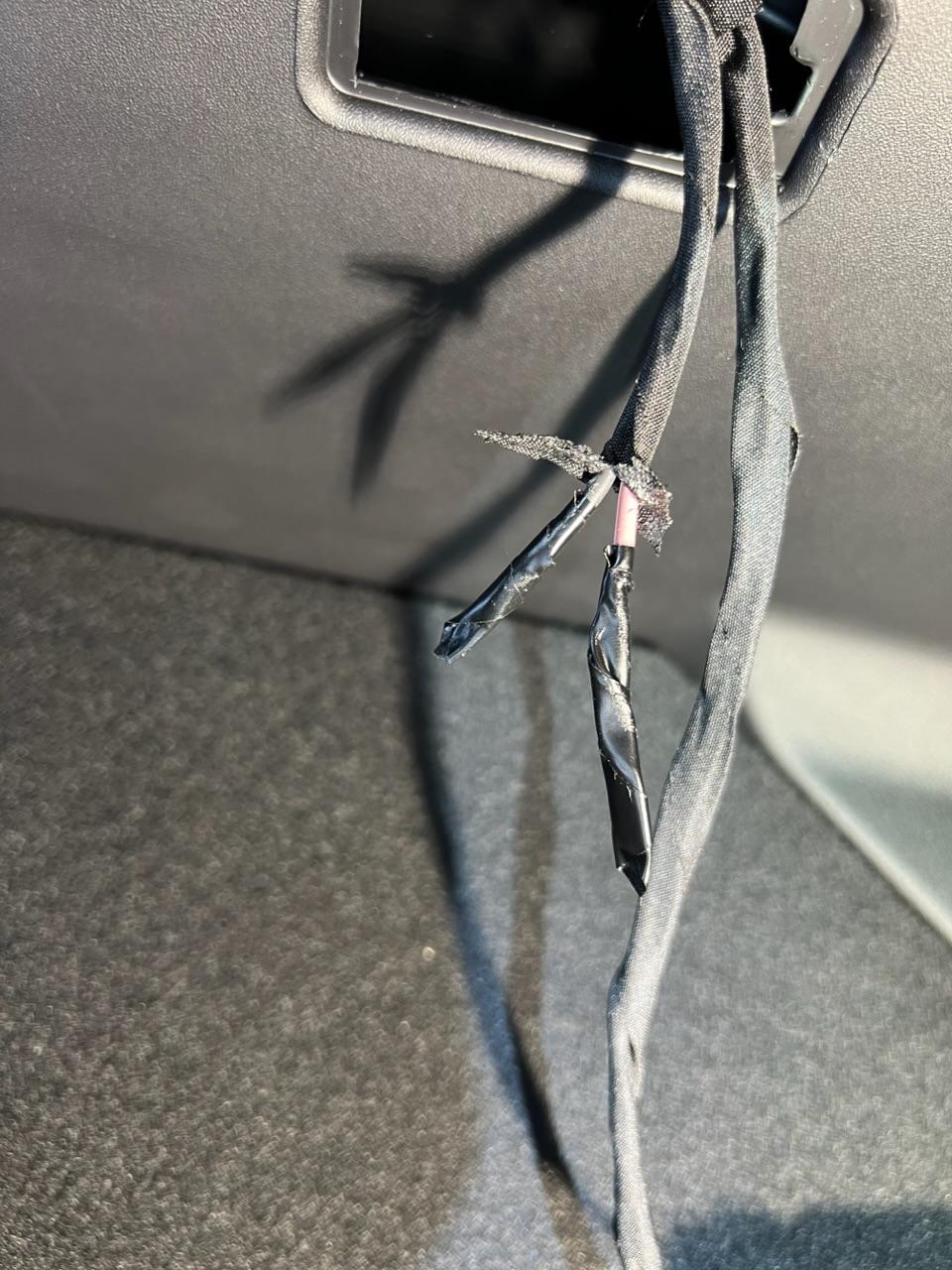

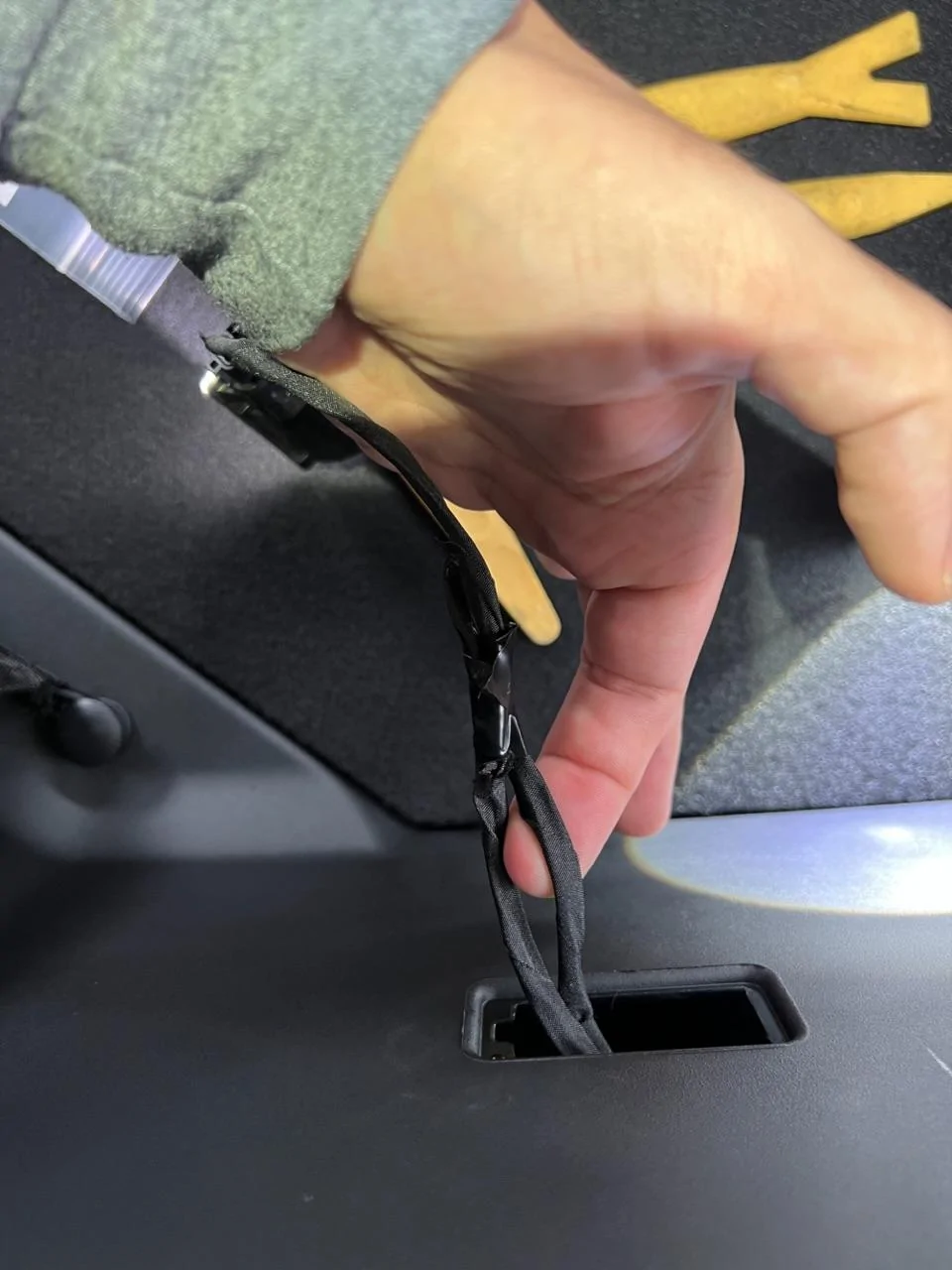

VIN 11919 and no 12V outlet. But I do have some good news... the wiring is there. It's bundled with the right LED frunk light. Looks like whatever connector they used was cut off (or yanked off, as bare copper strands were exposed) and "protected" with electrical tape. Probably the most shotty work I've seen in a brand new (modern) car :D

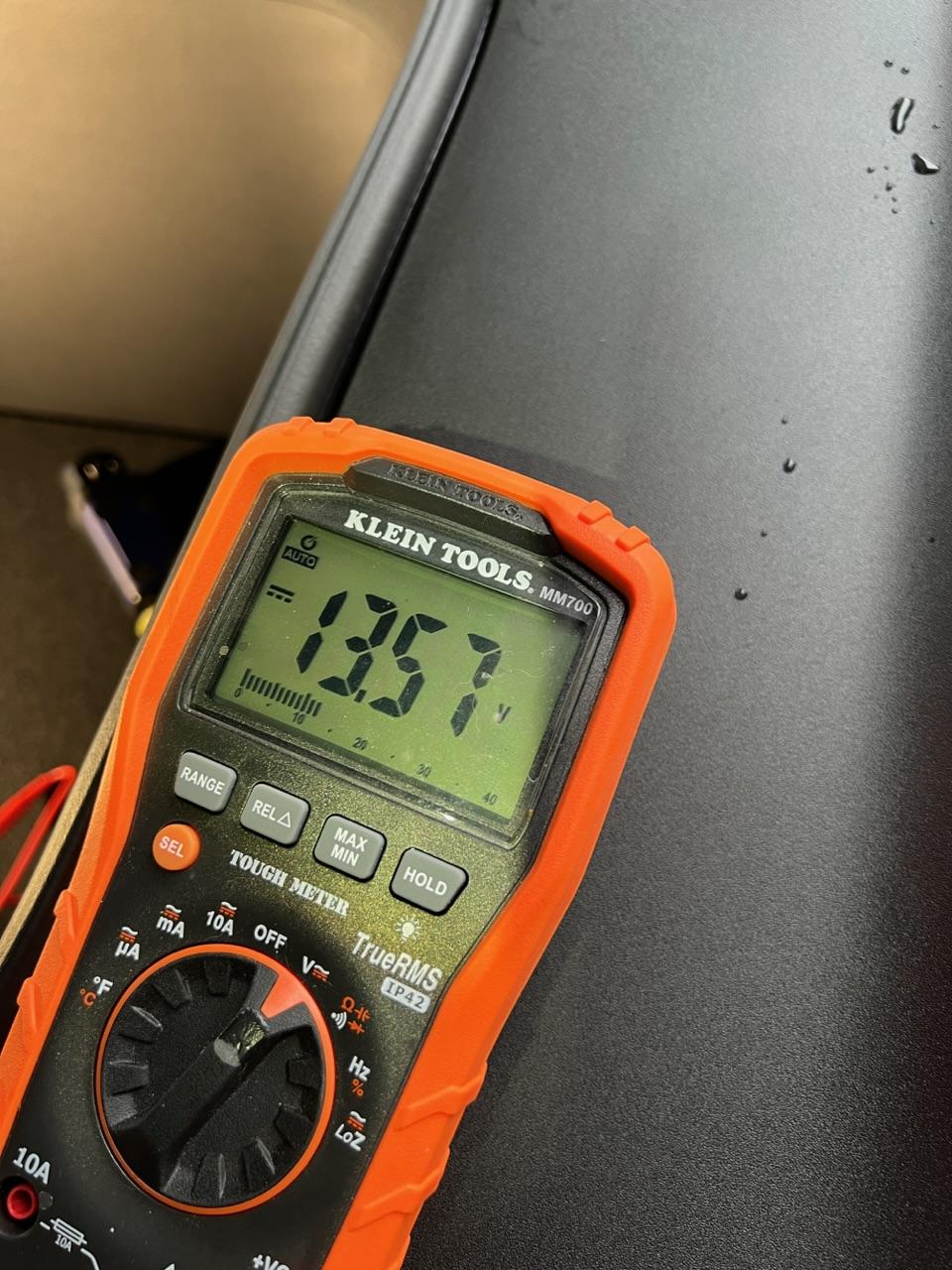

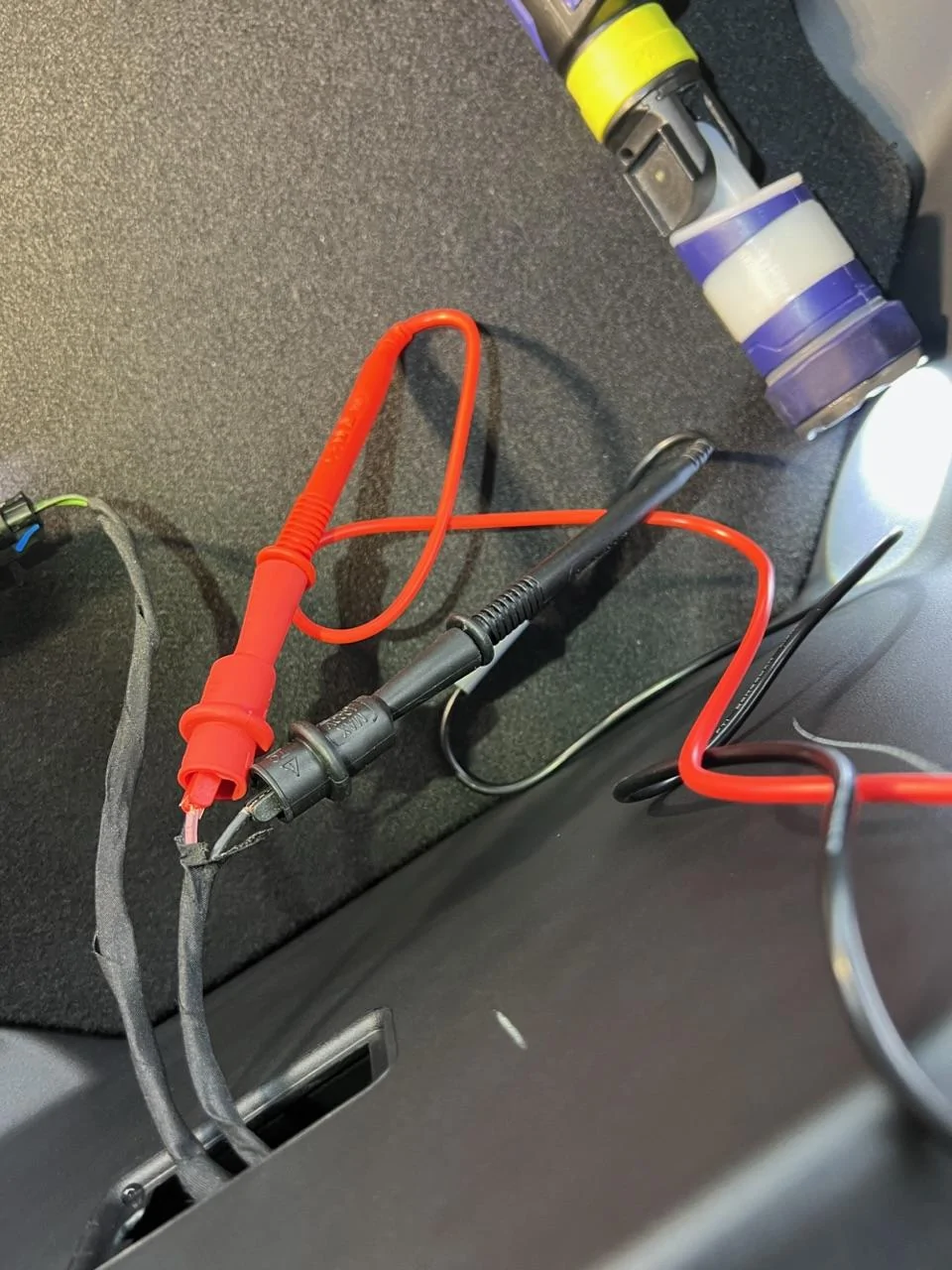

Anyway, here are some photos showing available wiring. This is good for us without the 12V outlet, as we can now use something like this or this, and mount as it was from the factory, or mount it on the frunk tub vertically.

PHOTOS





Seems like it would be trivial to re-add it. Won't be OEM but if you actually need to use it, that hardly matters.
Sponsored



connoisseurr

Well-Known Member
First Name
Connor
Joined
Oct 1, 2022
Threads
23
Messages
873
Reaction score
1,217
Location
Northern VA
Vehicles
22 R1T, 23 MYP
Occupation
I encrypt PDFs for Boomers
Clubs

Seems like it would be trivial to re-add it. Won't be OEM but if you actually need to use it, that hardly matters.
Totally - it definitely won't be an OEM Rivian-like installation, but I've found a few other OEM options that use some sort of harness connector, and not typical spade connectors. I even found that that used Deutsch connectors, as a last resort.


COdogman

Well-Known Member
First Name
Brian
Joined
Jan 21, 2022
Threads
29
Messages
7,423
Reaction score
19,907
Location
Colorado
Vehicles
2023 R1T
Occupation
Dog Wrangler
Has anyone who’s taken delivery recently checked to see if this wiring is still there? I’m curious if Rivian intends to keep installing it or if the goal was to remove the outlet and the wiring over time.


WattTruckMatt

Well-Known Member
First Name
Matt
Joined
Oct 4, 2021
Threads
6
Messages
289
Reaction score
444
Location
Austin
Vehicles
2022 Rivian R1T
Has anyone who’s taken delivery recently checked to see if this wiring is still there? I’m curious if Rivian intends to keep installing it or if the goal was to remove the outlet and the wiring over time.

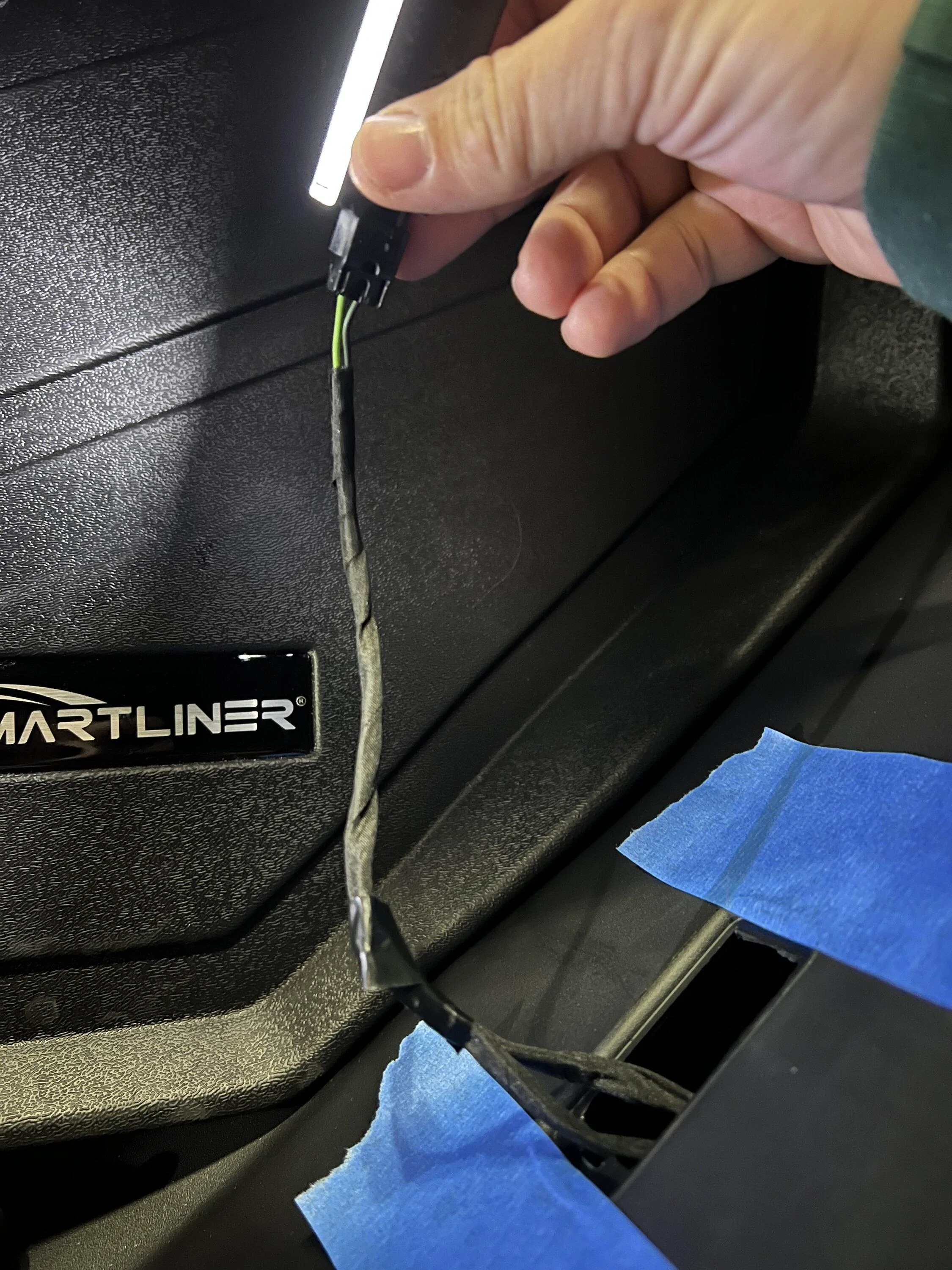

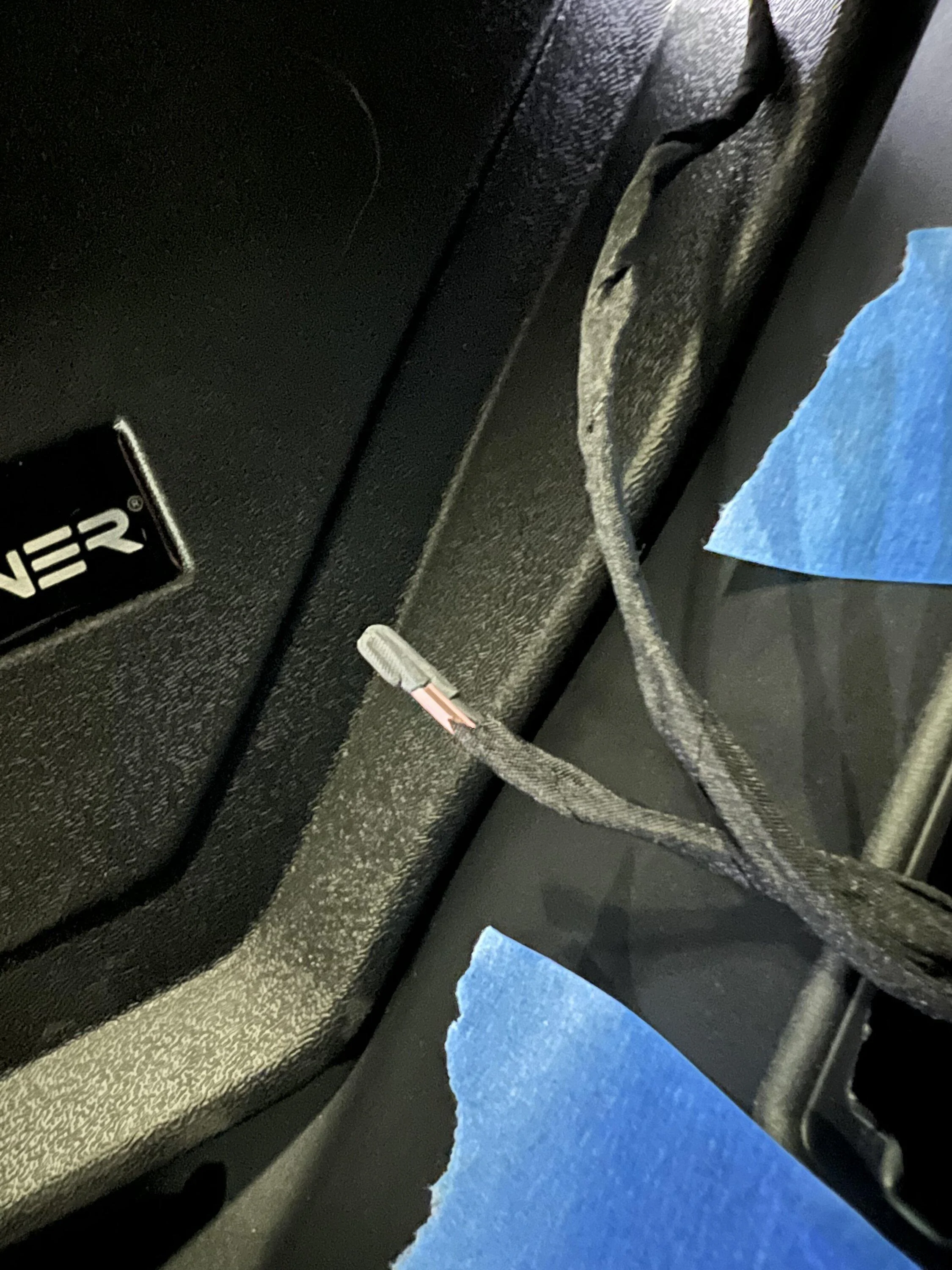

R1T VIN 12375 here. Can confirm wiring is still there. I’ll be retrofitting an outlet.

Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T 3480F433-80E5-43A5-905E-B8BC7BD5B47B
Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T C324AD9A-ED04-4E6E-A258-DAB2A7A814E0


Sponsored

COdogman

Well-Known Member
First Name
Brian
Joined
Jan 21, 2022
Threads
29
Messages
7,423
Reaction score
19,907
Location
Colorado
Vehicles
2023 R1T
Occupation
Dog Wrangler
R1T VIN 12375 here. Can confirm wiring is still there. I’ll be retrofitting an outlet.

Thank you! Should be a pretty simple job but if you are able to share how you finish your outlet I’d love to see it.


WattTruckMatt

Well-Known Member
First Name
Matt
Joined
Oct 4, 2021
Threads
6
Messages
289
Reaction score
444
Location
Austin
Vehicles
2022 Rivian R1T
Thank you! Should be a pretty simple job but if you are able to share how you finish your outlet I’d love to see it.
If only we could find out where Rivian sources their 12V outlets...

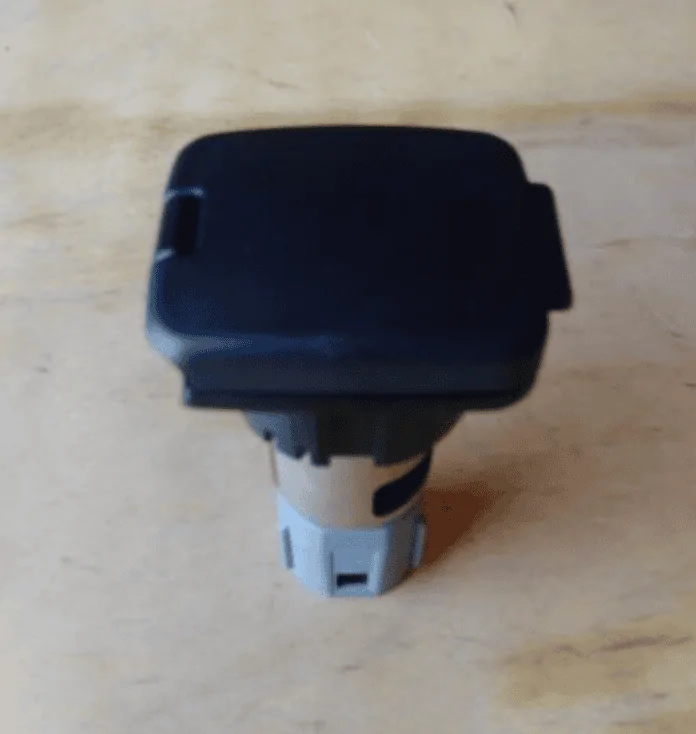

I found this OEM Ford outlet for $20 on eBay. Closest thing to OEM Rivian I could find.

Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T Screen Shot 2022-11-12 at 1.52.43 PM

Last edited:

Acoustic71

Well-Known Member
First Name
Bob
Joined
Sep 26, 2021
Threads
14
Messages
793
Reaction score
1,011
Location
Oregon
Vehicles
Volvo XC70; 2022 Rivian R1T
Occupation
Project Manager

popoga

Well-Known Member
Joined
Mar 24, 2022
Threads
6
Messages
196
Reaction score
284
Location
USA
Vehicles
FG R1T, '18 Impreza, '10 Triumph Bonneville
Occupation
Potato Farmer
Clubs

VIN 11919 and no 12V outlet. But I do have some good news... the wiring is there. It's bundled with the right LED frunk light. Looks like whatever connector they used was cut off (or yanked off, as bare copper strands were exposed) and "protected" with electrical tape. Probably the most shotty work I've seen in a brand new (modern) car :D

Anyway, here are some photos showing available wiring. This is good for us without the 12V outlet, as we can now use something like this or this, and mount as it was from the factory, or mount it on the frunk tub vertically.

PHOTOS





This *is* promising. Are the lights fastened in such a way that removing them would pose any difficulty? When you say 'right', do you mean driver's side (right when you're looking at the frunk) or passenger side (right if you're the truck)?

I'm pretty keen to throw this in as a small mod if mine (12xxx) has the wiring, but am slightly worried about poking holes in a truck with <200 mi on it - or worse, voiding some aspect of the warranty.

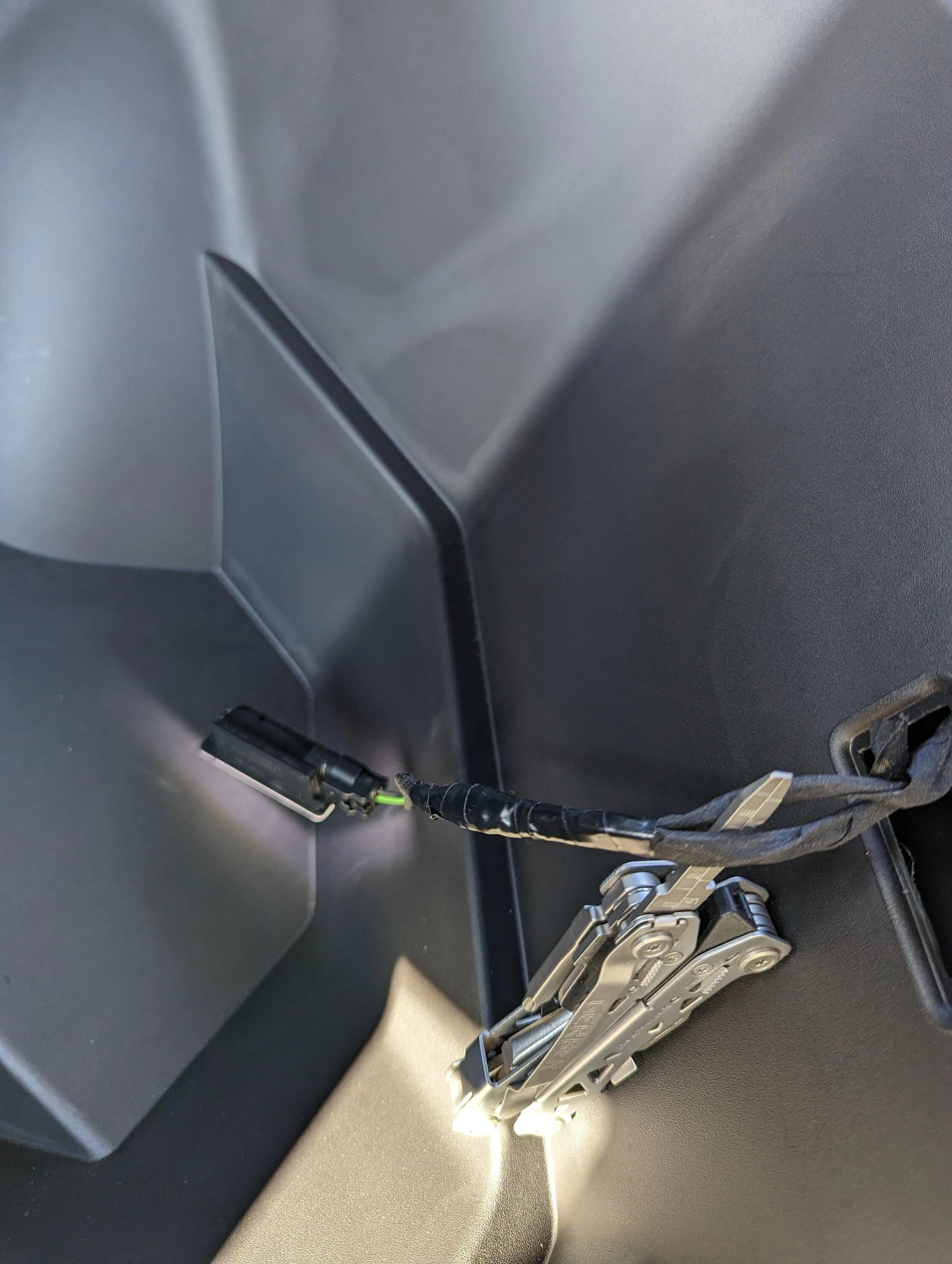

Quick edit, since the light turned out to be pretty obvious and straightforward:

Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T PXL_20221113_214246510

Last edited:

Sponsored

Ralph

Well-Known Member
First Name
Ralph
Joined
Jun 14, 2021
Threads
1
Messages
604
Reaction score
610
Location
Arkansas
Vehicles
R1T, Outback
I wish they would communicate these changes clearly and share the justification/rationale behind them.

We can all speculate on why and how much it saves them per truck, but a little transparency here would go a long way.
Agreed.

For example the elimination of the 12v could be as simple as Rivian contracting for the tub from a different vendor and supplying an outdated spec/drawing. If no one realized a simple mistake until the parts showed up it might have been either delete by clipping the wire or delaying production.

The way the wire has been handled the delete does not *appear* to have been planned. At least not well implemented.

Lack of timely information leads to all sorts of speculation (including the above) and problems. Rivian is most certainly not alone in what appears to be their belief that the "truth" is more painful than the resultant speculation.

They are wrong and there are (rare) exceptions in the world. Rivian could still be one if they desired.


WattTruckMatt

Well-Known Member
First Name
Matt
Joined
Oct 4, 2021
Threads
6
Messages
289
Reaction score
444
Location
Austin
Vehicles
2022 Rivian R1T

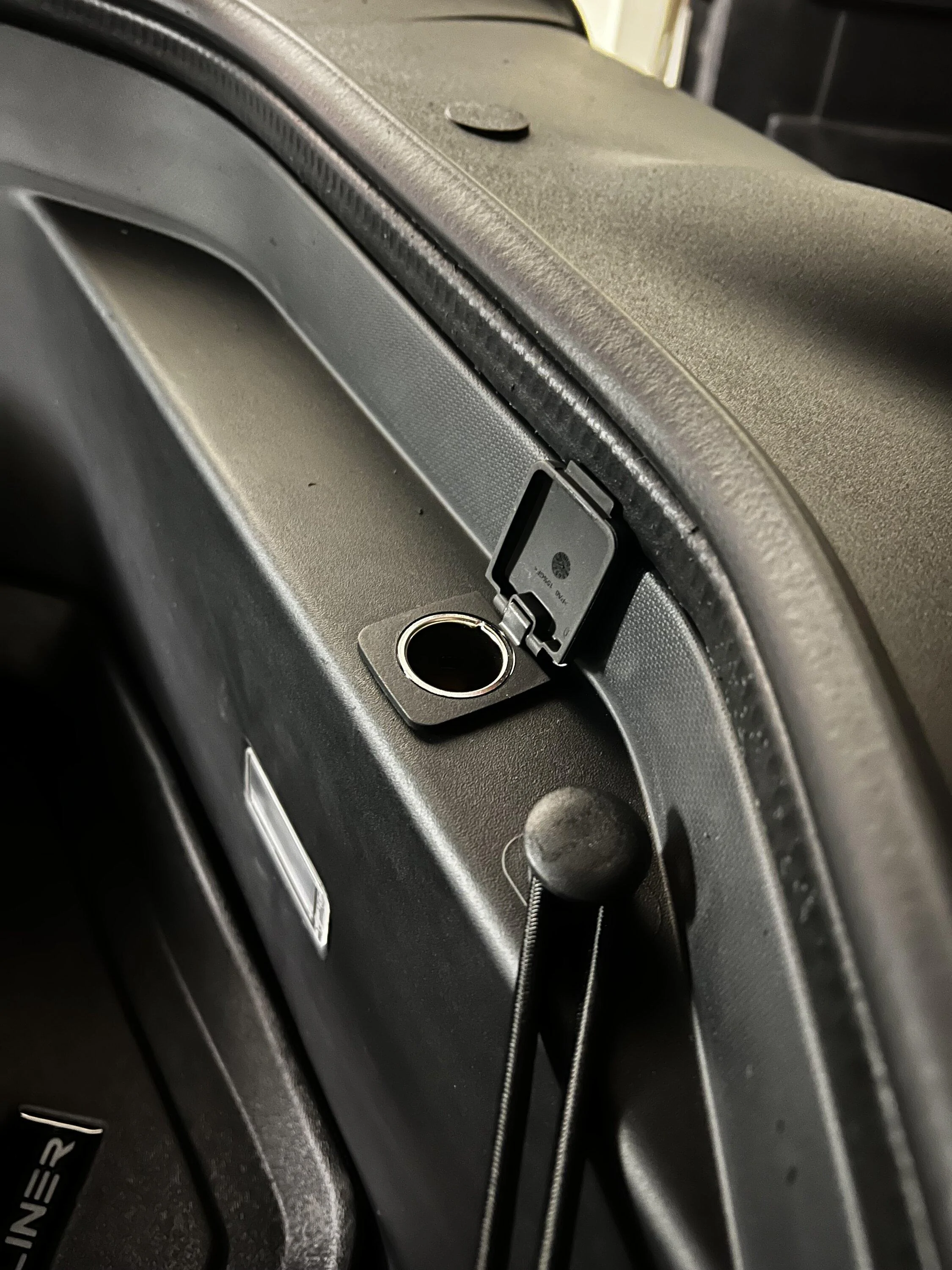

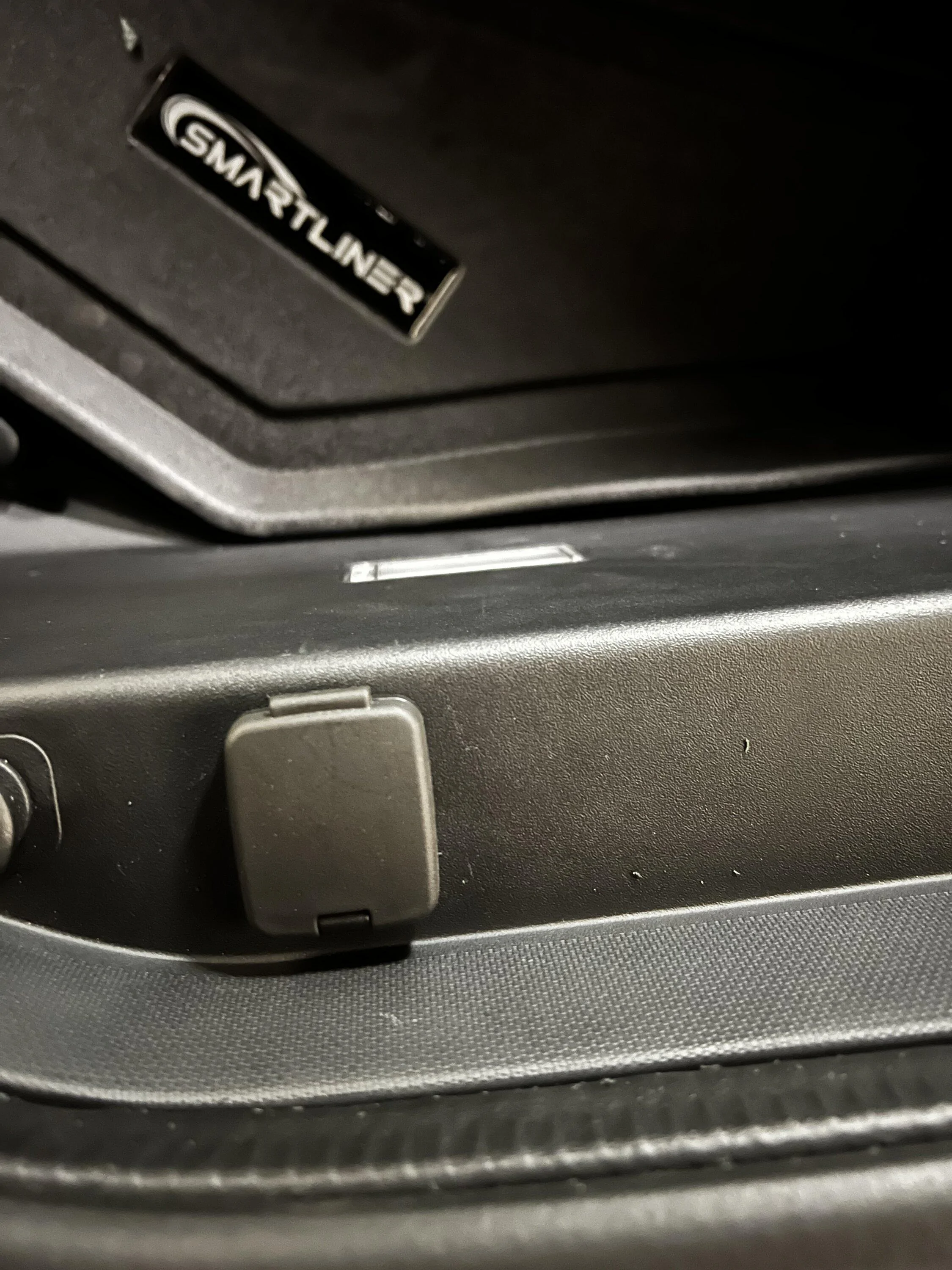

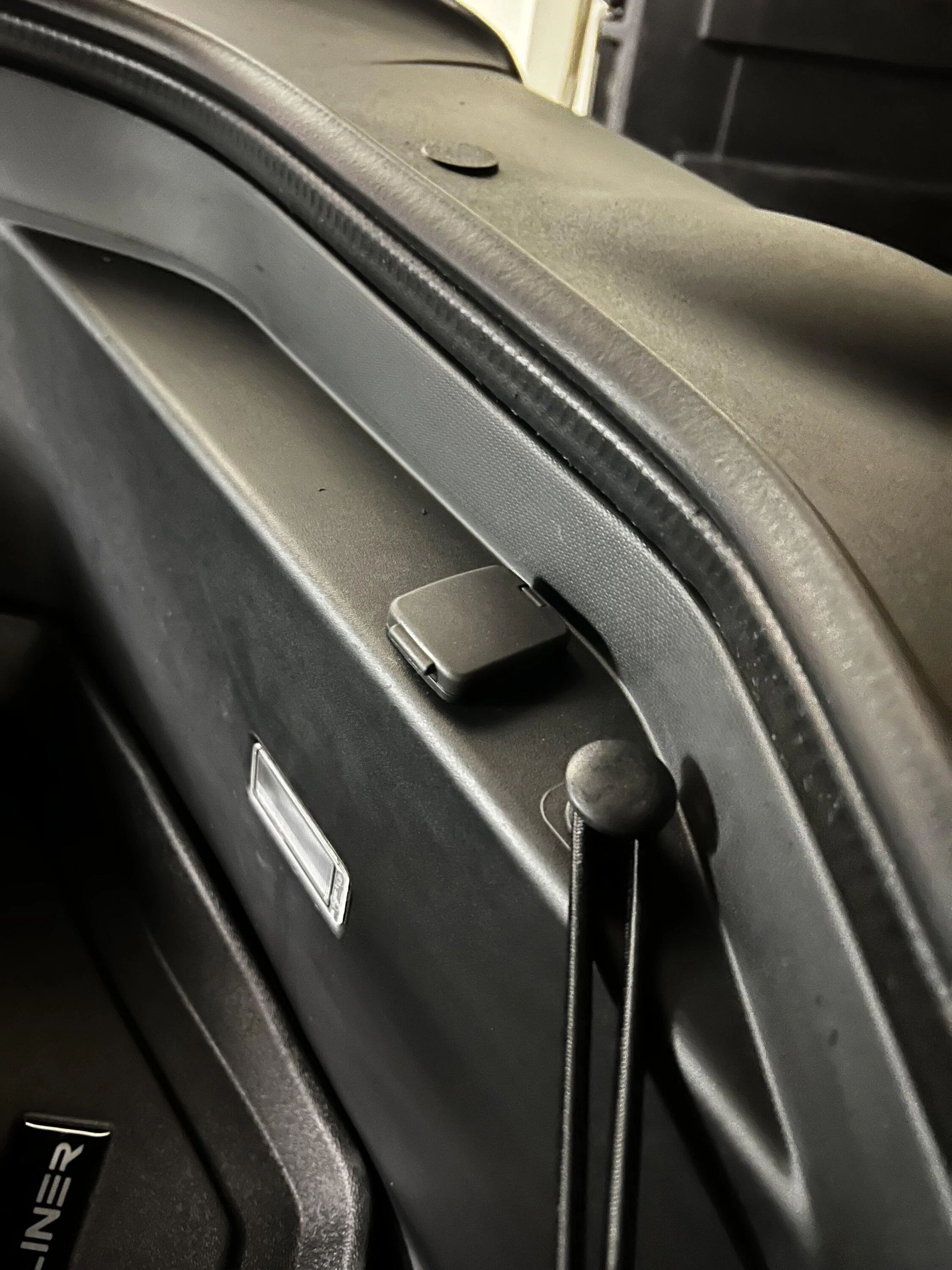

UPDATE: 12V Outlet delivered and installed.

I'm waiting to receive the OEM pigtail I ordered. It will be as close to OEM as I can make it.

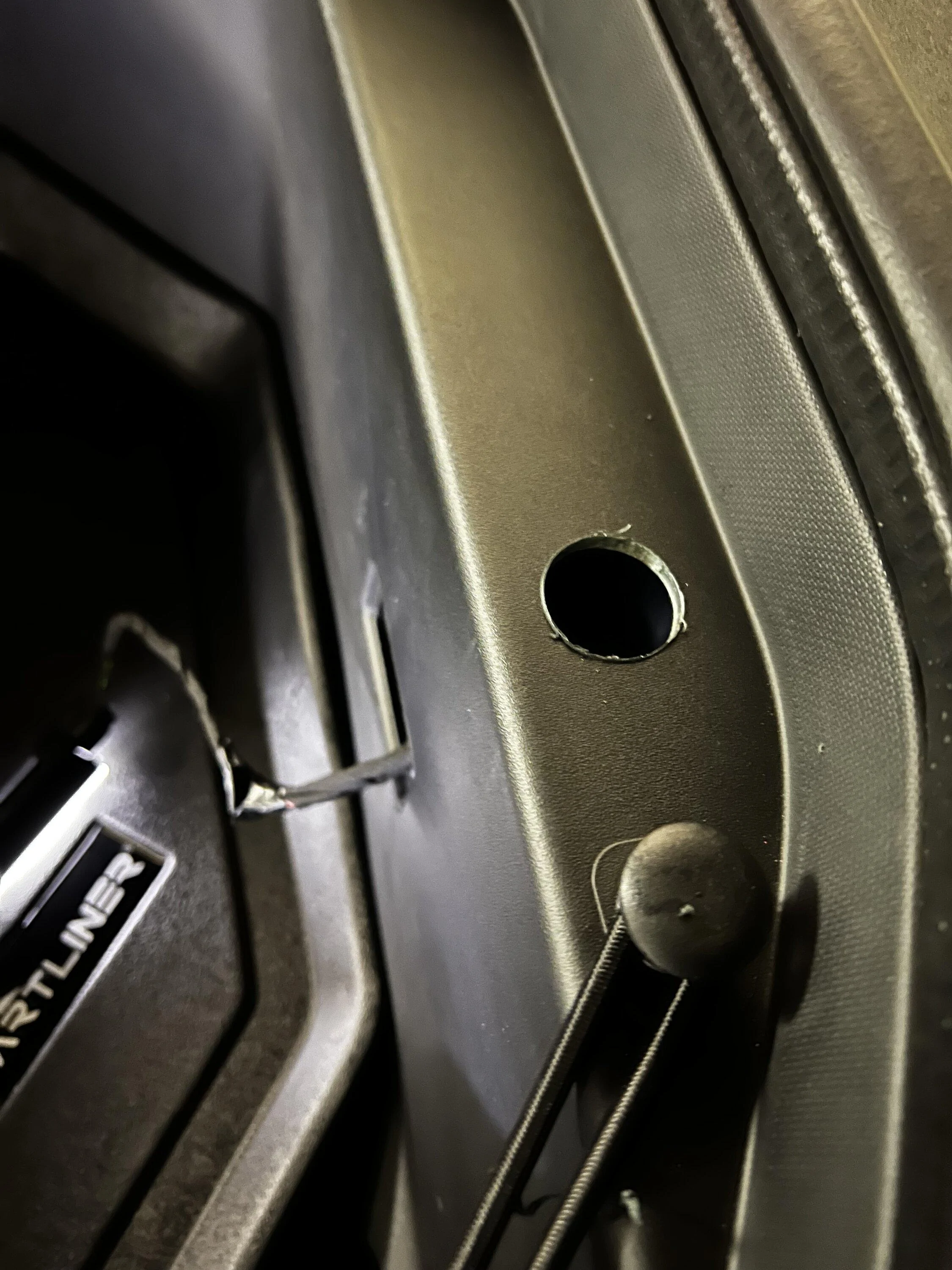

BE CAREFUL where you drill your hole! Where I put mine is as close to the left when looking over it as you want to be. It's about where I could tell the Rivian one is located. There is a plastic separator below just to the left, on the inside. You will drill into it if you go too far left. Hope that makes sense... I'm not liable if you drill incorrectly...

Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T IMG_1276
Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T IMG_1277
Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T IMG_1278
Rivian R1T R1S Rivian updates website: Two 12v outlets now (none in frunk) for R1T IMG_1279


godfodder0901

Well-Known Member
First Name
Jared
Joined
Mar 12, 2019
Threads
24
Messages
3,320
Reaction score
6,267
Location
Washington
Vehicles
2004 Honda Civic EX, 2022 Rivian R1T LE
UPDATE: 12V Outlet delivered and installed.

I'm waiting to receive the OEM pigtail I ordered. It will be as close to OEM as I can make it.

BE CAREFUL where you drill your hole! Where I put mine is as close to the left when looking over it as you want to be. It's about where I could tell the Rivian one is located. There is a plastic separator below just to the left, on the inside. You will drill into it if you go too far left. Hope that makes sense... I'm not liable if you drill incorrectly...

Doing God's work! Well done, sir!

Do you mind posting part numbers and product information for others who may want to untertake this upgrade?


WattTruckMatt

Well-Known Member
First Name
Matt
Joined
Oct 4, 2021
Threads
6
Messages
289
Reaction score
444
Location
Austin
Vehicles
2022 Rivian R1T
Doing God's work! Well done, sir!

Do you mind posting part numbers and product information for others who may want to untertake this upgrade?
I chose these two parts and they happen to be for 2 car brands but the pigtail looks to be an exact fit. I imagine they all use the same manufacturers for this stuff.

12V Outlet: GENUINE FORD EXPLORER CENTER CONSOLE 12V POWER OUTLET WITH BLACK TRIM (No part number)
Pigtail: 1997 - 2020 GM Center Dash Bezel Cigarette Lighter PIGTAIL WIRE - 25776667


AYAYRON

Well-Known Member
First Name
Aaron
Joined
Nov 17, 2022
Threads
4
Messages
274
Reaction score
250
Location
Dallas Tx
Vehicles
r1t
Yes, good point. Everyone who has had the 12v removed has this new magnet design. I concur it feels pretty strong so no complaints there.
What do you have if not the magnet, and what's the purpose of the magnet, just to hold the carpeted cover down?
