Tire pressure question for the experts

hekhl00

Well-Known Member
Joined
Oct 24, 2022
Threads
7
Messages
167
Reaction score
371
Location
FL
Vehicles
R1T Rivian Blue Ocean Coast Adventure Package
Today I had Atomic's AW10s installed on my R1T along with Micheline Defender LTX M/S2 tires in 275/60/20. ( I previously had the stock 21s). The new setup looks and rides fantastic. Discount Tire inflated the Defenders to 45 psi and this is verified by the TPMS, which is throwing off an alert because it's below the recommended 49 psi.
So is that the optimal psi? And if it is, is there a way to get the truck to recognize that as the desired level so it stops throwing off the warning? Thanks!
Sponsored



jjswan33

Well-Known Member
First Name
Joshua
Joined
Sep 17, 2021
Threads
134
Messages
4,440
Reaction score
9,794
Location
Sandy, OR
Vehicles
Rivian R1T LE, Hyundai Ioniq 5 Limited
Occupation
Engineer
Clubs

I think those tires have the same weight profile as the OEM 20" tires right? Quick search says they can take 50psi so I would suggest inflating them to 48psi cold.

No reason to run lower than that.


Electrified Outdoors

Well-Known Member
Site Sponsor
First Name
Ken
Joined
Jan 30, 2023
Threads
58
Messages
3,380
Reaction score
3,650
Location
Mount Airy, Maryland
Website
www.ElectrifiedOutdoors.com
Vehicles
2024 Rivian R1S Quad, 2024 Silverado EV RST First Edition, R2 Reservation
Occupation
Real Estate
Clubs

I not an expert but...48 psi is what Rivian recommends. That's cold pressure. Since this is a light truck tire, some on this forum are suggesting running a higher PSI.

Pics please 😎


ksurfier

Well-Known Member
First Name
Ken
Joined
Aug 23, 2022
Threads
33
Messages
884
Reaction score
803
Location
CA
Vehicles
R1SQM, Tesla
Occupation
Fake Science Lead
Clubs

Min 48 PSI
Max 50 PSI
These are cold pressures, it's ok if hot pressures are 2-4 psi above max (so 53-55 max).


Sponsored

OP
OP

hekhl00

Well-Known Member
Joined
Oct 24, 2022
Threads
7
Messages
167
Reaction score
371
Location
FL
Vehicles
R1T Rivian Blue Ocean Coast Adventure Package
Thanks everyone. I’ll take it back up to 48 psi.
As requested……..

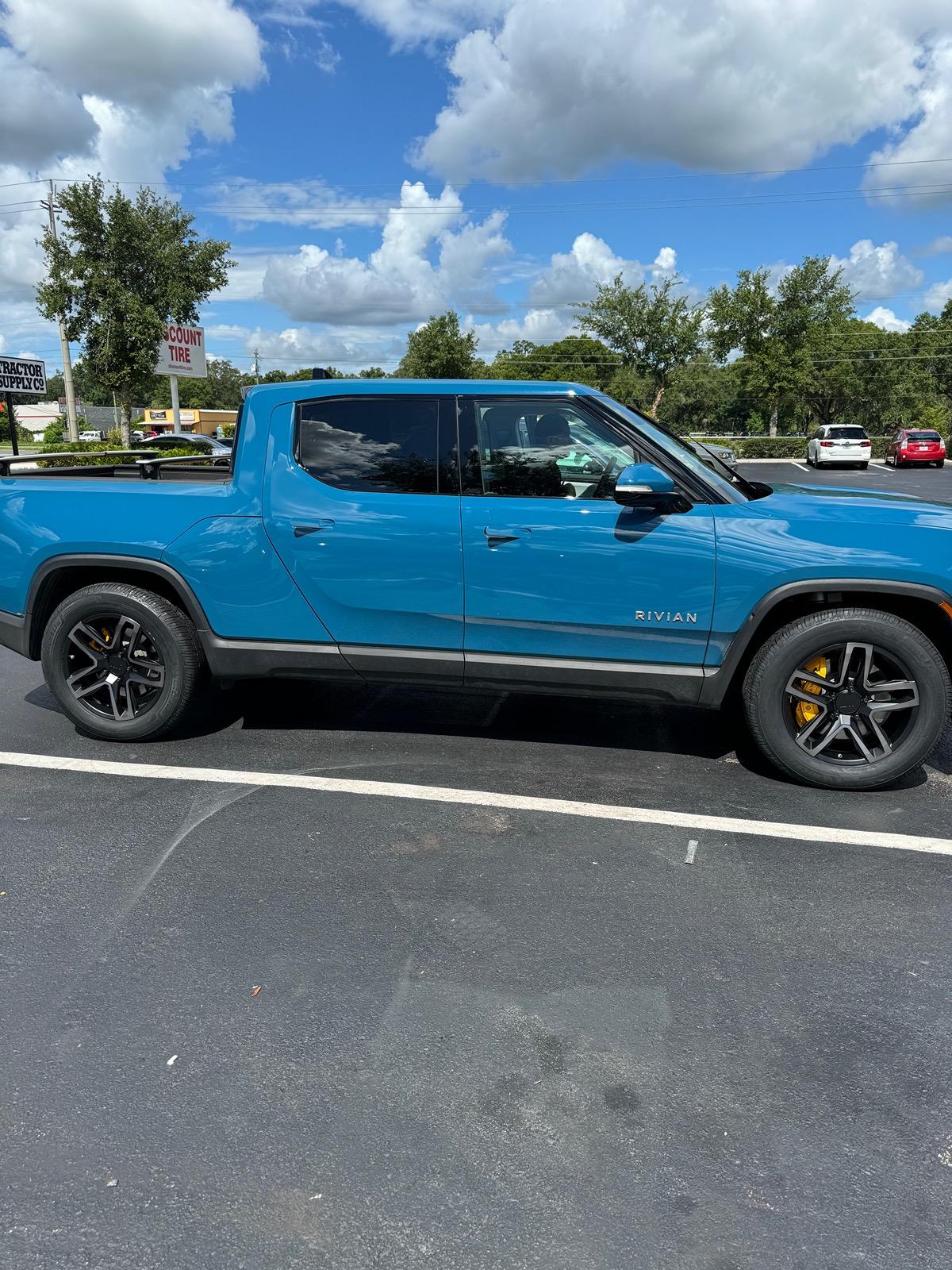

Rivian R1T R1S Tire pressure question for the experts IMG_2239

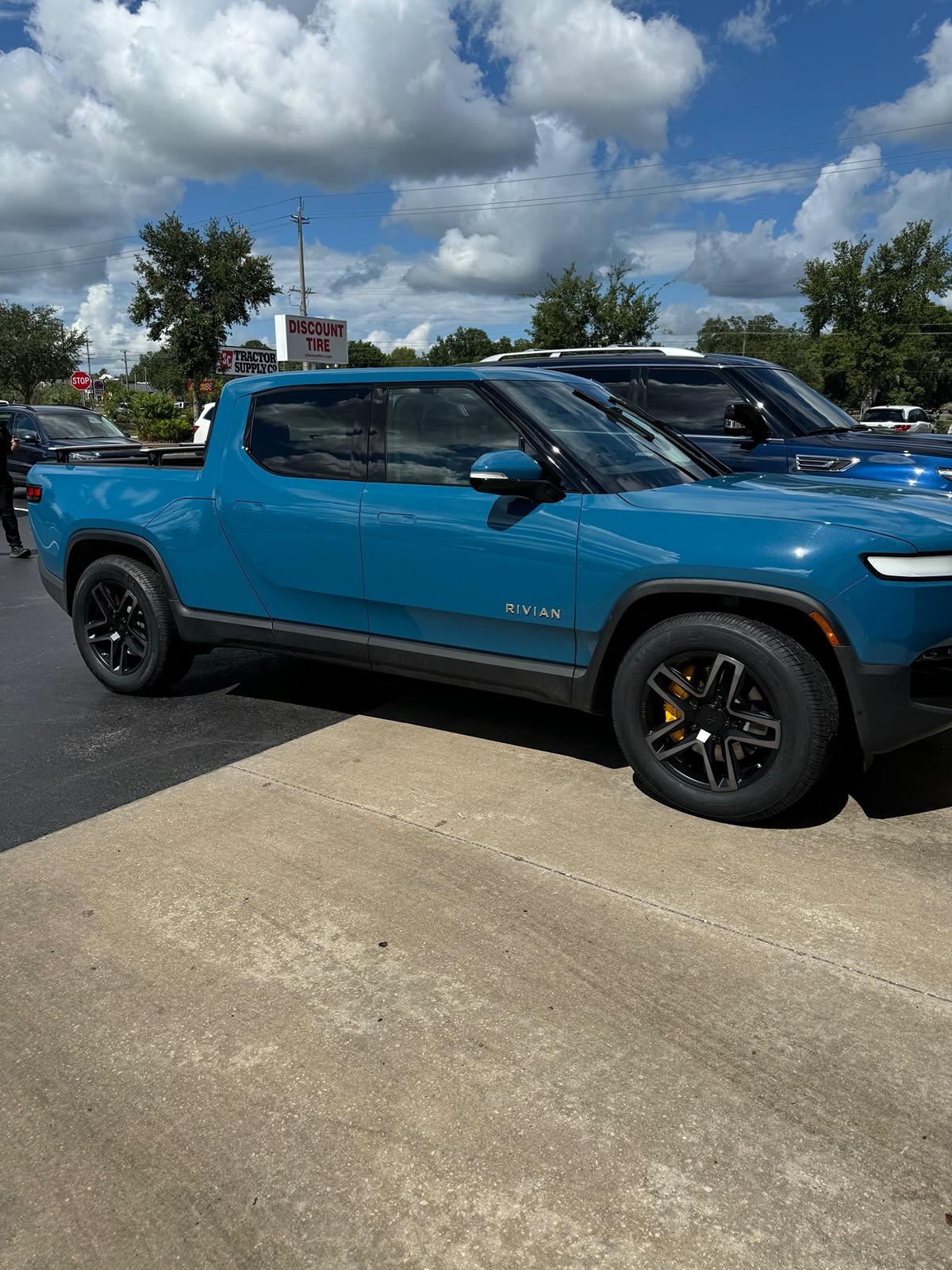

Rivian R1T R1S Tire pressure question for the experts IMG_2238

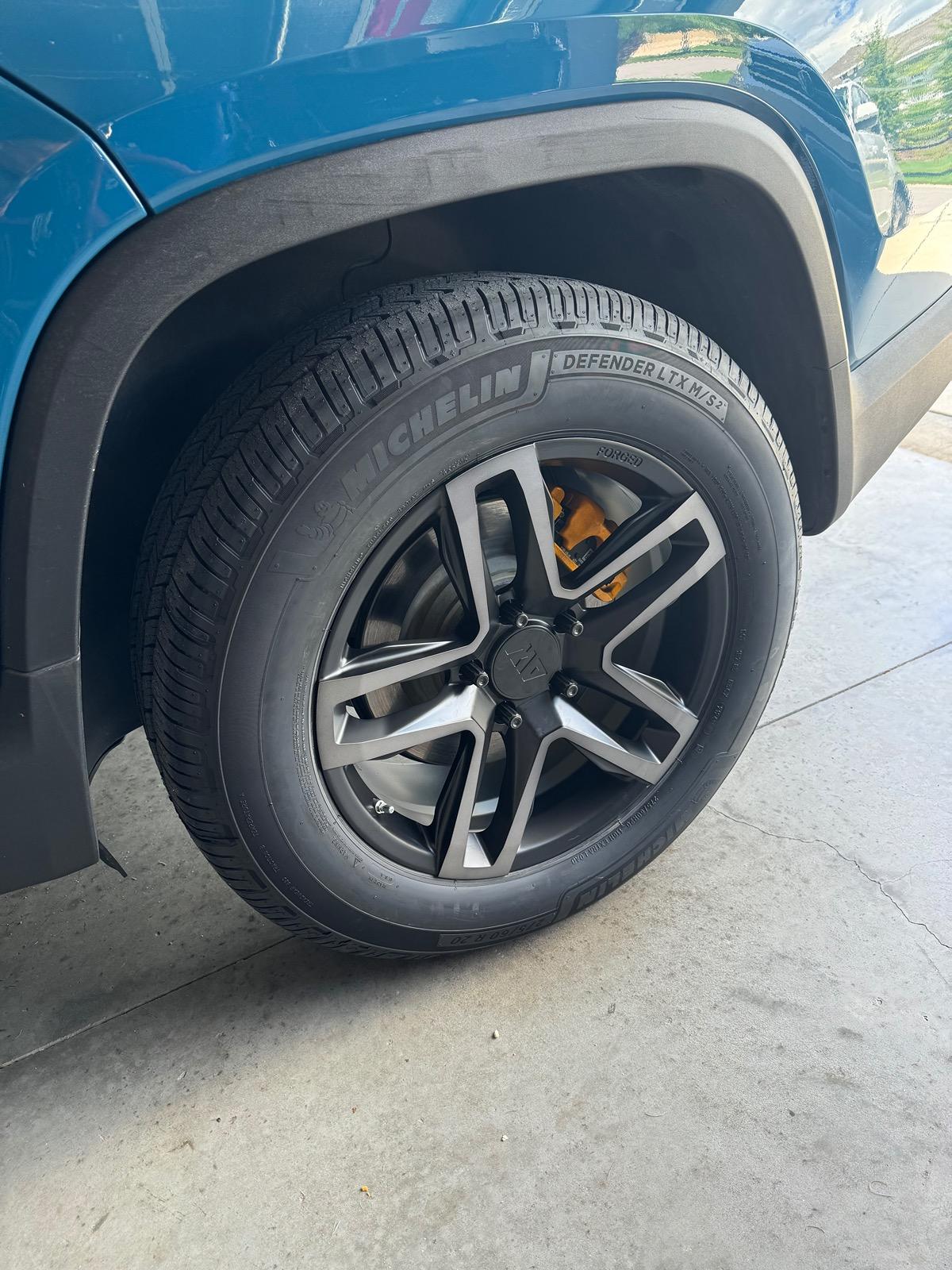

Rivian R1T R1S Tire pressure question for the experts IMG_2242


ksurfier

Well-Known Member
First Name
Ken
Joined
Aug 23, 2022
Threads
33
Messages
884
Reaction score
803
Location
CA
Vehicles
R1SQM, Tesla
Occupation
Fake Science Lead
Clubs

Thanks everyone. I’ll take it back up to 48 psi.
As requested……..





Those look nice! I think the Defender is the best tire to get for handling/efficiency/treadwear, please report back once you have some data, here's detail on tire pressure, load, and the tread diameter in contact with the ground (contact patch) - 48 PSI is to maximize efficiency by minimizing the contact patch diameter:
Load (116)PSI8500825080007750750072507000
2755​
50​
6.56.46.36.26.16.05.9
2755​
48​
6.76.66.56.46.36.16.0
2755​
46​
6.86.76.66.56.46.36.2
2755​
44​
6.96.86.76.66.56.46.3
2755​
42​
7.17.06.96.86.76.66.5
2704​
41​
7.27.17.06.96.86.66.5
2652​
40​
7.37.27.17.06.86.76.6
2550​
38​
7.57.47.37.17.06.96.8


Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
96
Messages
5,167
Reaction score
8,379
Location
Kitsap, WA
Vehicles
R1T
Clubs

48 PSI OR BUST

Min 48 PSI
Max 50 PSI
These are cold pressures, it's ok if hot pressures are 2-4 psi above max (so 53-55 max).
My friend accidentally inflated one of his same tires to 65 PSI recently (as read by the truck) and immediately pulled over to deflate when he did that. He now owns a manual gauge and doesn't rely on the truck anymore.


LL75

Well-Known Member
First Name
lance
Joined
Sep 21, 2022
Threads
36
Messages
1,516
Reaction score
1,087
Location
Dallas
Vehicles
Tesla Model 3
Yeap Your discount tires should have put it at 48 psi. They did that on my general grabber HTS 60 with the same max psi of 51 like yours. I'm running mine at 49 currently


kong

Well-Known Member
Joined
Oct 26, 2023
Threads
7
Messages
141
Reaction score
188
Location
New York
Vehicles
Rivian R1S
Occupation
Sales
Reviving this thread. I have an Atturo Trail Blade ATS 275/50R22 on order which appears to have a max PSI of 40 (based on their website). Has anyone pumped these up to 48 without issue? Or do I need to live with TPMS errors at 40? Lol!


Sponsored

LL75

Well-Known Member
First Name
lance
Joined
Sep 21, 2022
Threads
36
Messages
1,516
Reaction score
1,087
Location
Dallas
Vehicles
Tesla Model 3
Reviving this thread. I have an Atturo Trail Blade ATS 275/50R22 on order which appears to have a max PSI of 40 (based on their website). Has anyone pumped these up to 48 without issue? Or do I need to live with TPMS errors at 40? Lol!
Wow. Max pressure at 40? What make you decided to go with this tire?


kong

Well-Known Member
Joined
Oct 26, 2023
Threads
7
Messages
141
Reaction score
188
Location
New York
Vehicles
Rivian R1S
Occupation
Sales
Wow. Max pressure at 40? What make you decided to go with this tire?
$175/tire, great reviews, 50k treadlife warranty, quiet, missed the part about max PSI before ordering 😑


kong

Well-Known Member
Joined
Oct 26, 2023
Threads
7
Messages
141
Reaction score
188
Location
New York
Vehicles
Rivian R1S
Occupation
Sales
$175/tire, great reviews, 50k treadlife warranty, quiet, missed the part about max PSI before ordering 😑
In my defence, each size of this tire has different max PSIs. I saw 80 for a size and took it as gospel for all sizes.


SANZC02

Well-Known Member
First Name
Bob
Joined
Feb 11, 2021
Threads
40
Messages
6,453
Reaction score
10,998
Location
California
Vehicles
Tesla Model S, LE - R1S
Occupation
Retired
Wow. Max pressure at 40? What make you decided to go with this tire?
Live with the warning, usually exceeding max by a couple of pounds is OK but that is exceeding by 20% before they heat up, just not worth the risk running that high. .


LL75

Well-Known Member
First Name
lance
Joined
Sep 21, 2022
Threads
36
Messages
1,516
Reaction score
1,087
Location
Dallas
Vehicles
Tesla Model 3
$175/tire, great reviews, 50k treadlife warranty, quiet, missed the part about max PSI before ordering 😑
Can't beat $175 a tire. There has to be a way to reprogram the tpms to a lower pressure
