Vehicle to Load dongle from charge port!

R1S-DMPerformance

Active Member
Joined
Sep 17, 2024
Threads
3
Messages
42
Reaction score
45
Location
San Diego
Vehicles
F150 Lightning, Model X, Rivian R1S
I really don't know what Rivian owner wouldn't want this.

If you own an R1S, as I do, and you go camping, as I do, and you want to run an extension cord to your tent, well unless you leave a window or door open...good luck.

There is no way to fully secure your vehicle while camping and running an extension cord to your tent for power, sure R1Ts have the outlets in the bed, but there is still no 240v so I would say R1T and R1S is really the same deal.

Why aren't any of you complaining to Rivian that we need them to make a dongle that plugs to the charge port and that supports 120v and 240v??

This is just a major let down thus far, since it's something that Rivian could do NOW, and all their vehicles are hardware capable to doing it, Gen1 or Gen2s.

So please, b1tch and moan to Rivian to get their a$$es on this.

We all complained that there was no way to quickly swap wheel setup in the vehicle, between street and AT wheels, and now we have it.

Lets do the same for a V2L dongle that supports 120v and 240v.

:captain:
Sponsored



Sponsored

R1TandMe

Well-Known Member
First Name
Mike
Joined
Aug 29, 2024
Threads
11
Messages
201
Reaction score
243
Location
Depends
Vehicles
R1T, Corvette, Lexus GS350, HD VRod
Occupation
Retired and loving it

vandy1981

Well-Known Member
Joined
Jul 25, 2023
Threads
20
Messages
730
Reaction score
1,411
Location
USA
Vehicles
2023 R1S PDM MP, 2019 Jaguar I-Pace HSE
Why aren't any of you complaining to Rivian that we need them to make a dongle that plugs to the charge port and that supports 120v and 240v??
It would be a nice feature for the R1, but it's not going to happen. As others have said there are ways to run extension cords from the interior outlets and still keep the vehicle secure.

The Gen1 and Gen2 R1's are not capable of exporting AC through the charge port. It can only output DC through the charge port and an external inverter will be required for V2L/V2H capabilities. The R2 will have this capability at launch, though.



Ric G

Well-Known Member
First Name
Ric
Joined
Jun 2, 2023
Threads
6
Messages
72
Reaction score
95
Location
Tarpon Springs, Florida
Vehicles
R1S, BMW E30M3, Suzuki SJ410, Mercedes EQB300
Occupation
Self Employed

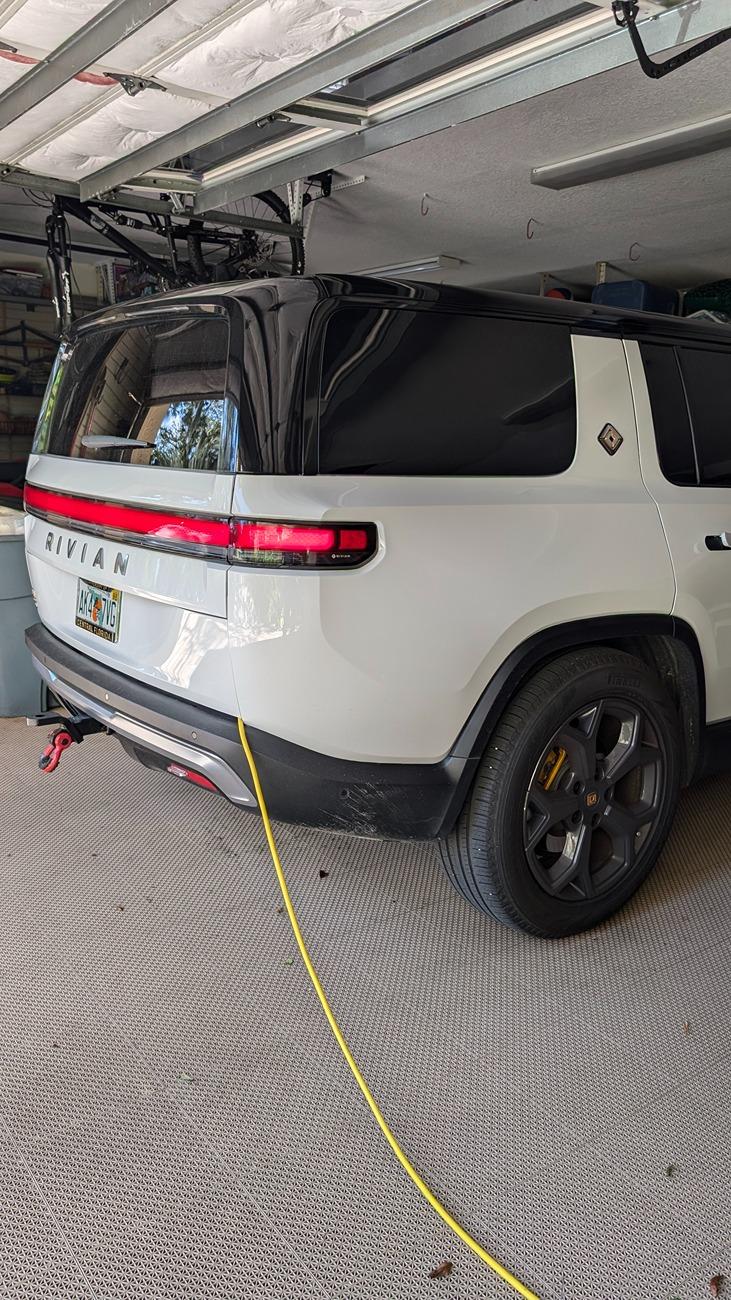

Worked perfectly for two days after the hurricane until power was restored. I just set the timer in the truck and was careful not to overload the circuit. Plugged in the fridge, router, wifi and a few small lamps.

Rivian R1T R1S Vehicle to Load dongle from charge port! PXL_20241010_163643018.MP

OP
OP

R1S-DMPerformance

Active Member
Joined
Sep 17, 2024
Threads
3
Messages
42
Reaction score
45
Location
San Diego
Vehicles
F150 Lightning, Model X, Rivian R1S
So that's the Jerry rigged method right, ok thanks for posting.

Another thought was to run it out the back passenger window and painters blue tape up the gap at the top of the window.

Running through the rear tail gate like that could potentially wear out the seals that prevent water coming in if you were to dip into 3 foot deep water crossings. Which the vehicle is officially rated for.


malditofman

Well-Known Member
First Name
David
Joined
Aug 14, 2024
Threads
5
Messages
567
Reaction score
680
Location
Rancho Cucamonga
Vehicles
R1T R2
I really don't know what Rivian owner wouldn't want this.

If you own an R1S, as I do, and you go camping, as I do, and you want to run an extension cord to your tent, well unless you leave a window or door open...good luck.

There is no way to fully secure your vehicle while camping and running an extension cord to your tent for power, sure R1Ts have the outlets in the bed, but there is still no 240v so I would say R1T and R1S is really the same deal.

Why aren't any of you complaining to Rivian that we need them to make a dongle that plugs to the charge port and that supports 120v and 240v??

This is just a major let down thus far, since it's something that Rivian could do NOW, and all their vehicles are hardware capable to doing it, Gen1 or Gen2s.

So please, b1tch and moan to Rivian to get their a$$es on this.

We all complained that there was no way to quickly swap wheel setup in the vehicle, between street and AT wheels, and now we have it.

Lets do the same for a V2L dongle that supports 120v and 240v.

:captain:
Whine Festival can stop any time. An extension cord can be routed with the R1S secure. If one needed 240, and Rivian was known not to offer it, then it terrible judgement to buy a Rivian. When tent camping on the ground the R1T actually makes more sense than the R1S for many. If sleeping in the vehicle is preferred, then the R1S makes sense for those campers. Most who camp just don't need 240. Most don't bring a welder with to Joshua Tree. Drive well.


Sponsored

OP
OP

R1S-DMPerformance

Active Member
Joined
Sep 17, 2024
Threads
3
Messages
42
Reaction score
45
Location
San Diego
Vehicles
F150 Lightning, Model X, Rivian R1S
Whine Festival can stop any time. An extension cord can be routed with the R1S secure. If one needed 240, and Rivian was known not to offer it, then it terrible judgement to buy a Rivian. When tent camping on the ground the R1T actually makes more sense than the R1S for many. If sleeping in the vehicle is preferred, then the R1S makes sense for those campers. Most who camp just don't need 240. Most don't bring a welder with to Joshua Tree. Drive well.
Not officially it cant, only Jerry rigged.

240v to fast charge my stark varg, 240v to charge another ev in distress, 240v to run a portable AC/heater while camping, etc etc etc. And yeah if you brake a tie rod while off roading, so you can weld it back up and be able to drive home.

It's a 100k+ ADVENTURE vehicle, whining continues until its officially addressed.


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
169
Messages
4,500
Reaction score
10,017
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
So that's the Jerry rigged method right, ok thanks for posting.

Another thought was to run it out the back passenger window and painters blue tape up the gap at the top of the window.

Running through the rear tail gate like that could potentially wear out the seals that prevent water coming in if you were to dip into 3 foot deep water crossings. Which the vehicle is officially rated for.
Geez, this is really grasping for straws for something to whine about.

As stated, Rivian's design does not provide the option to output AC from the charge port, and it's an added, unnecessary expense for the vast majority of owners. Make it an option (which they are working on via V2H).

You can half the diameter of the cord by using a flat appliance cord. Run it out 3 feet above ground. At any rate, this is not going to damage the seal.

Rivian R1T R1S Vehicle to Load dongle from charge port! 1742138646989-95

Last edited:

risingphoenix

Well-Known Member
Joined
Jul 12, 2024
Threads
1
Messages
256
Reaction score
410
Location
Colorado
Vehicles
R1S
Occupation
Professional micro manager

blturner

Well-Known Member
First Name
Brian
Joined
Jun 10, 2021
Threads
16
Messages
232
Reaction score
193
Location
Kansas City MO
Vehicles
Rivian R1T
Occupation
Space Pirate
Not officially it cant, only Jerry rigged.

240v to fast charge my stark varg, 240v to charge another ev in distress, 240v to run a portable AC/heater while camping, etc etc etc. And yeah if you brake a tie rod while off roading, so you can weld it back up and be able to drive home.

It's a 100k+ ADVENTURE vehicle, whining continues until its officially addressed.
I am in the same boat of wishing for 240v output. I would rarely need it but it would be nice. The 120v comes from an inverter located under the passenger seat. Having it on requires that the whole computer system be awake and running. It burns ~400 watts just being turned on. Enough to heat up the cabin. I use it for a mini fridge in the back seat. The mini fridge has to run more to compensate for the added heat of the inverter. Not ideal.

It would make sense that the 240v charge input should work in reverse, but because it converts the AC in to 400v DC to charge the car, it does it with electronics that don't work in reverse. It is not a simple transformer.


BCondrey

Well-Known Member
First Name
Barry
Joined
Dec 12, 2021
Threads
0
Messages
513
Reaction score
444
Location
Richmond, VA
Vehicles
R1T
Occupation
IT
The charge port doesn't support AC coming out of the vehicle. That isn't gonna happen. I'd rather buy my own flat extension cord and route it as others have indicated. Who needs another overpriced accessory?

When Rivian does provide V2H it will be with DC out from the truck, to an external inverter to provide AC to a panel via interlock or transfer switch. I suppose there could be a 240V outlet on the inverter. Or, maybe a smaller inverter just for 120/240 outlets.
