R2 Wheels Options, Tire Sizes, Width, Offset - Hub Bore Size - 19" and 20"

[Administrator]

The 2027 R2 has four different wheel options.

Width: 5x114.3
Offset: +38 offset
Hub Bore Size: 64.141

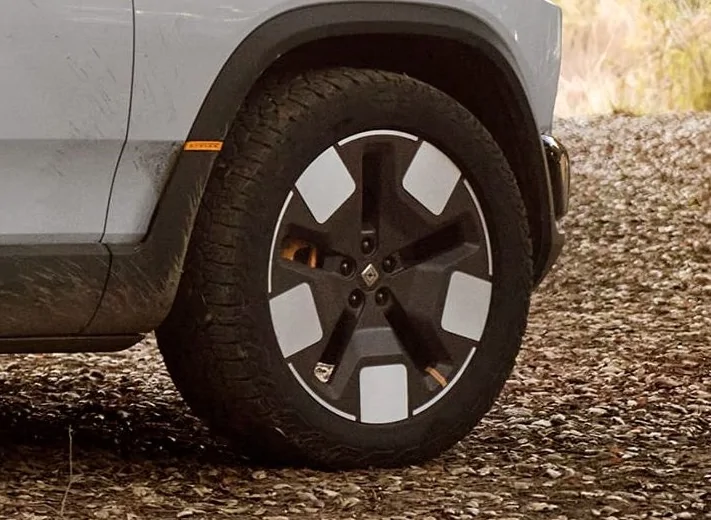

• 19" All Season AS Wheel (Standard Trim)
  • Tires: Pirelli Scorpion MS, 255/65R19
• 20" All Season Range Wheel (Standard Trim, Premium Trim)
  • Tires: Pirelli Scorpion 255/60R20

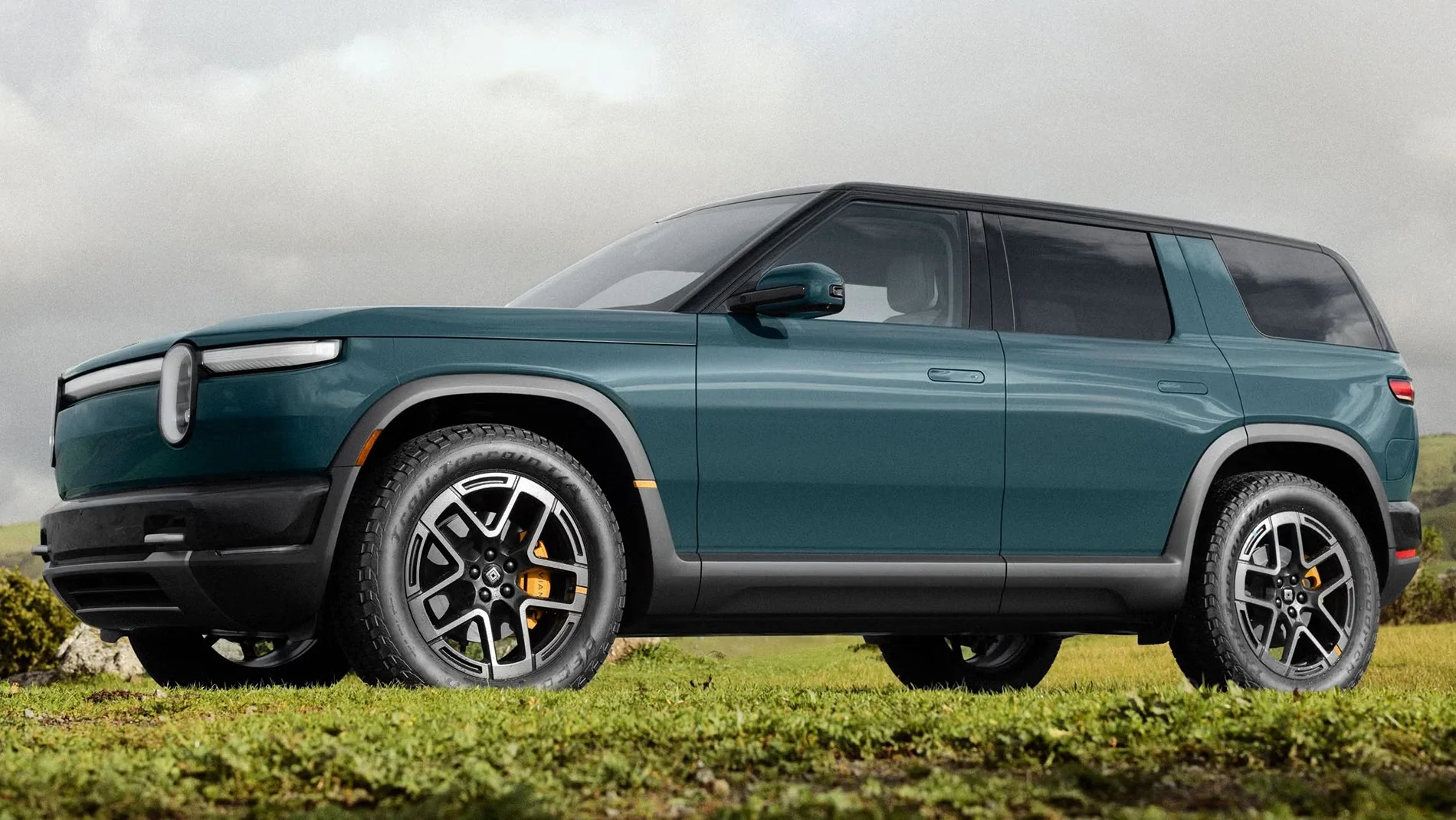

• 20" All Terrain AT Wheel (Performance Trim)

  • Tires: BFG Trail Terrain T/A 255/60R20

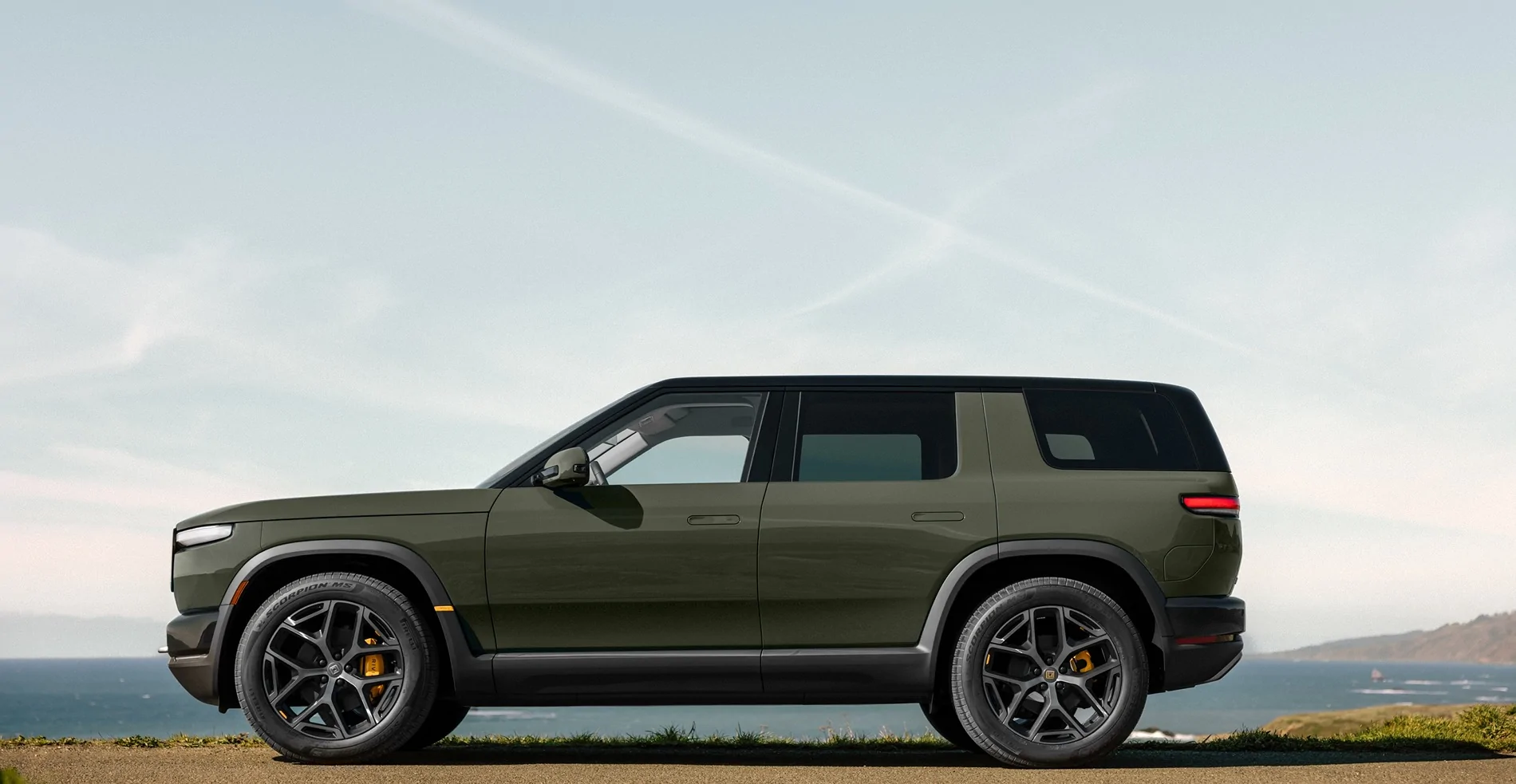

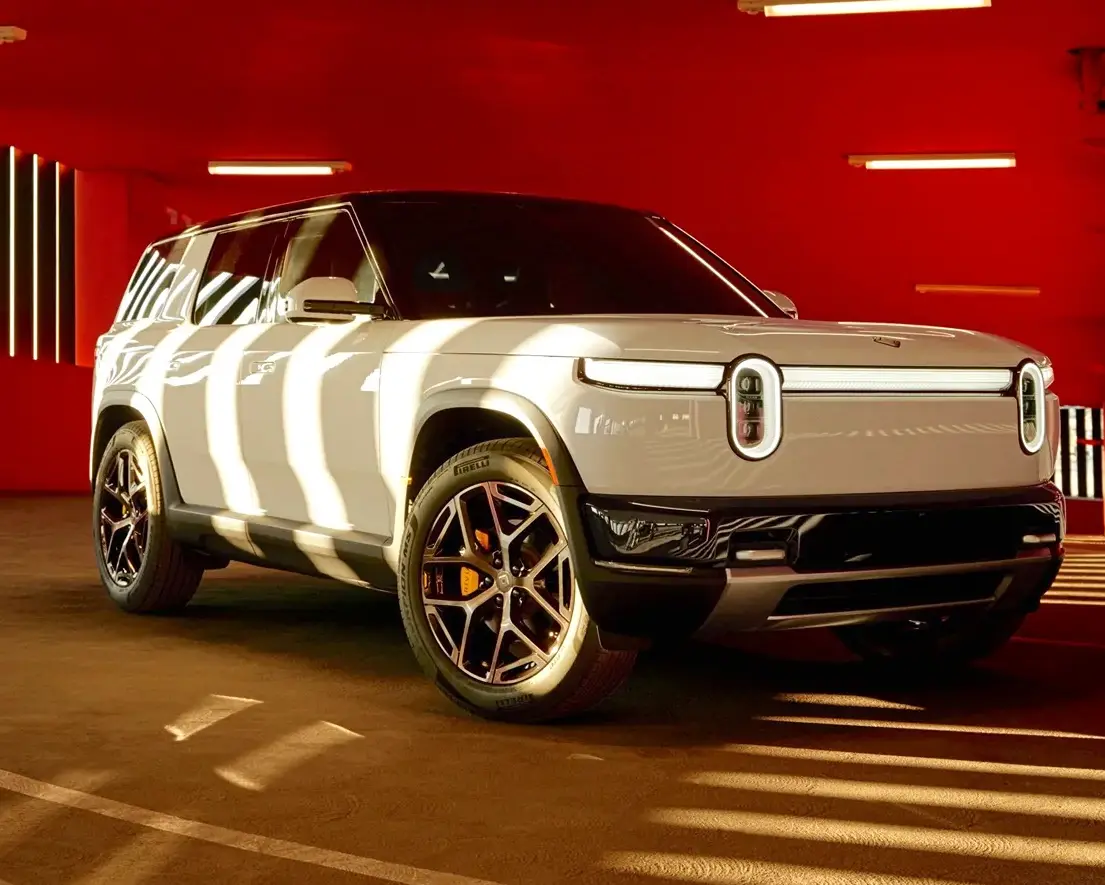

• 21" All Season Sport Wheel (Premium Trim, Performance Trim)

  • Tires: Pirelli Scorpion MS, 255/55R21

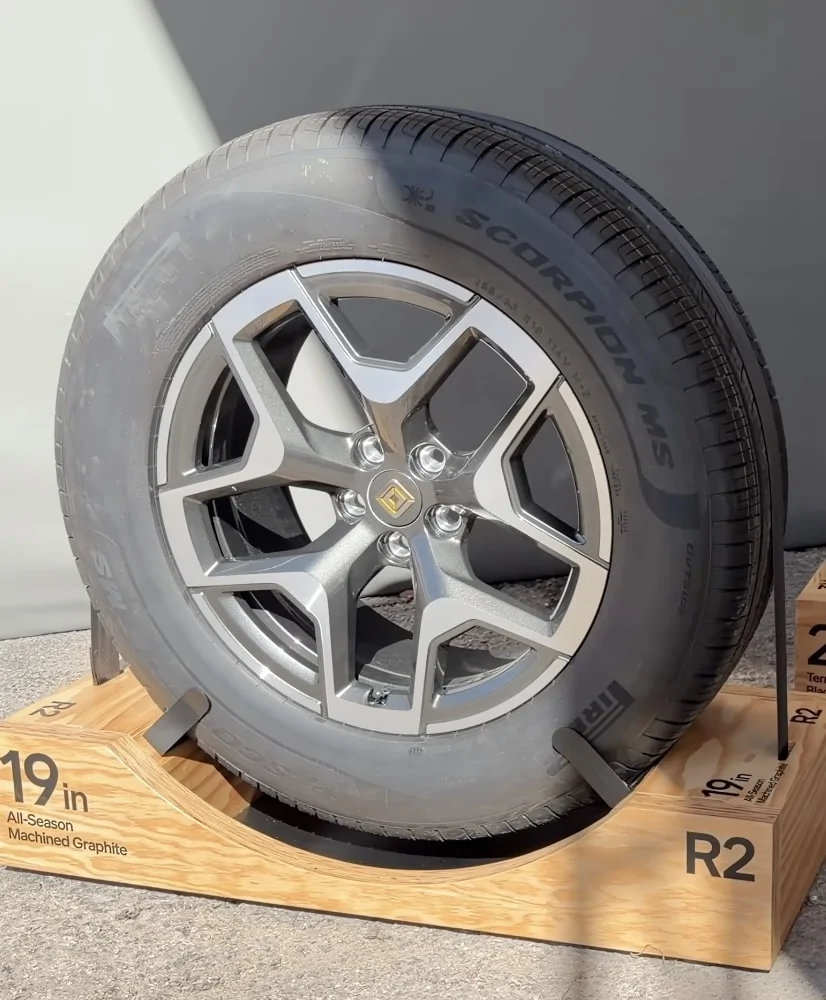

19" All Season AS Wheel (Standard Trim)
Tires: Pirelli Scorpion MS, 255/65R19

20" All Season Range Wheel (Standard Trim, Premium Trim)
Tires: Pirelli Scorpion 255/60R20

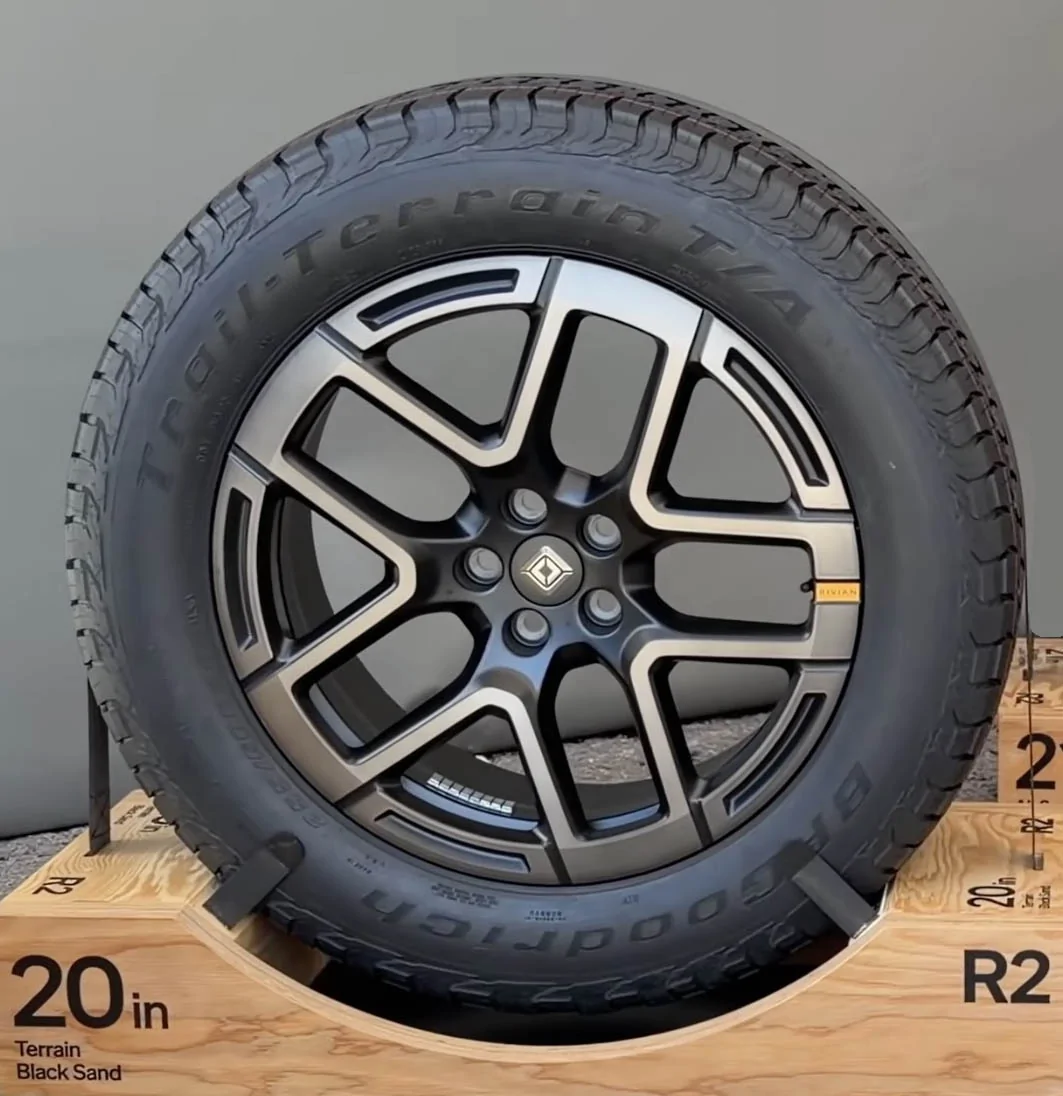

20" All Terrain AT Wheel (Performance Trim)
Tires: BFG Trail Terrain T/A 255/60R20

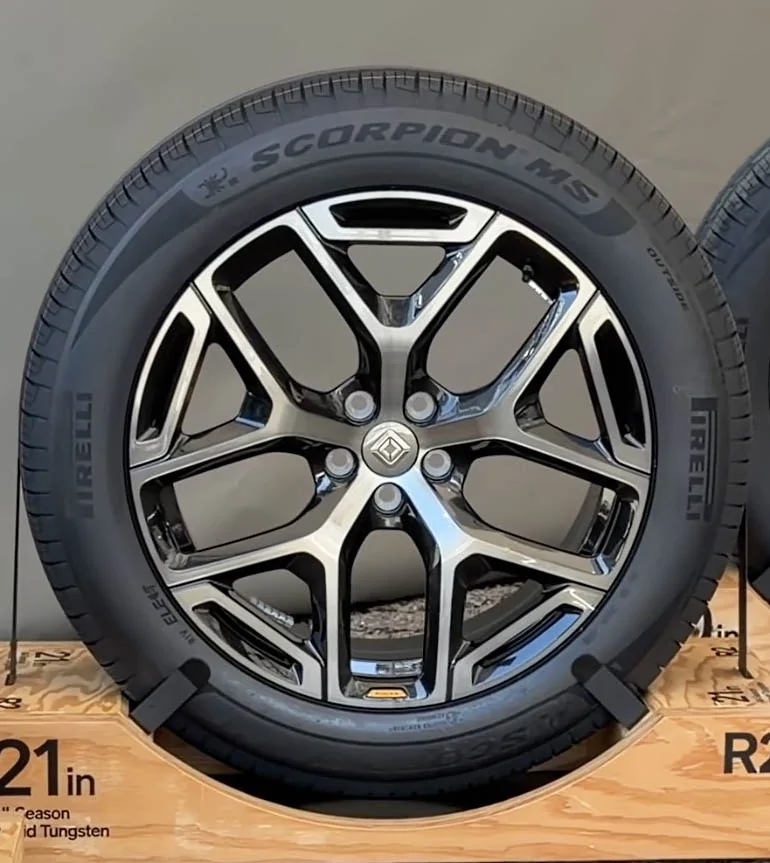

21" All Season Sport Wheel (Premium Trim, Performance Trim)
Tires: Pirelli Scorpion MS, 255/55R21

Sponsored



[blipit]

One edit. Shouldn't the Peformance trim All Terrain be 20's?



[Administrator]

One edit. Shouldn't the Peformance trim All Terrain be 20's?

Fixed, thanks for the correction.



[elektrode]

These are the same? The wheels look the same.

20" All Season Range Wheel

Vs

20" All Terrain AT Wheel

Maybe they differ in tire options?



[godfodder0901]

These are the same? The wheels look the same.

20" All Season Range Wheel

Vs

20" All Terrain AT Wheel

Maybe they differ in tire options?

Same wheels and tires in the photo.



[godfodder0901]

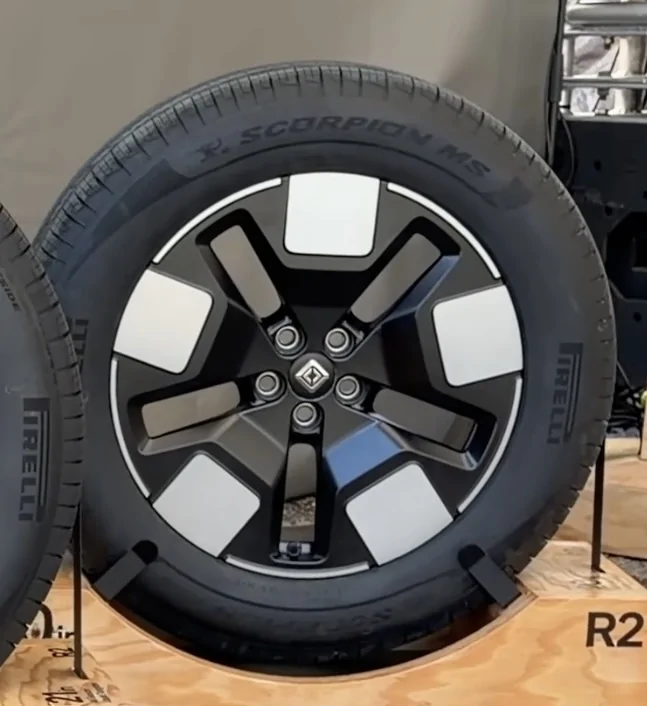

20" All Season Range Wheel (Standard Trim, Premium Trim)

View attachment 152552



20" All Terrain AT Wheel (Performance Trim)

The 20" All Terrain AT Wheel (Performance Trim) and 20" All Season Range Wheel (Standard Trim, Premium Trim) you show here are the same wheel and tire...



[Administrator]

These are the same? The wheels look the same.

20" All Season Range Wheel

Vs

20" All Terrain AT Wheel

Maybe they differ in tire options?

Hrm yes apparently they are the same. Removed the 20" All Season Range Wheel photo until we have a photo.



[Dark-Fx]

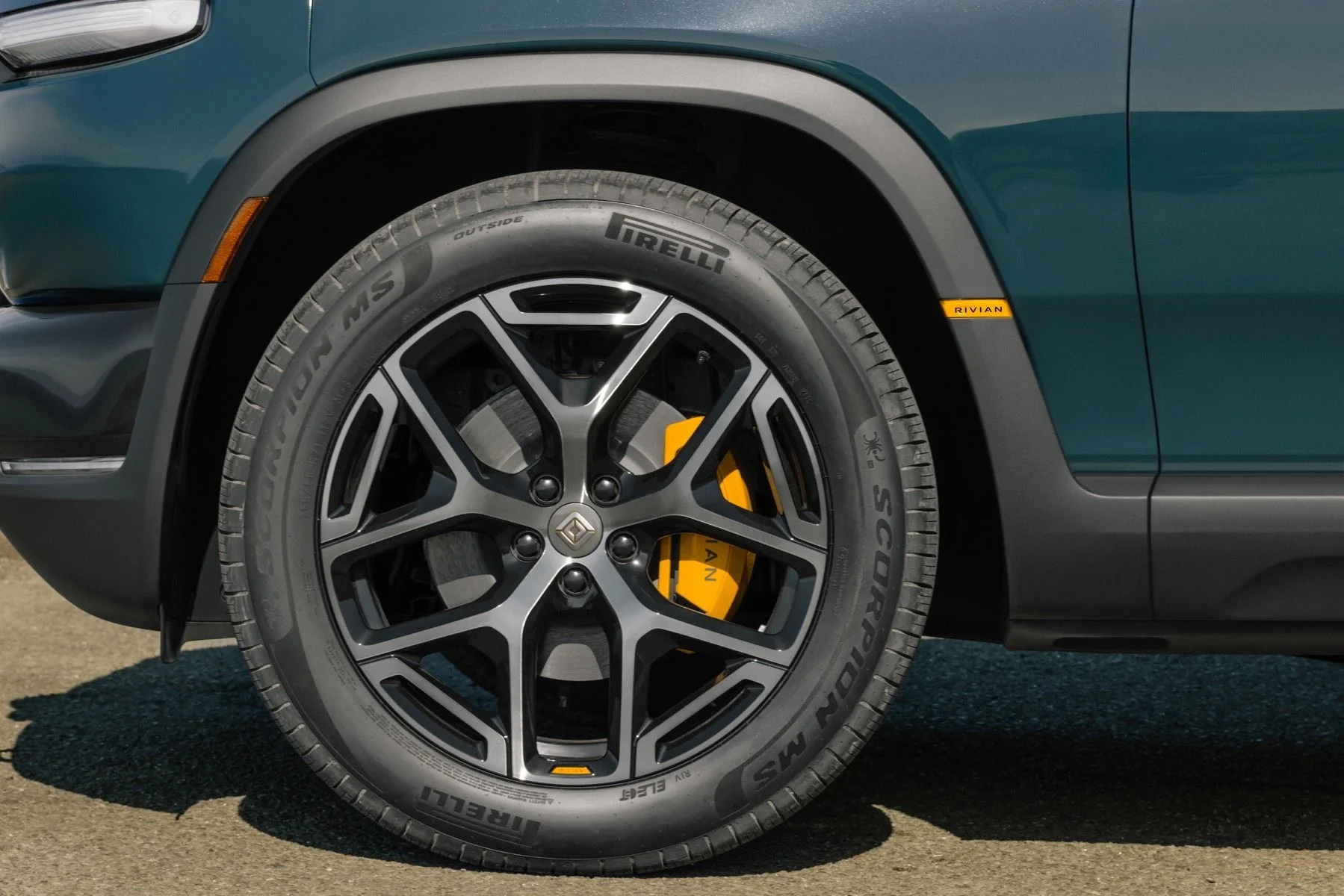

1" All Season Sport Wheel (Premium Trim, Performance Trim)

In the original size of this photo, I was finally able to read the sidewall of the tire. 255/55R21 112V M+S.

Which is not what I was hoping for. I guess this is the R1S 21" tire situation all over again.



[AirplaneDr]

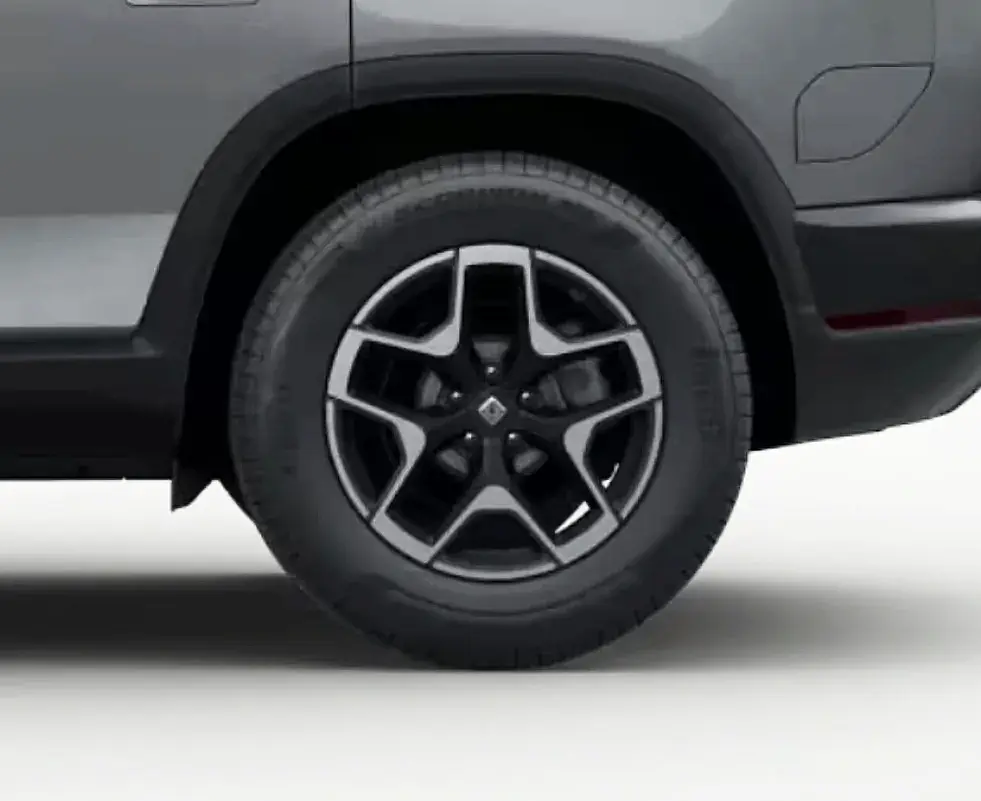

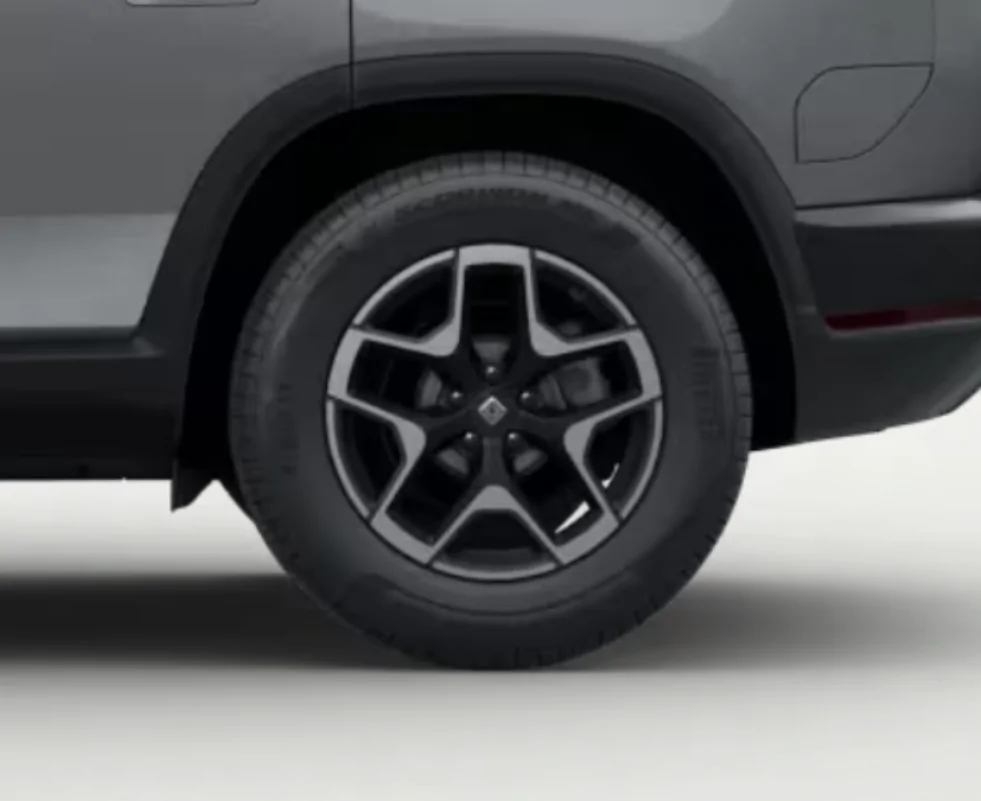

19" All Season AS Wheel (Standard Trim)

Pretty sure these are the 20" wheels common to the Standard and Premium trim.

These are the 19" wheels:



[elektrode]

Would it kill ‘em to have a pop up over the wheels and color names?



[EV-overland]

I wonder how much of the an upgrade the 20” wheels would be for the LE. I may just get the 21’s and sell them in order to pick up some methods and Falken Wildpeaks.



[Administrator]

Pretty sure these are the 20" wheels common to the Standard and Premium trim.

These are the 19" wheels:

Ah good find. First post updated.



[UnsungZero_OldTimeAdMan]

The 21" AS is Pirelli Scorpion MS, 255/55R21

The "all terrain" isn't really an AT. It's the BFG Trail Terrain T/A. BFG classifies it as an all-weather. So, basically a AS/AT hybrid. Size is 255/60R20. Unless BFG updated the tire, TireRack's review of it from a few years ago concluded it is just so-so.

255/55R21 and 255/60R20 have identical overall diameters. If you click back and forth at rivian.com/r2, you'll see that overall diameter does not change.

The 19" option... picture are very fuzzy. But I can make out same sidewall design as the Pirelli Scorpion MS. So the size is probably 255/65R19, which is 0.3% or 0.1" larger than 255/60R20.



[DuoRivian]

This is useful information. I hope the AT tire doesn’t make the same drone the Pirelli AT did on the R1.



[UnsungZero_OldTimeAdMan]

This is useful information. I hope the AT tire doesn’t make the same drone the Pirelli AT did on the R1.

Nah. The Pirelli AT is more all-terrain than the Trail Terrain T/A is. And there are plenty of reviews of it on YouTube already. If the Pirelli AT is AT-lite, this BFG (and the Goodyear Territory AT) would be AT-extralite. Noise isn't a complaint. Wet traction is.
