If you don't like having the body open in front of and behind the sliders, you'll need to cut the panels and re-install them before installing the sliders. I wish I had known this before installing one side, but I did this for the other side.

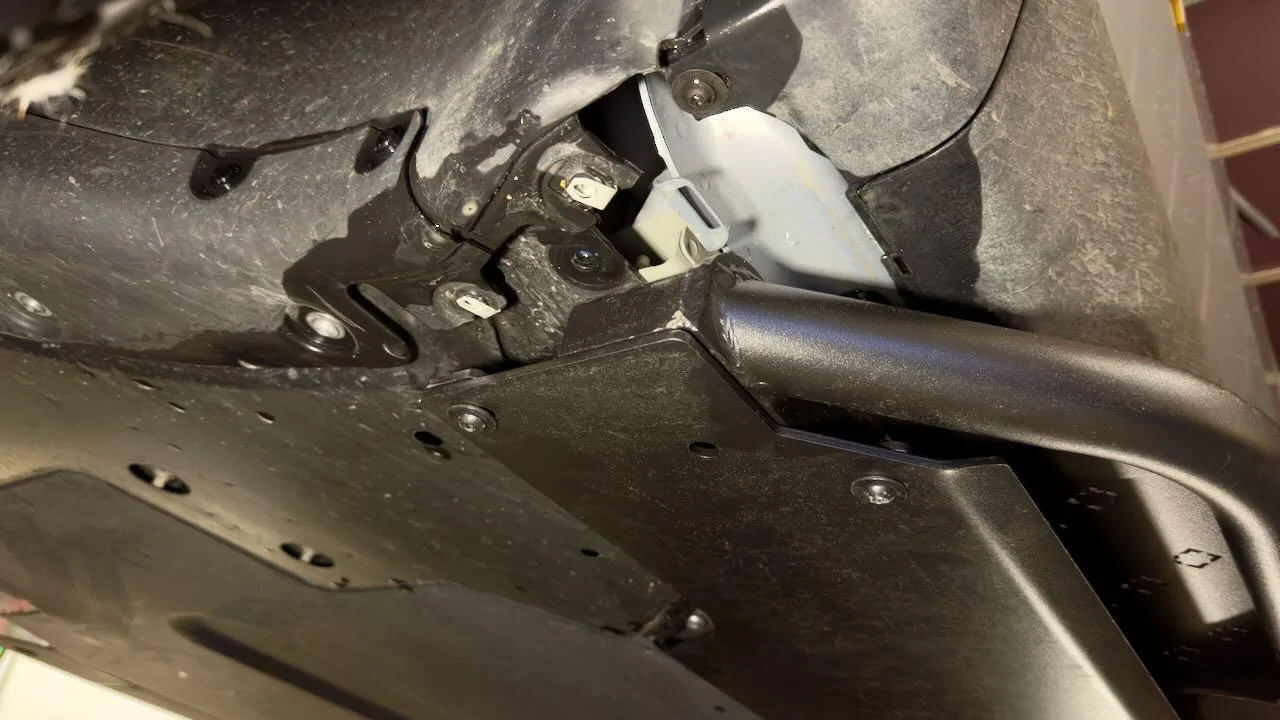

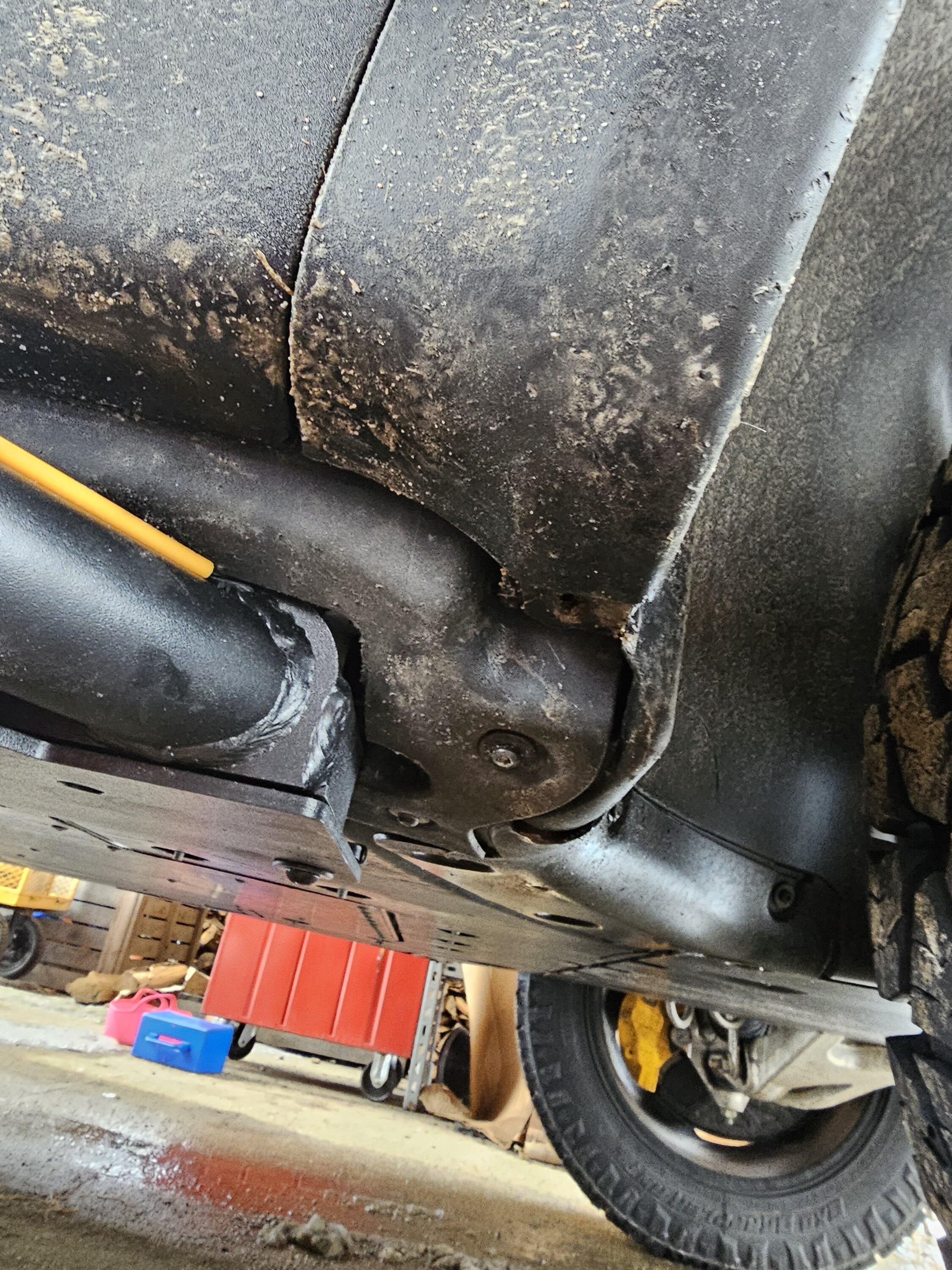

1a. Front of Sliders without Panel.

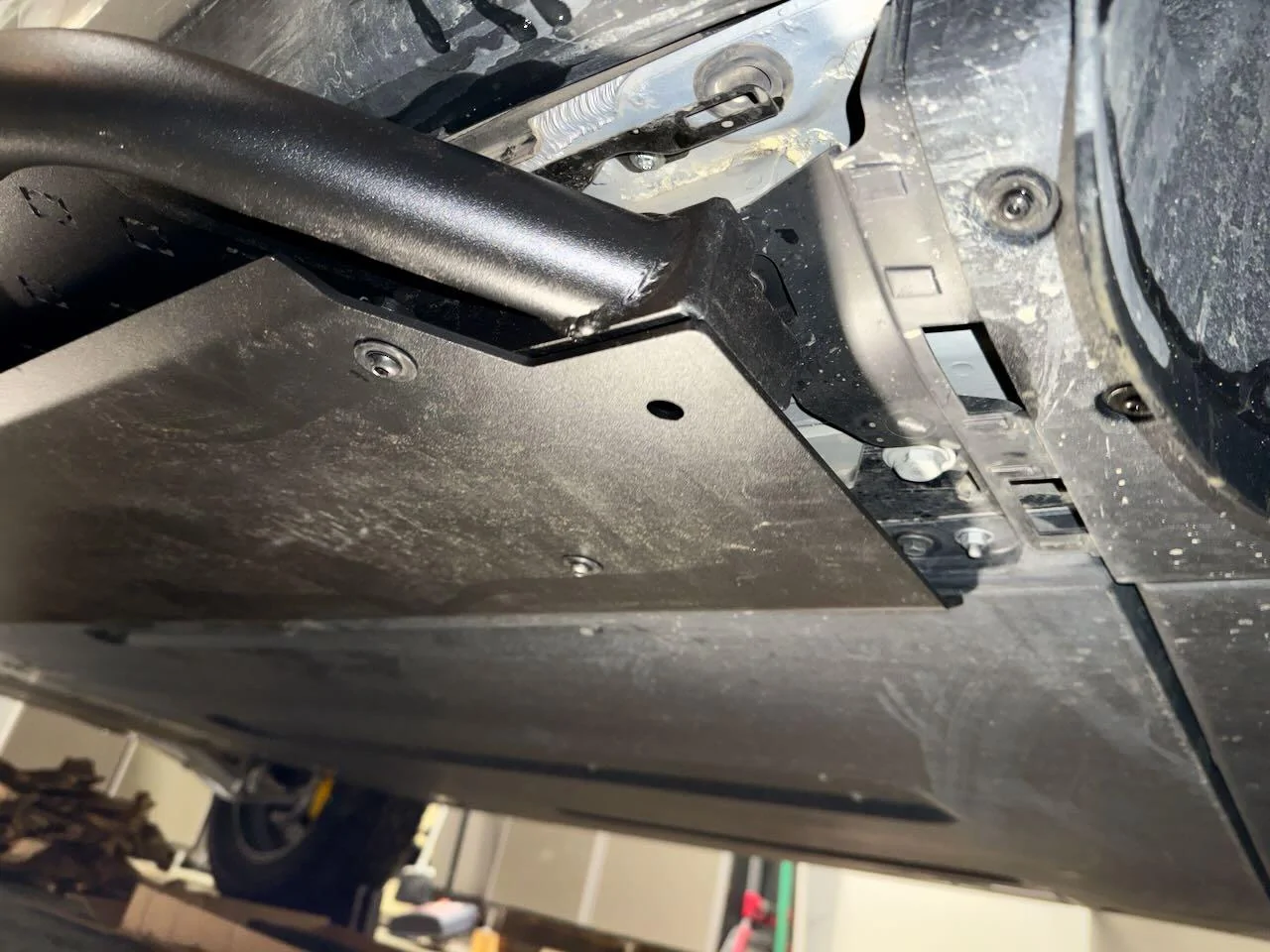

1b. Rear of Slider without Panel.

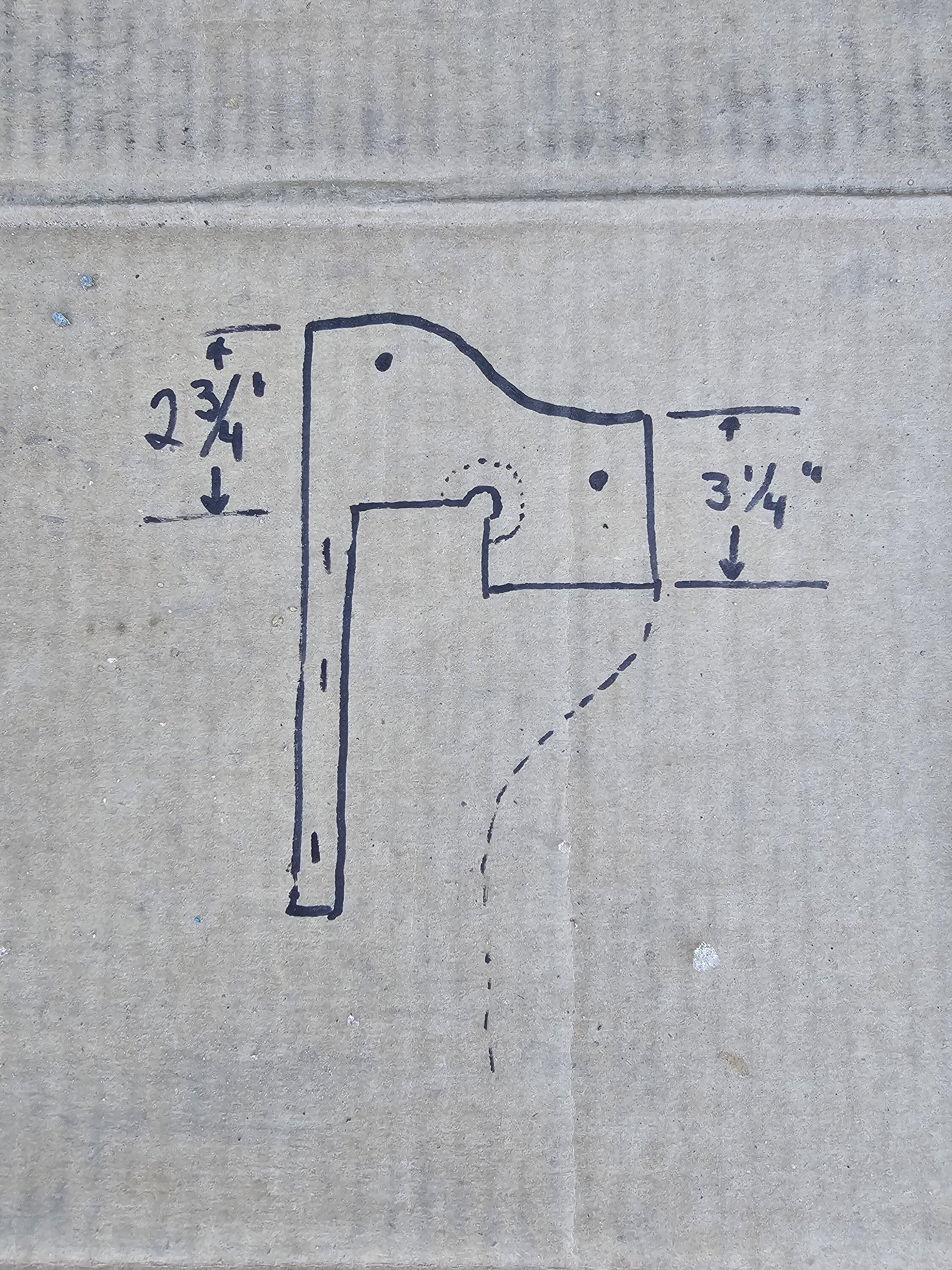

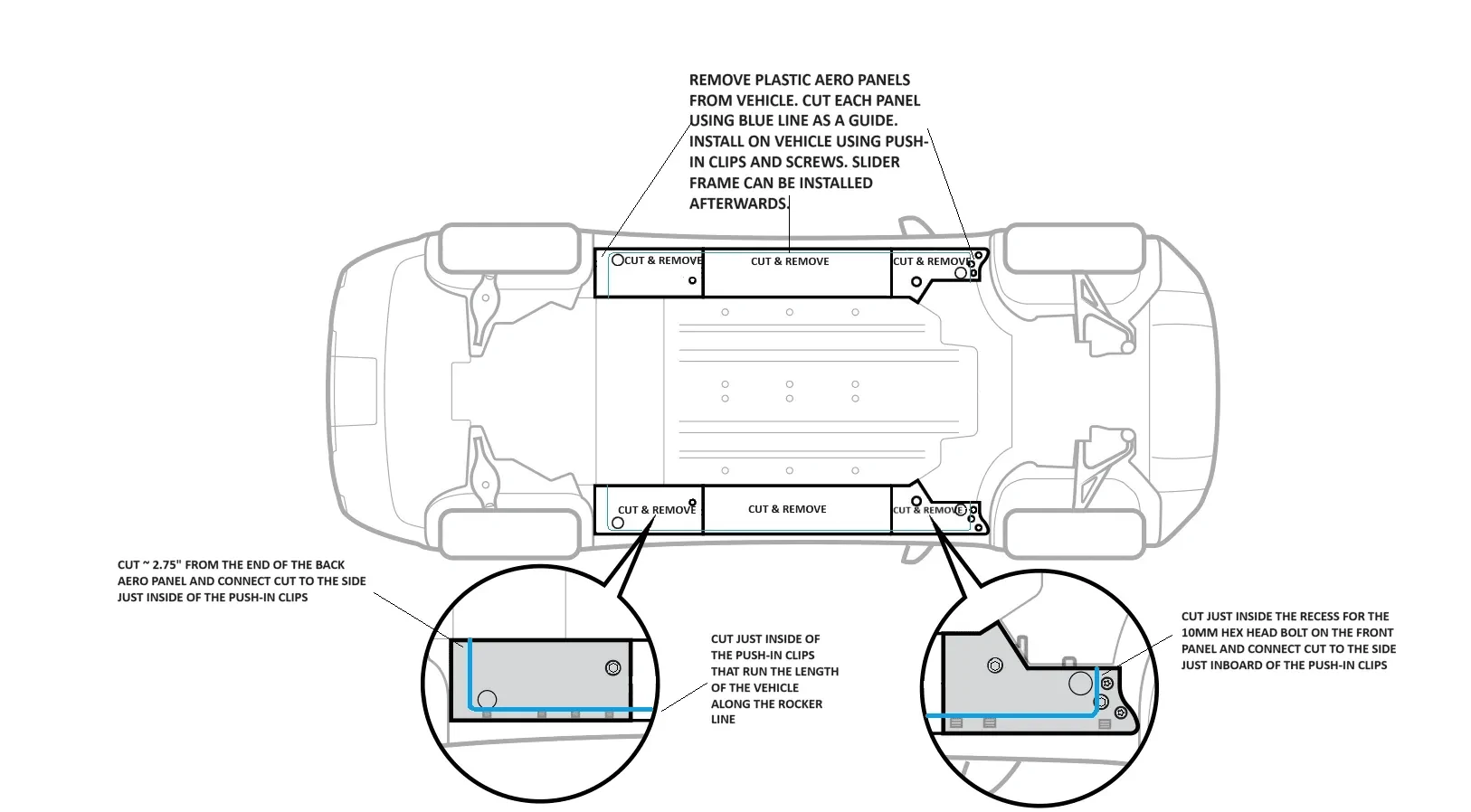

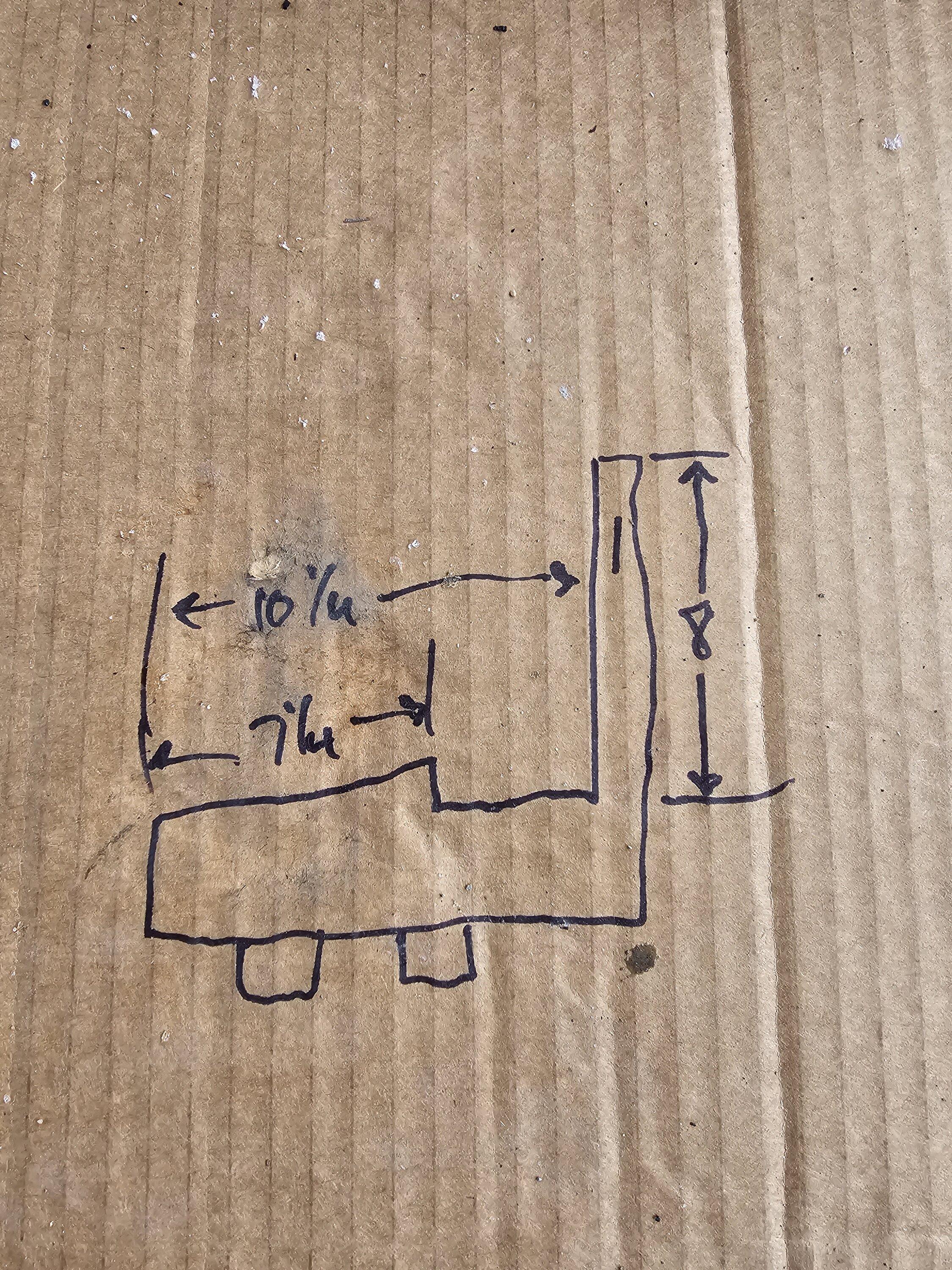

0. Panel cutting instructions

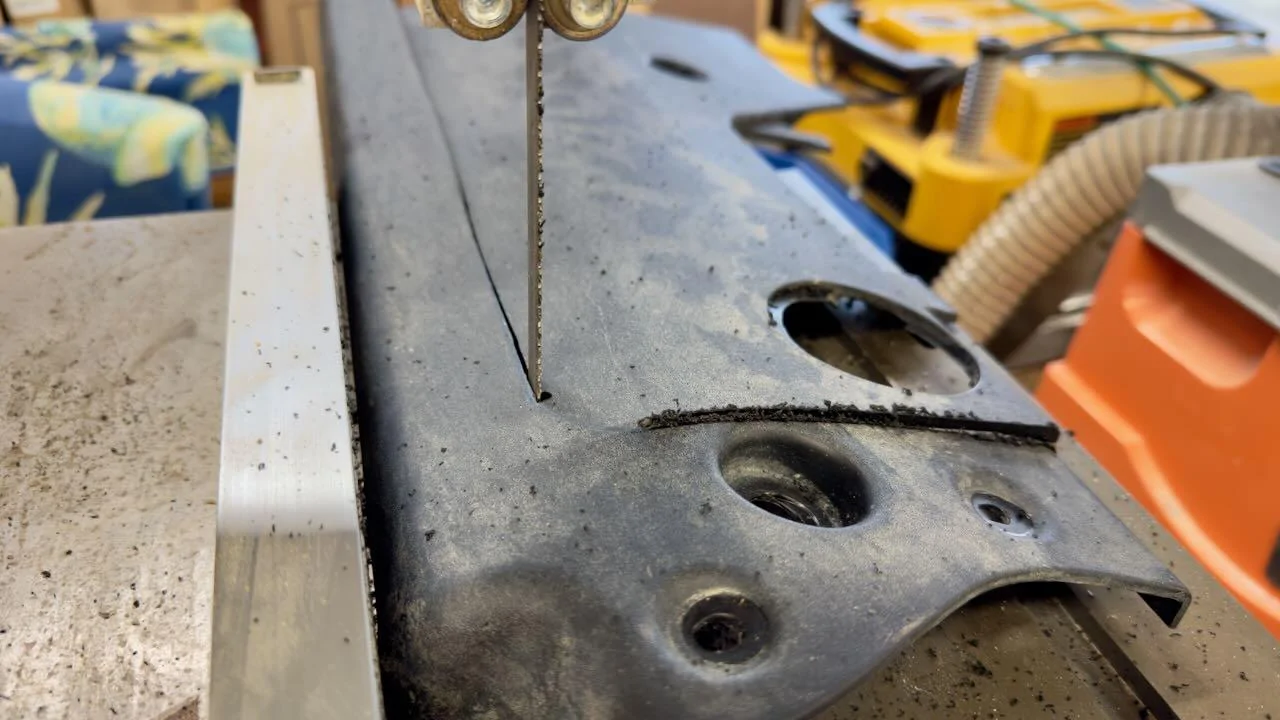

2. Band Saw
3. <insert belt sander for radius>

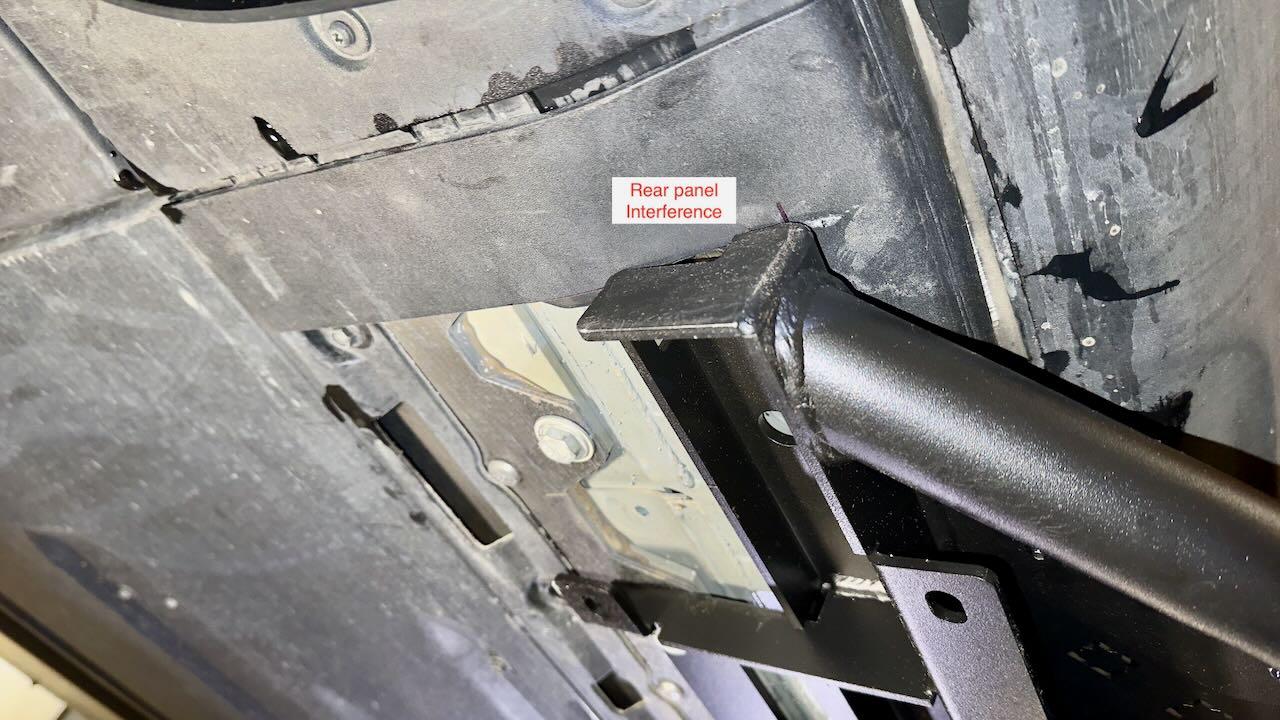

5. Rear Panel. Instead of cutting from the edge to 2.75", cut off more by going to only 2.5".

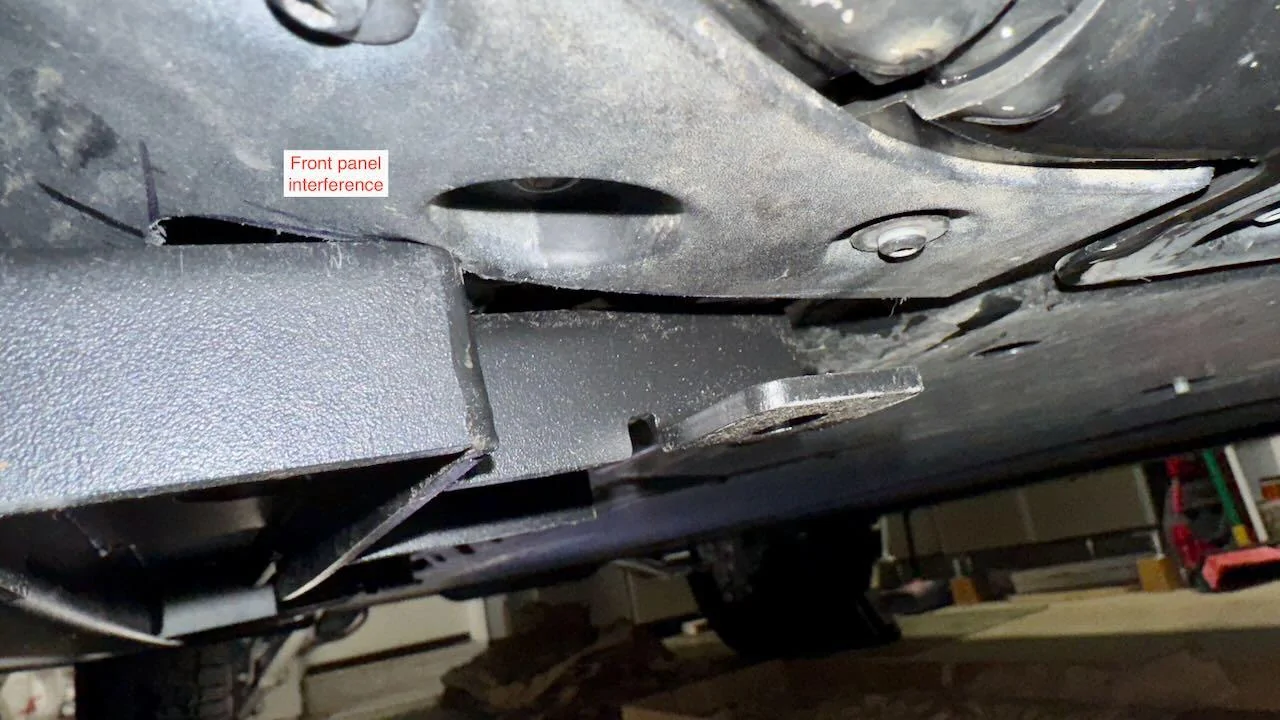

6. Front Panel. Make sure you cut to include the inside of this bolt hole.

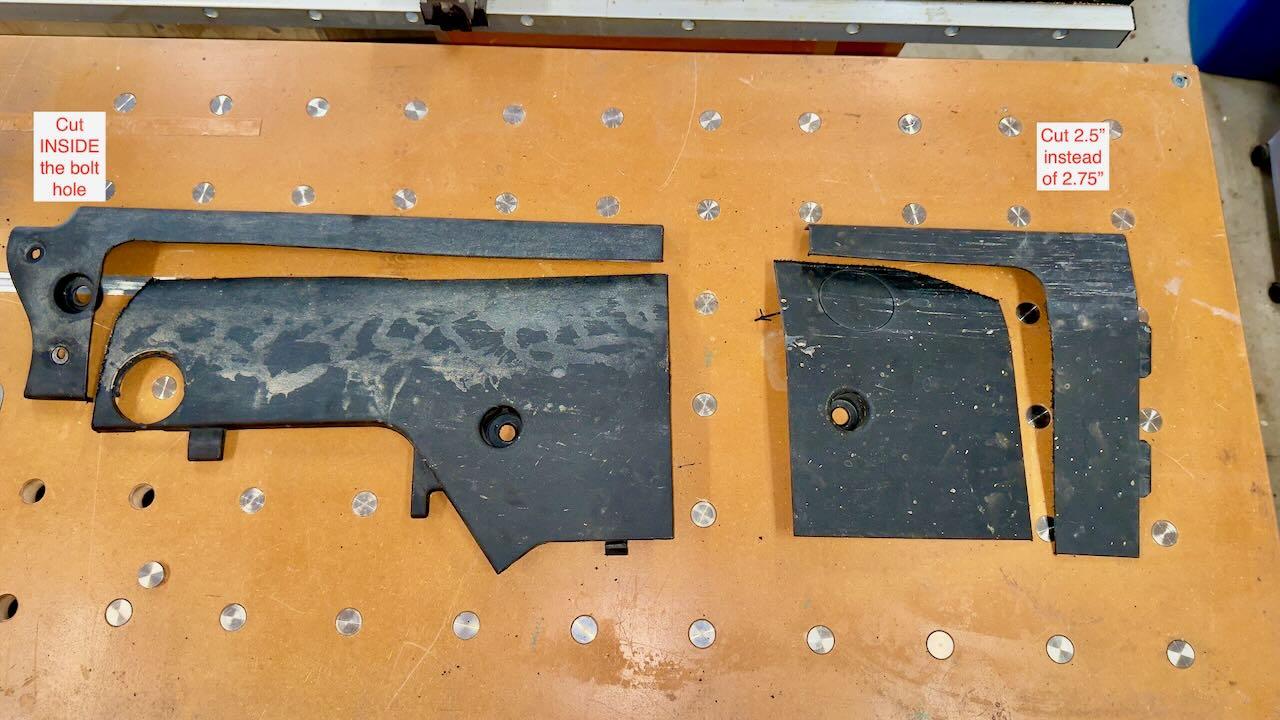

4. Initial Cut

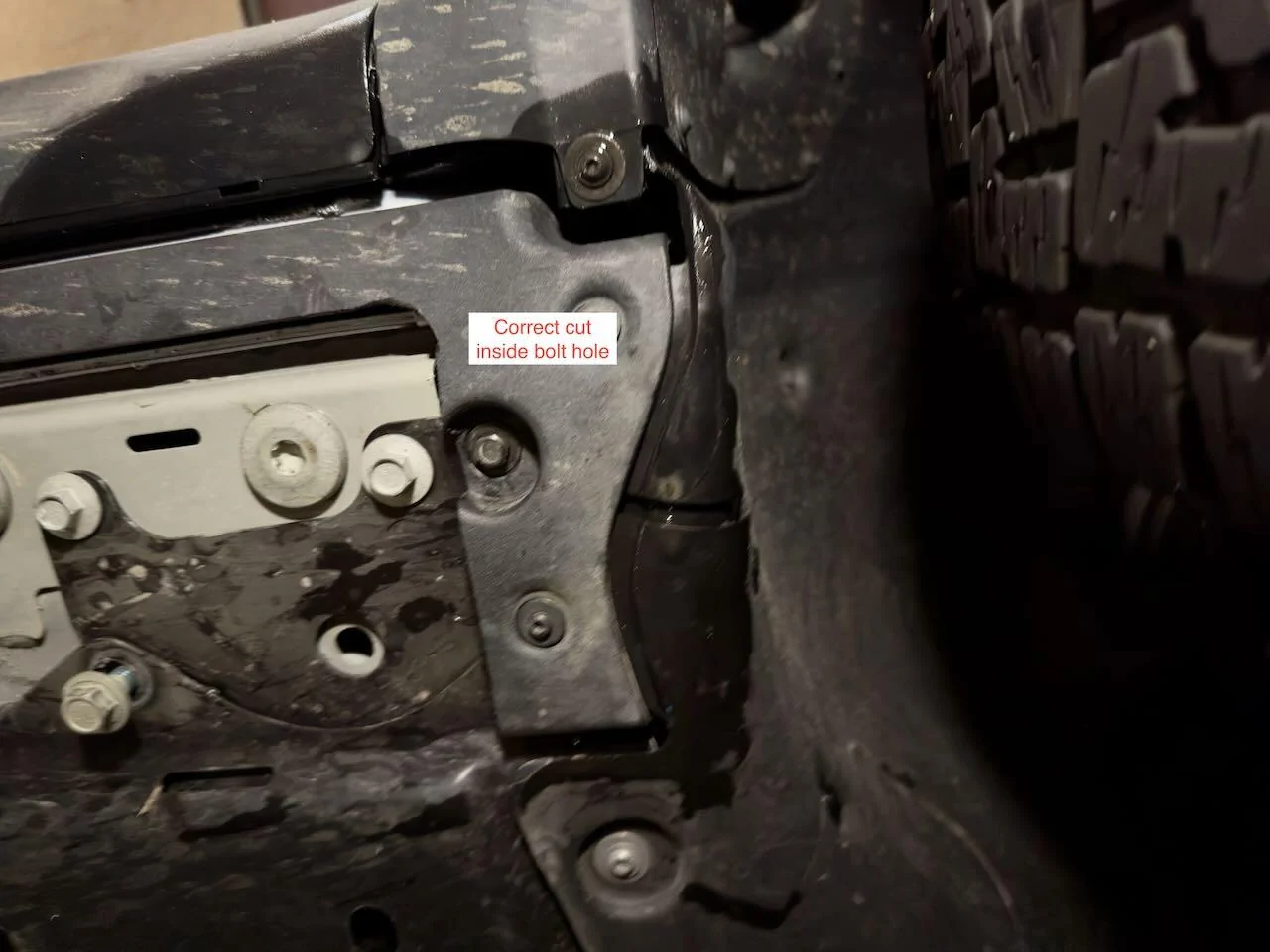

7. Front Panel w/corrected cut.

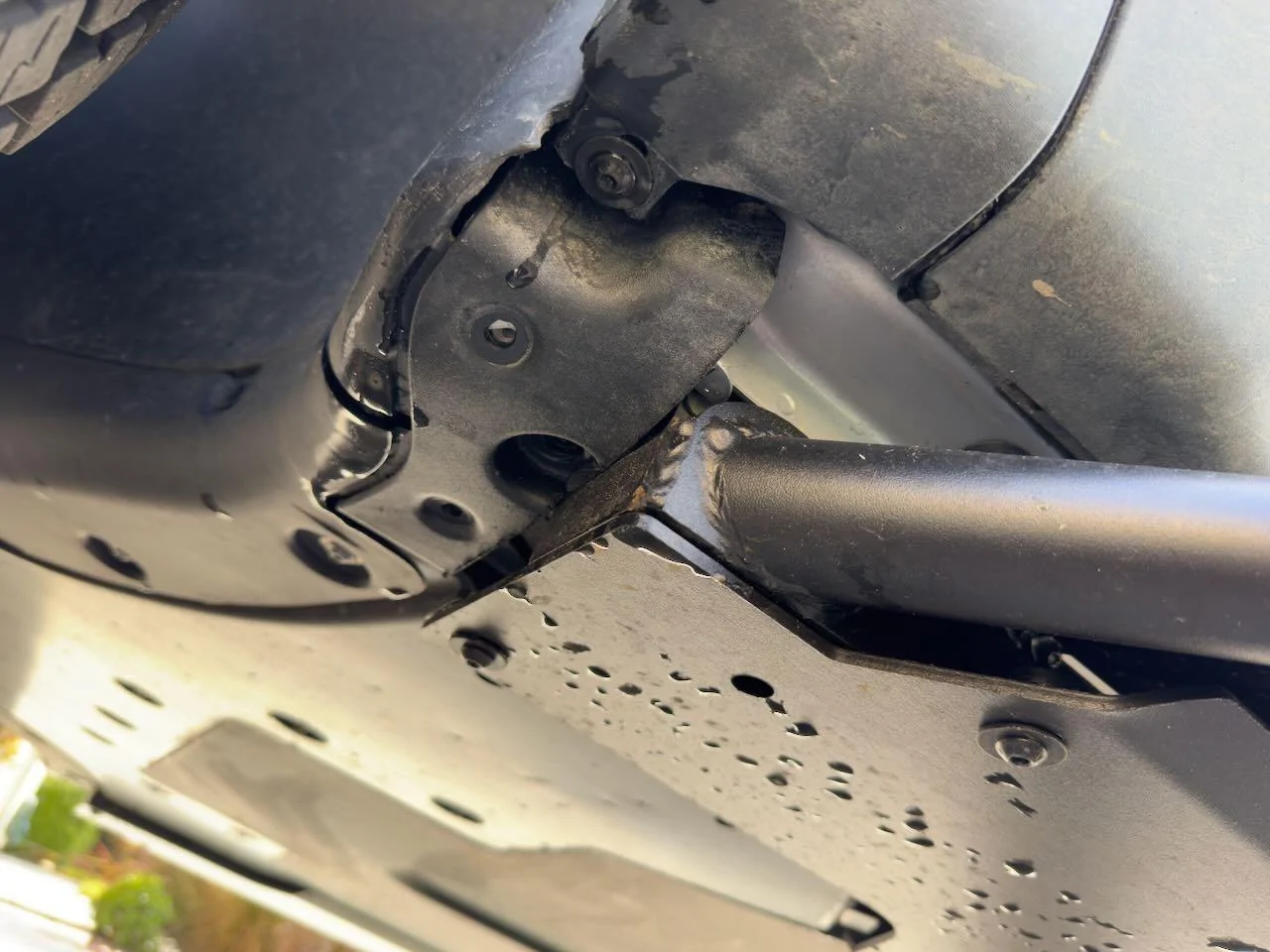

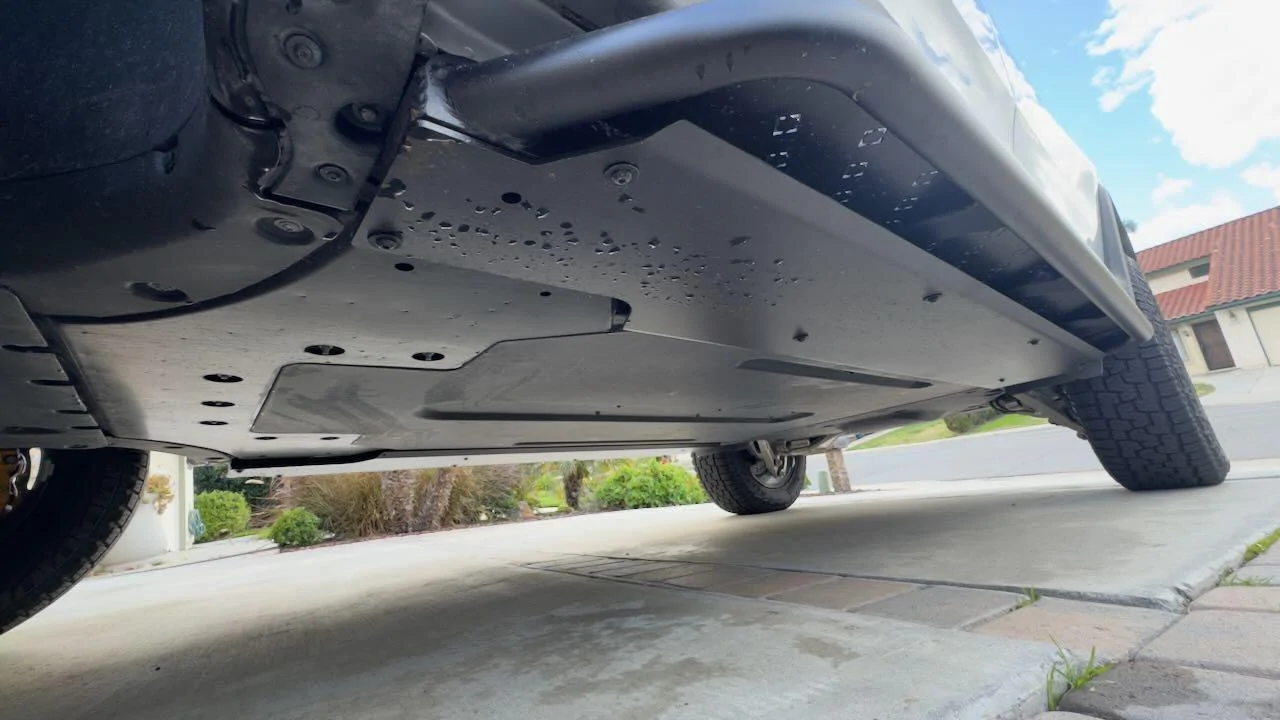

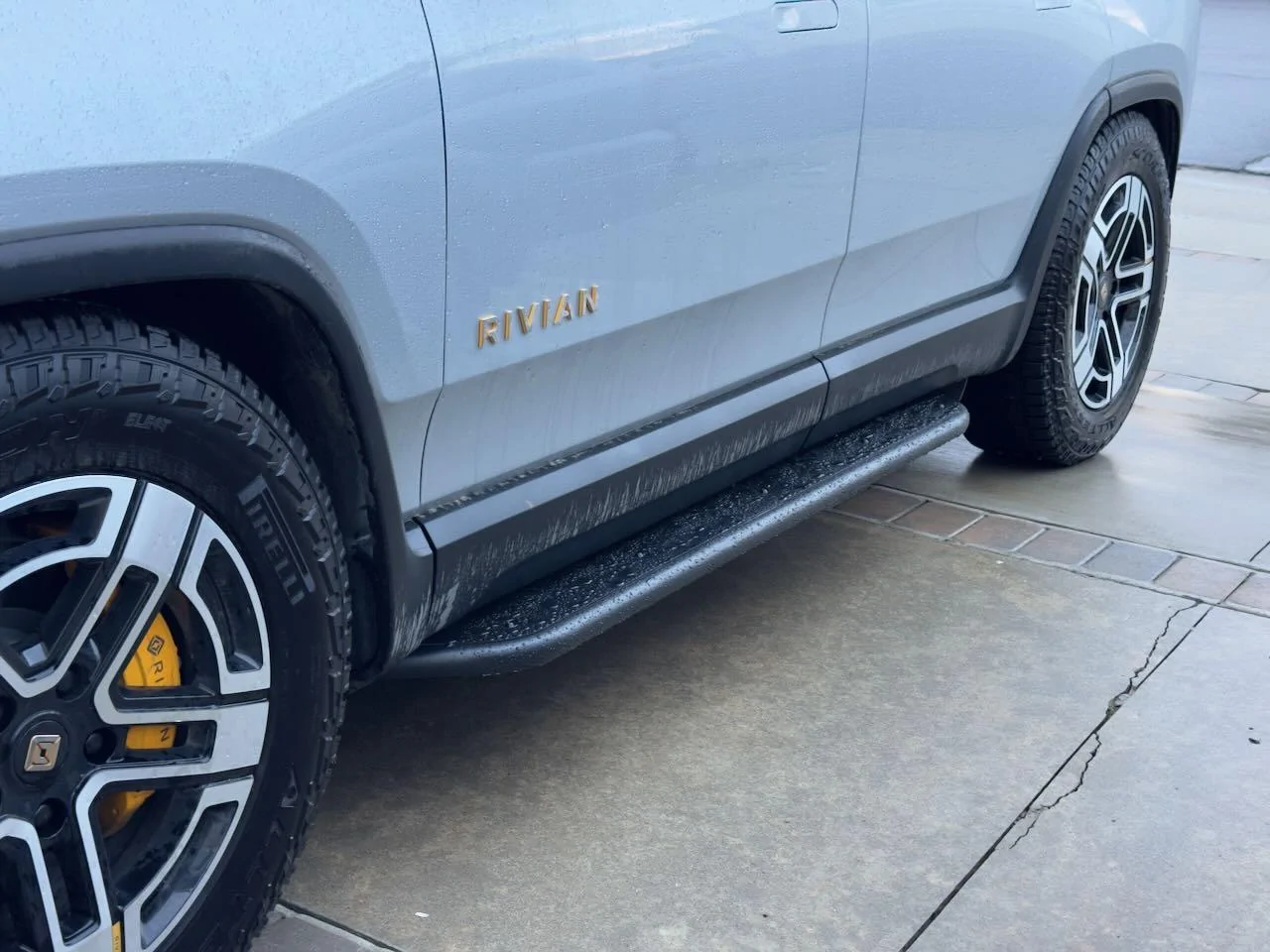

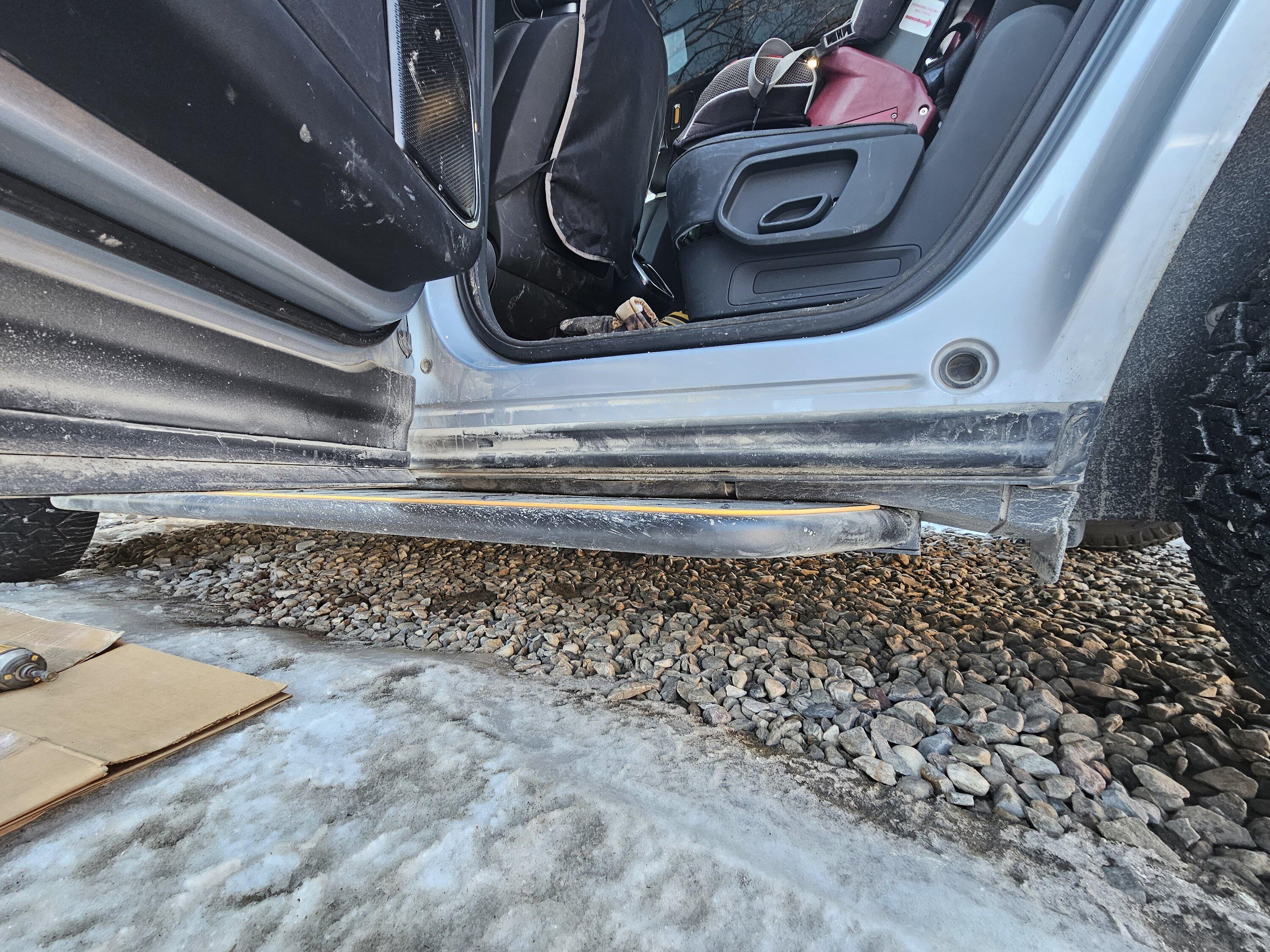

8. Win.
1a. Front of Sliders without Panel.
1b. Rear of Slider without Panel.
0. Panel cutting instructions
2. Band Saw
3. <insert belt sander for radius>
5. Rear Panel. Instead of cutting from the edge to 2.75", cut off more by going to only 2.5".
6. Front Panel. Make sure you cut to include the inside of this bolt hole.
4. Initial Cut
7. Front Panel w/corrected cut.
8. Win.
