Problems!

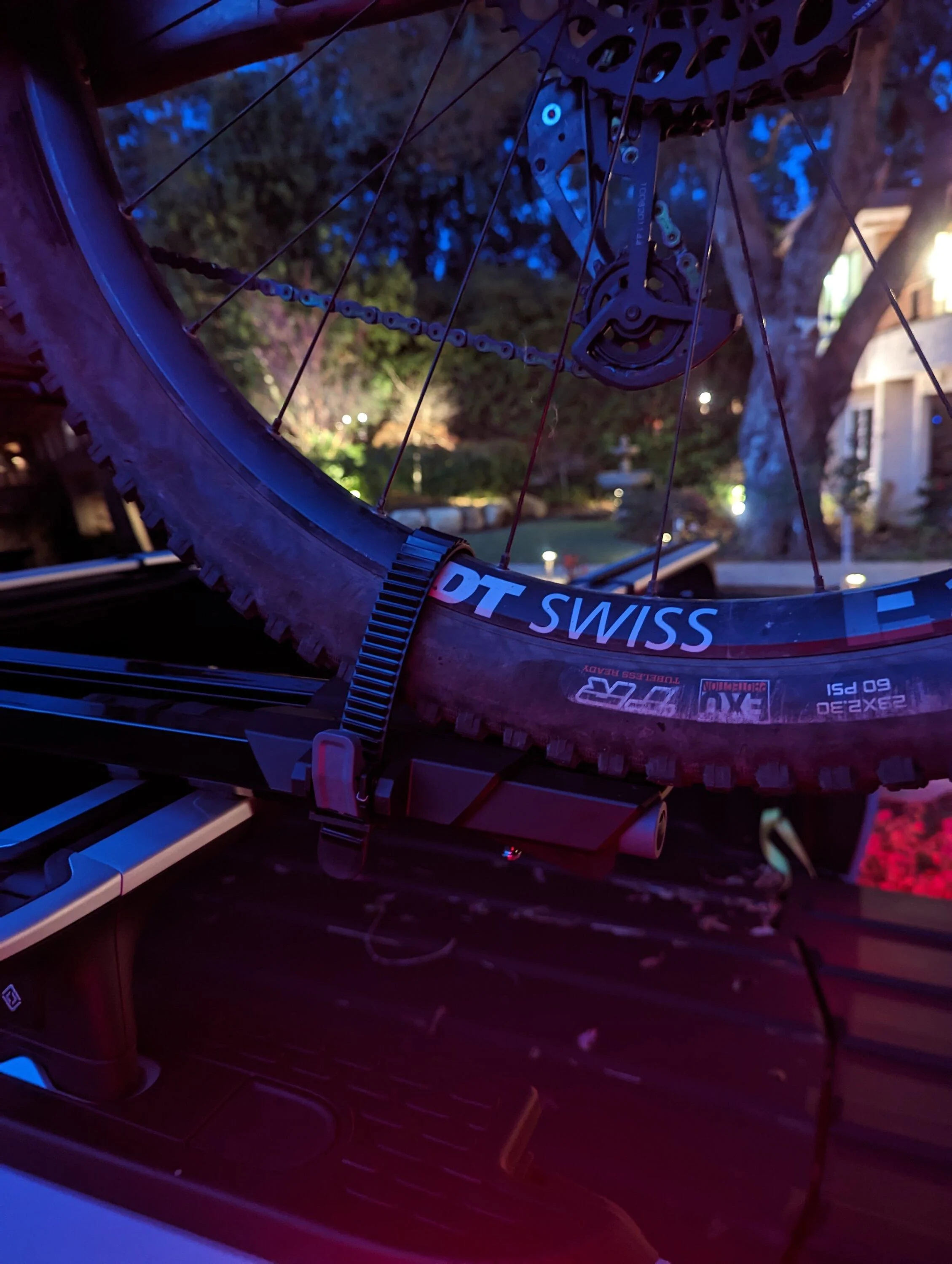

Stock Yakima bike rack doesn't work very well. If you have a modern long and slack 29er MTB like my Yeti it doesn't fit. I mean it sort of fits but it really doesn't fit well.

It makes contact to the top of the roof and its too long for the back strap.

My hitch mounted Kuat rack doesn't allow the bed to come down and drives the parking sensors crazy.

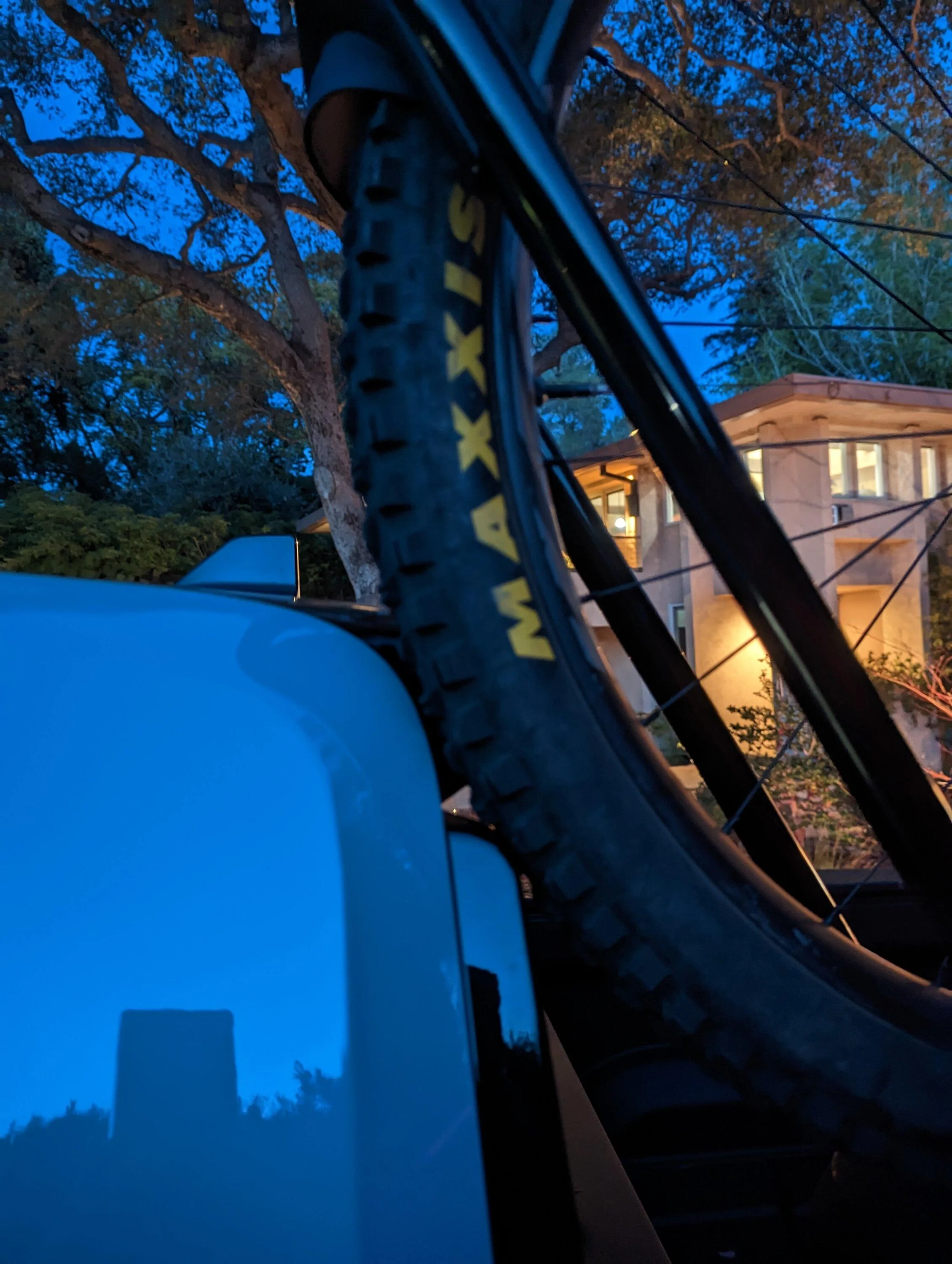

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader PXL_20230107_013327229


Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader PXL_20230107_013343970

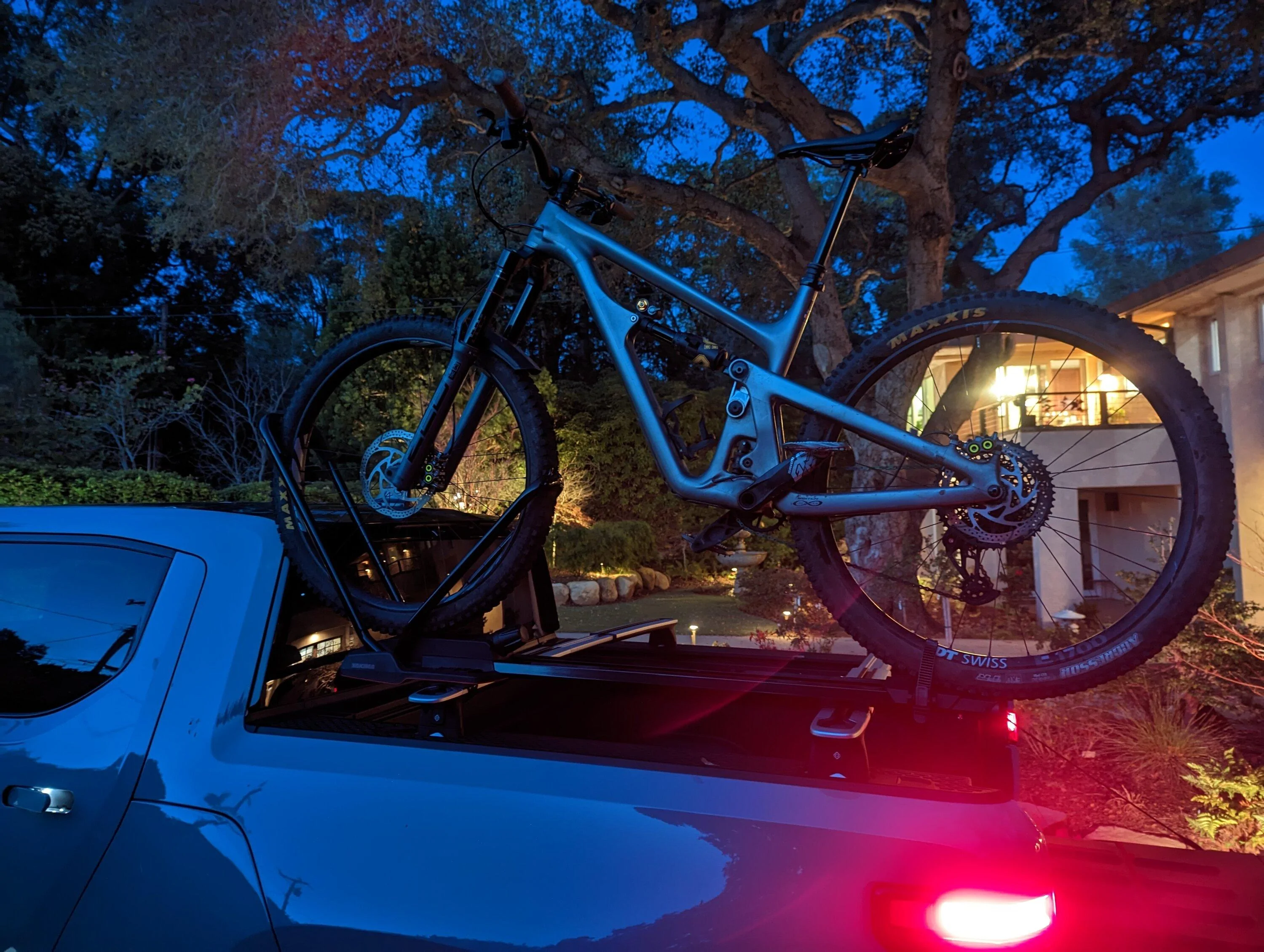

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader PXL_20230107_013404479

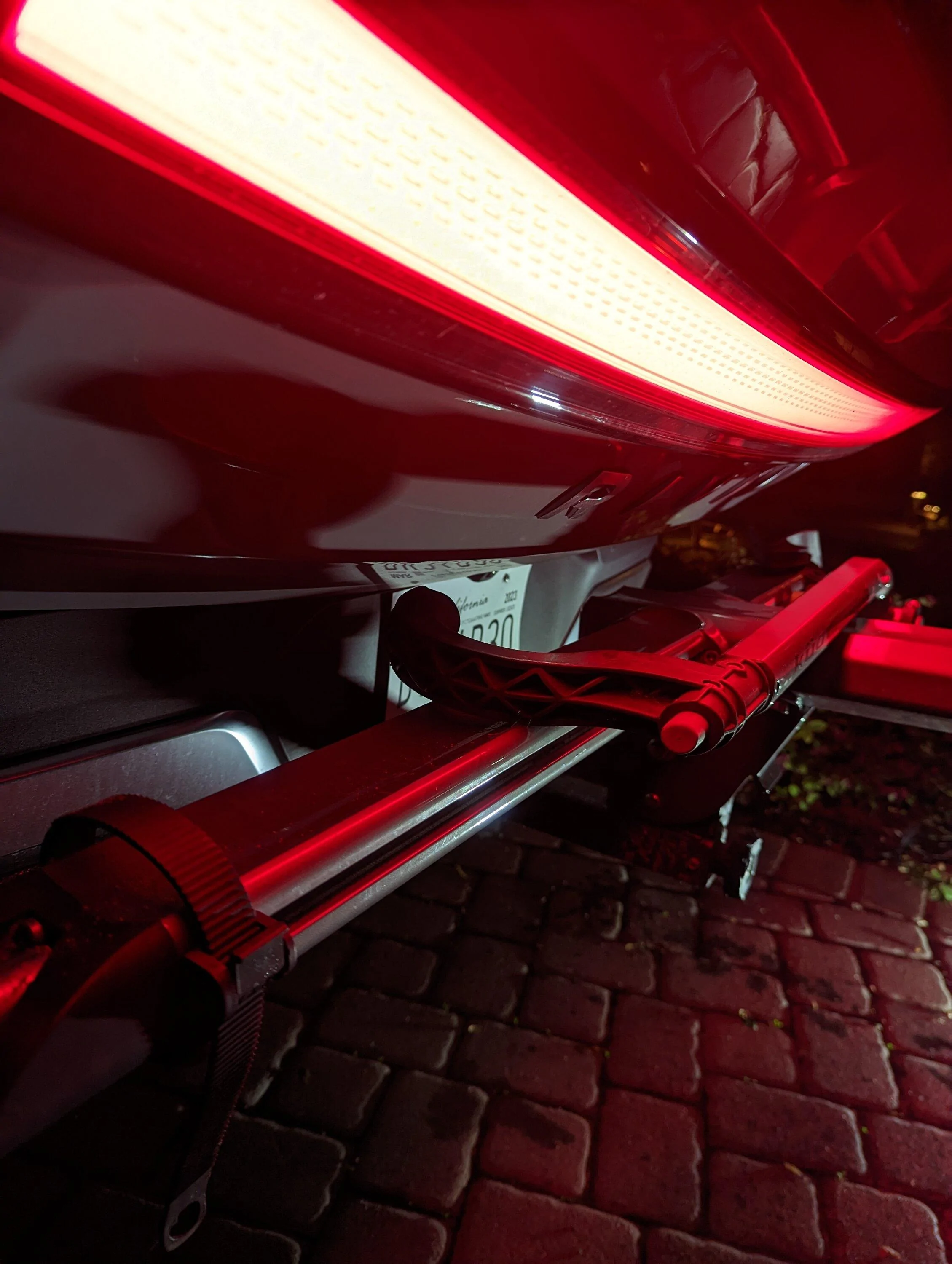

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader PXL_20230107_014039097.MP

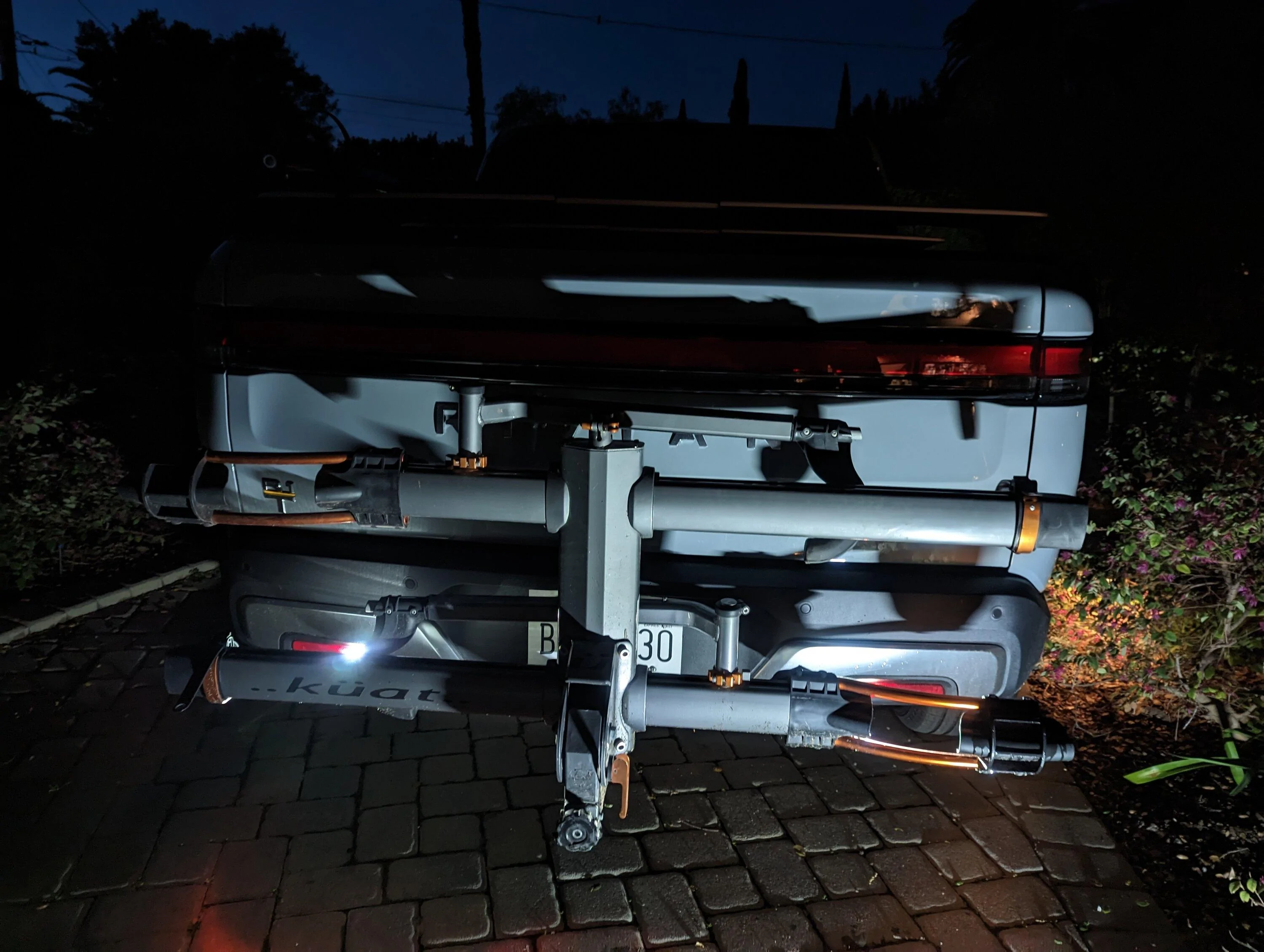

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader PXL_20230107_014235408


Marchin_MTB

Well-Known Member
First Name
Marcin
Joined
Jun 25, 2022
Threads
11
Messages
1,074
Reaction score
1,322
Location
Colorado
Vehicles
2015 i3, 2011 Honda CRV.
Occupation
Aerospace Engineer turned Space Physicist
Clubs

Problems!

Stock Yakima bike rack doesn't work very well. If you have a modern long and slack 29er MTB like my Yeti it doesn't fit. I mean it sort of fits but it really doesn't fit well.

It makes contact to the top of the roof and its too long for the back strap.

My hitch mounted Kuat rack doesn't allow the bed to come down and drives the parking sensors crazy.









There is a rear accessory option in the settings menu that disable the rear warnings. Just be careful backing up. I really wish they had this on my last MTB trip but it came in a more recent update.


connoisseurr

Well-Known Member
First Name
Connor
Joined
Oct 1, 2022
Threads
23
Messages
872
Reaction score
1,217
Location
Northern VA
Vehicles
22 R1T, 23 MYP
Occupation
I encrypt PDFs for Boomers
Clubs

Problems!

Stock Yakima bike rack doesn't work very well. If you have a modern long and slack 29er MTB like my Yeti it doesn't fit. I mean it sort of fits but it really doesn't fit well.

It makes contact to the top of the roof and its too long for the back strap.

My hitch mounted Kuat rack doesn't allow the bed to come down and drives the parking sensors crazy.









You have the Yakima Highroad. Yakima Frontloader works better in that configuration. You could also run the Highroad backwards.


RYU

Active Member
Joined
Oct 11, 2022
Threads
3
Messages
40
Reaction score
29
Location
90746
Vehicles
R1T
You have the Yakima Highroad. Yakima Frontloader works better in that configuration. You could also run the Highroad backwards.
I can't mount the high road backwards. I tried based on some posts. It aggravates the situation because it shortens the effective wheelbase. Will try again tomorrow.

I should have paid more attention instead of blindly ordering from the Rivian catalog


Sponsored

RYU

Active Member
Joined
Oct 11, 2022
Threads
3
Messages
40
Reaction score
29
Location
90746
Vehicles
R1T
There is a rear accessory option in the settings menu that disable the rear warnings. Just be careful backing up. I really wish they had this on my last MTB trip but it came in a more recent update.
Great to know! Didn't know that!


connoisseurr

Well-Known Member
First Name
Connor
Joined
Oct 1, 2022
Threads
23
Messages
872
Reaction score
1,217
Location
Northern VA
Vehicles
22 R1T, 23 MYP
Occupation
I encrypt PDFs for Boomers
Clubs

I can't mount the high road backwards. I tried based on some posts. It aggravates the situation because it shortens the effective wheelbase. Will try again tomorrow.

I should have paid more attention instead of blindly ordering from the Rivian catalog
That’s the worst. We’re opting for a fork mount - either Yakima Highspeed or Thule Topride.


vinsonr

Member
First Name
Vinson
Joined
Jan 7, 2023
Threads
0
Messages
22
Reaction score
14
Location
Austin, TX
Vehicles
2022 R1T
I put my fork mount Thule rack on recently. I have not driven very far with it on to see what kind of range impact it may have.

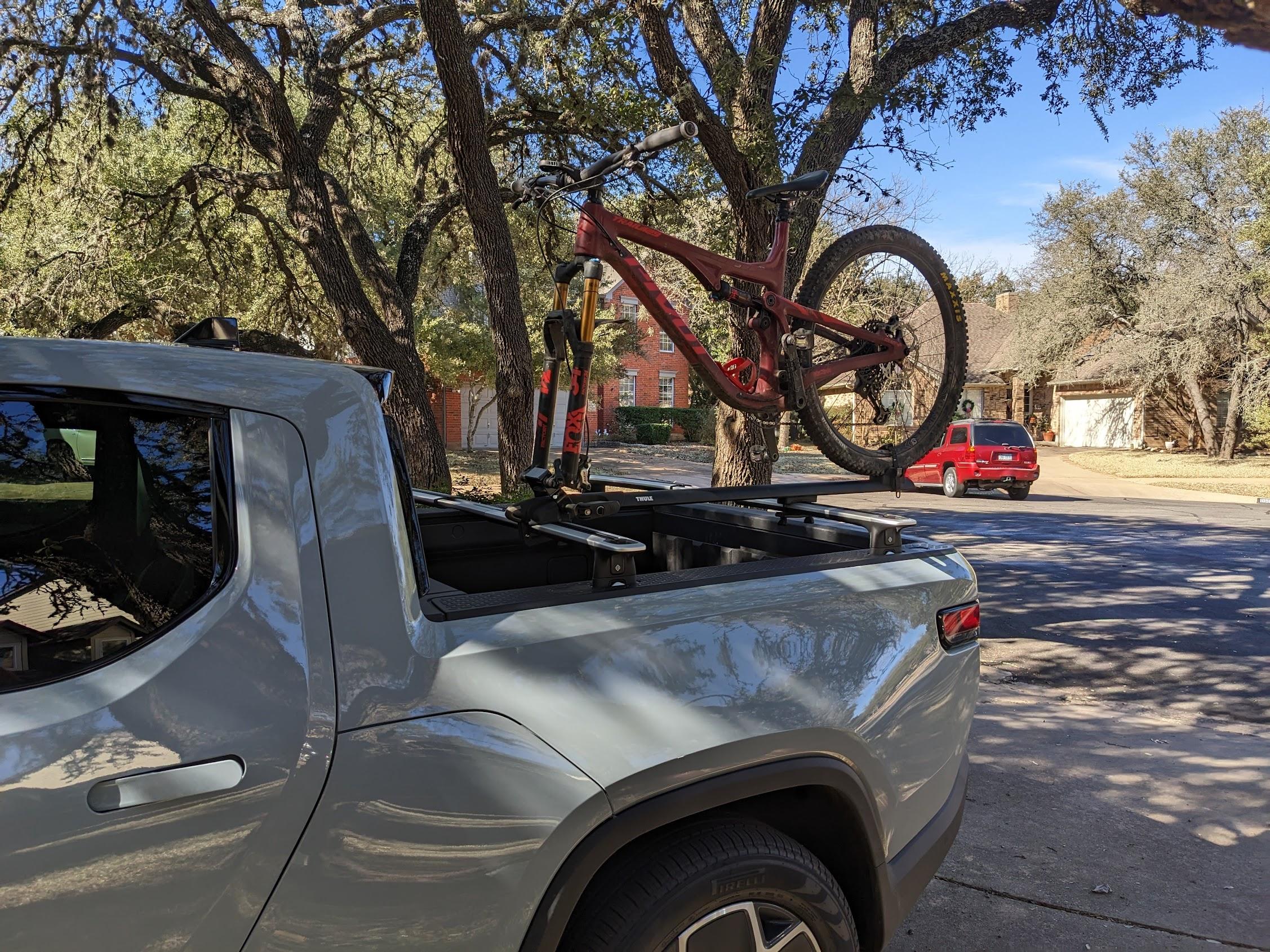

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader PXL_20221228_183347819


Giddy Sled

New Member
First Name
Todd
Joined
Dec 22, 2022
Threads
1
Messages
3
Reaction score
10
Location
Elk Grove
Vehicles
Rivain R1T, Toyota Prius, Chevy Bel Air
Occupation
Teacher
I was wondering about taking the front wheel off and putting the bike under the tonneau myself. I measured my mountain bike and even sticking it in the bed diagonally and removing the front wheel, I'm not sure it will fit. Might have to take off the back wheel as well. Would love to know if you're able to make it work and what size bike you have.
I have a 27.5 that I've put in the bed. It seemed to work fine but not ideal as it was still able to move around a bit. Just got a hitch rack that I'll use next time. The Kuat NV 2.0 seems like a solid option, being easy to get bikes on/off and won't mess too much with range.


suprteck

Well-Known Member
First Name
Anthony
Joined
Dec 20, 2022
Threads
6
Messages
112
Reaction score
73
Location
California
Vehicles
Tesla Model 3, Rivian R1T
Occupation
Mechanic
Hello! My first post, but I wanted to share this: I think I found a good solution for mounting bikes on the racks over the Rivian truck bed. I used a Yakima Frontloader (which I've had previously and is a very durable bike mount) and placed the front of the bike mount facing the cab. The Frontloader mounting mechanism is very close to the center of the front wheel, so it allows my 29'er bike to fit if the mounts are in the widest position on each side. I don't think this bike would fit in the middle. Smaller bikes, or maybe 26/27.5" bikes would fit in the middle if you wanted to load more than 2 bikes.

Some numbers: my bike has a 45.5" long wheels base (wheel center to center) and is 74" from the furthest from rubber to the back of the rear tire. There is about a 1-1.5" gap to the roof of the cab. I'm pretty excited that I found a solution- I was not looking forward to bikes on the roof or a hitch mount. Am I missing something?

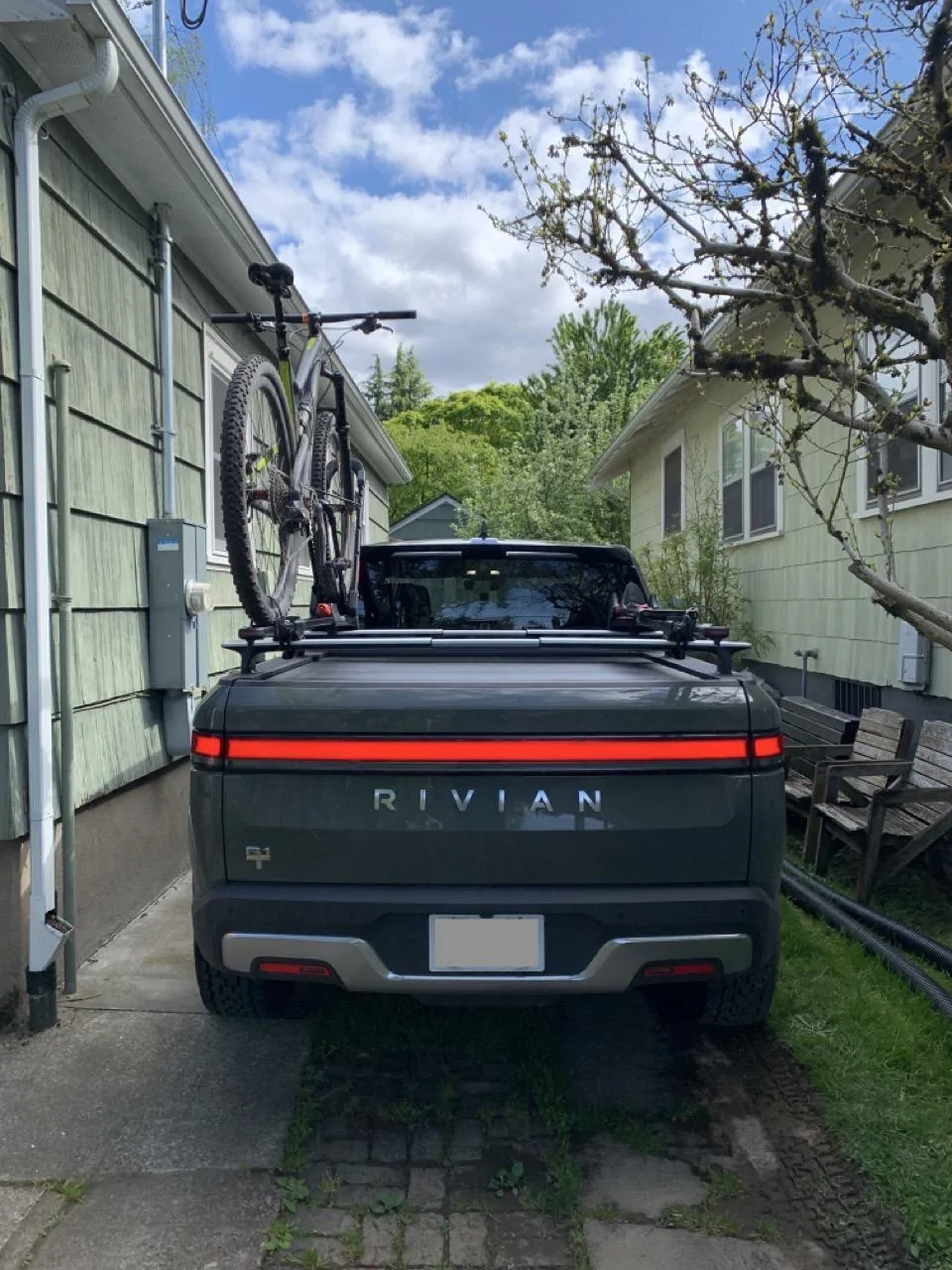

rear full.jpeg

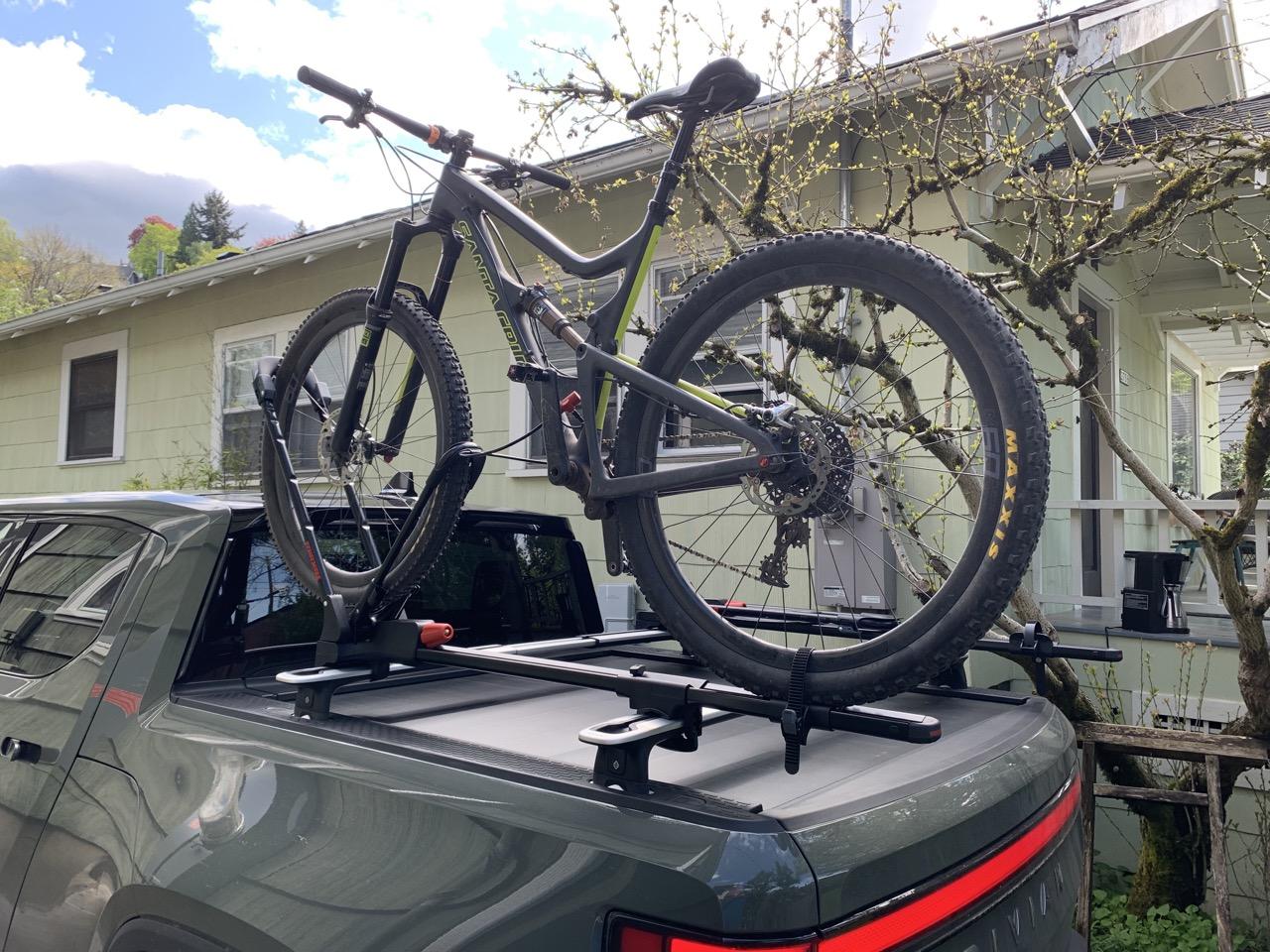

angle rear_45.5 in wheel to wheel.jpeg

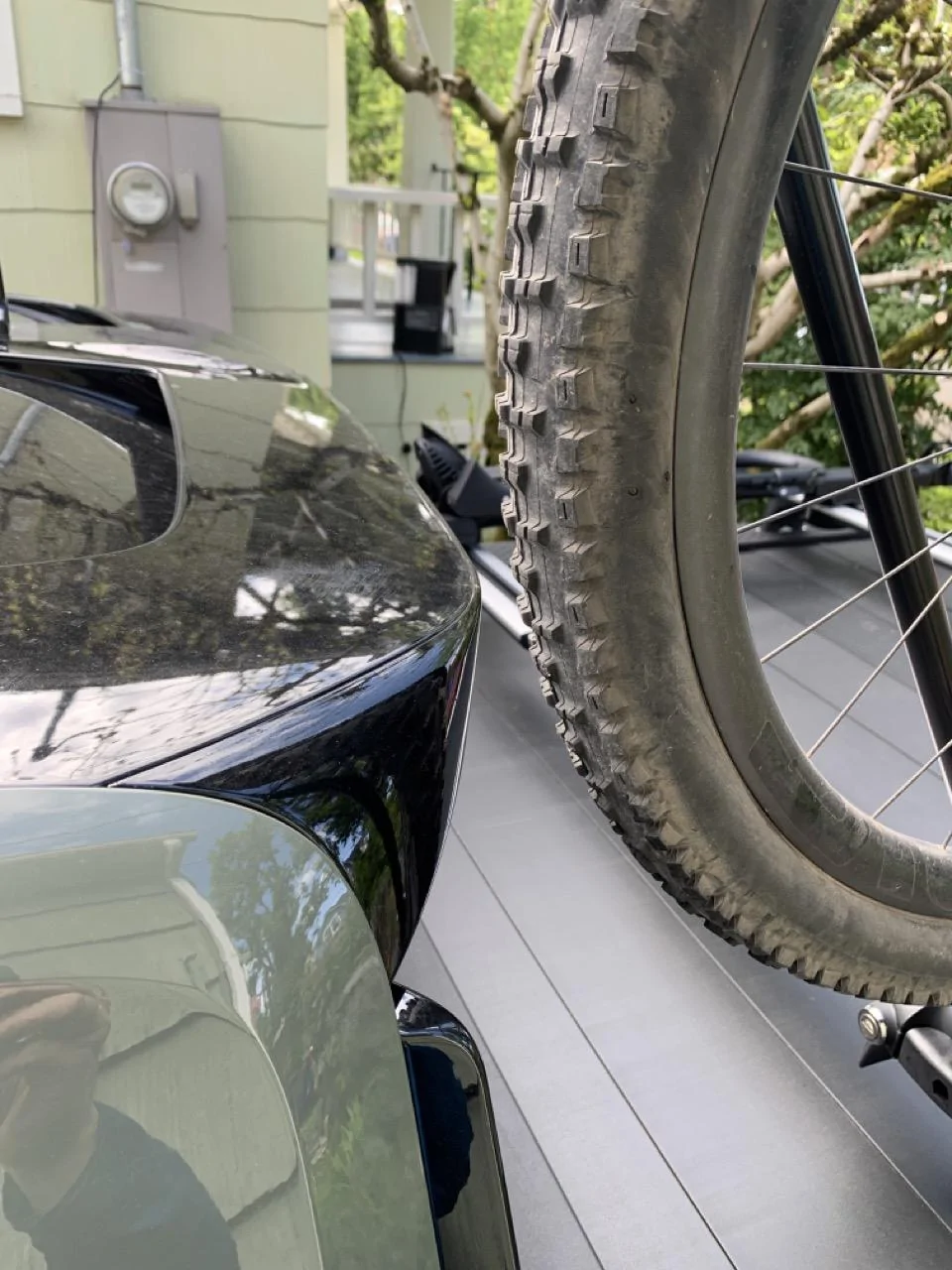

gap-1.5 in.jpeg

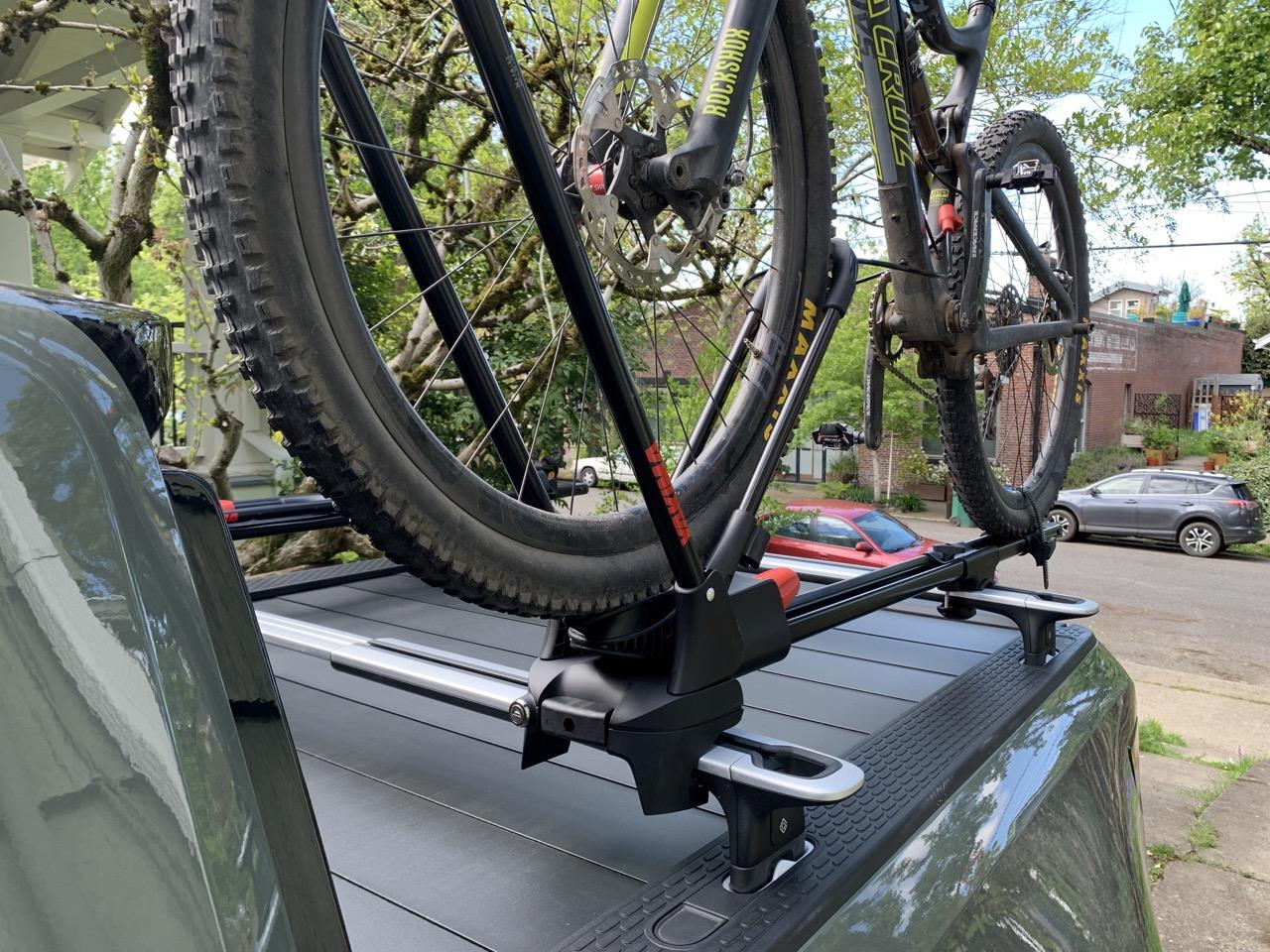

angle front.jpeg

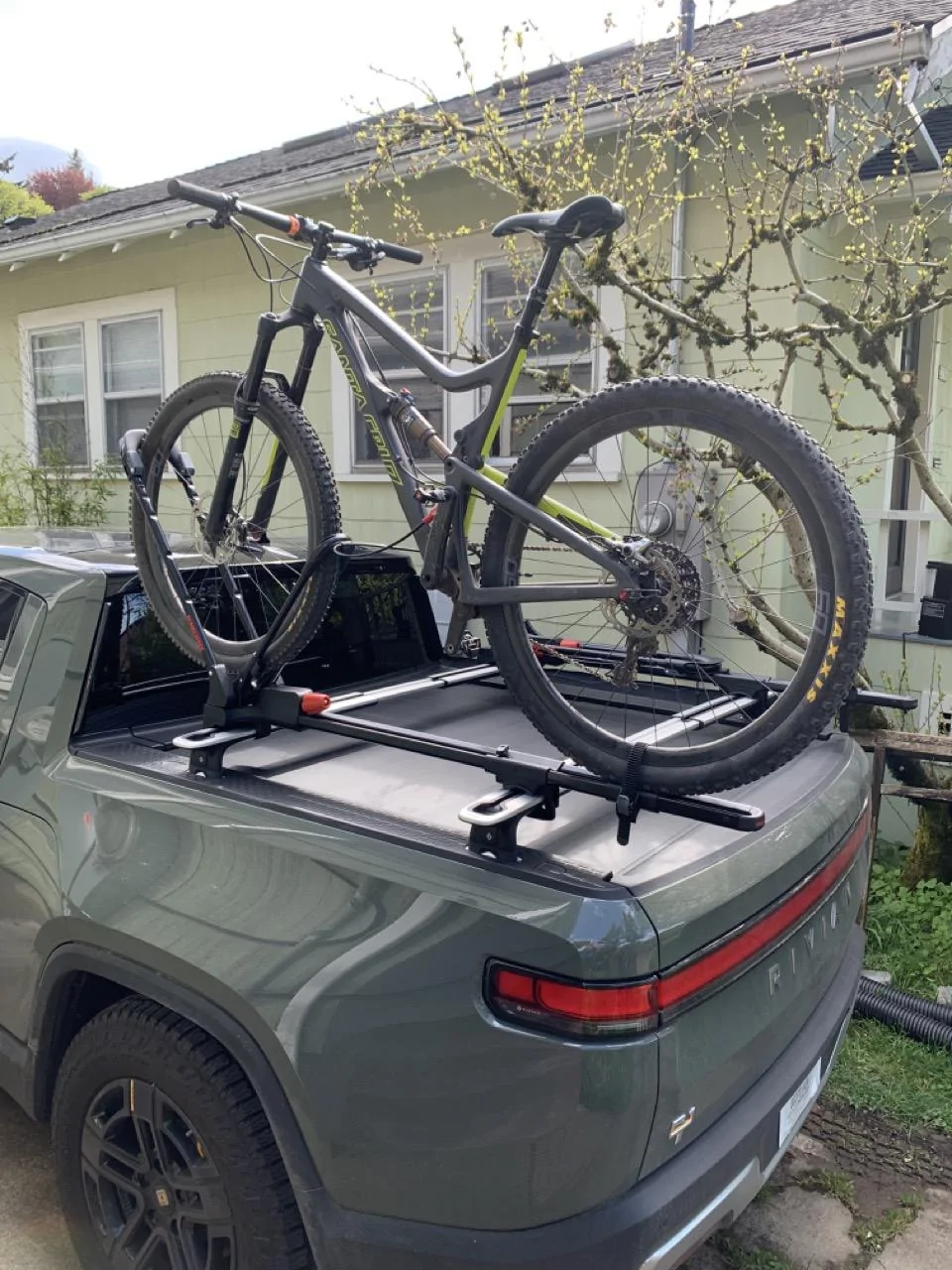

angle rear_74 in total length.jpeg
How much pass the bed does the tray stick out?


Sponsored

Gee Bee

Well-Known Member
First Name
Guy
Joined
Feb 21, 2021
Threads
1
Messages
214
Reaction score
130
Location
92276
Vehicles
Vw tdi golf -chevy SSR-997 Turbo S
Occupation
Design
Iam stuck with a one up as my HPC is around
87 pounds, I do like it as it’s 10k watt though.
Best speed now 82mpg , range 88 miles

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader EAF32E83-2537-4001-B8D6-4A27CD3AFCBE


CD4Complex

Member
First Name
Quenton
Joined
Jul 25, 2022
Threads
0
Messages
20
Reaction score
10
Location
Massachusetts
Vehicles
Rivian R1T
Hello! My first post, but I wanted to share this: I think I found a good solution for mounting bikes on the racks over the Rivian truck bed. I used a Yakima Frontloader (which I've had previously and is a very durable bike mount) and placed the front of the bike mount facing the cab. The Frontloader mounting mechanism is very close to the center of the front wheel, so it allows my 29'er bike to fit if the mounts are in the widest position on each side. I don't think this bike would fit in the middle. Smaller bikes, or maybe 26/27.5" bikes would fit in the middle if you wanted to load more than 2 bikes.

Some numbers: my bike has a 45.5" long wheels base (wheel center to center) and is 74" from the furthest from rubber to the back of the rear tire. There is about a 1-1.5" gap to the roof of the cab. I'm pretty excited that I found a solution- I was not looking forward to bikes on the roof or a hitch mount. Am I missing something?

rear full.jpeg


angle rear_45.5 in wheel to wheel.jpeg


gap-1.5 in.jpeg


angle front.jpeg




angle rear_74 in total length.jpeg
Thank you for this! Very helpful to those of us who tried idiot options! 😝


Wefty

Well-Known Member
First Name
Robert
Joined
Mar 3, 2022
Threads
3
Messages
116
Reaction score
95
Location
Chicago
Vehicles
R1T, 2008 Fit
Re: bikes in the bed

I have a FS 29er (SC Hightower if that helps) and need to take off both wheels to get it in the bed. Not ideal at all. I'm using a tailgate pad. I usually loop a bungee cord from the top of the bed mounts around the seatpost so they don't move around.


danen1973

Well-Known Member
First Name
Nenad
Joined
Jan 17, 2023
Threads
6
Messages
45
Reaction score
42
Location
Lakeland, TN
Vehicles
R1T
Clubs

I went this route. I wanted to be able to pull into my garage without taking the bike off first. I have a few inches to spare (assuming I don't put the suspension into the highest setting).
Not sure how much aero impact it will have.

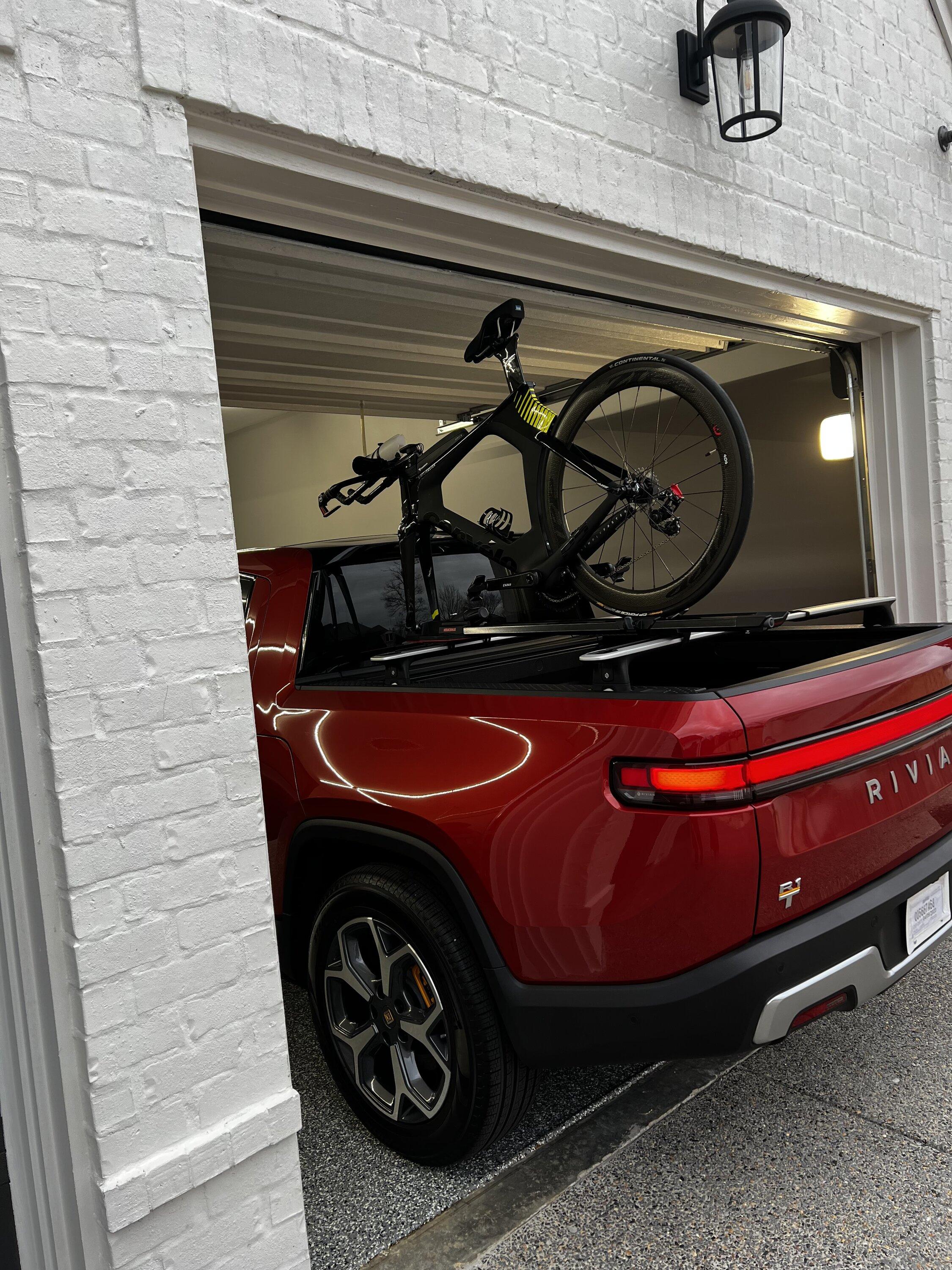

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader IMG_0681

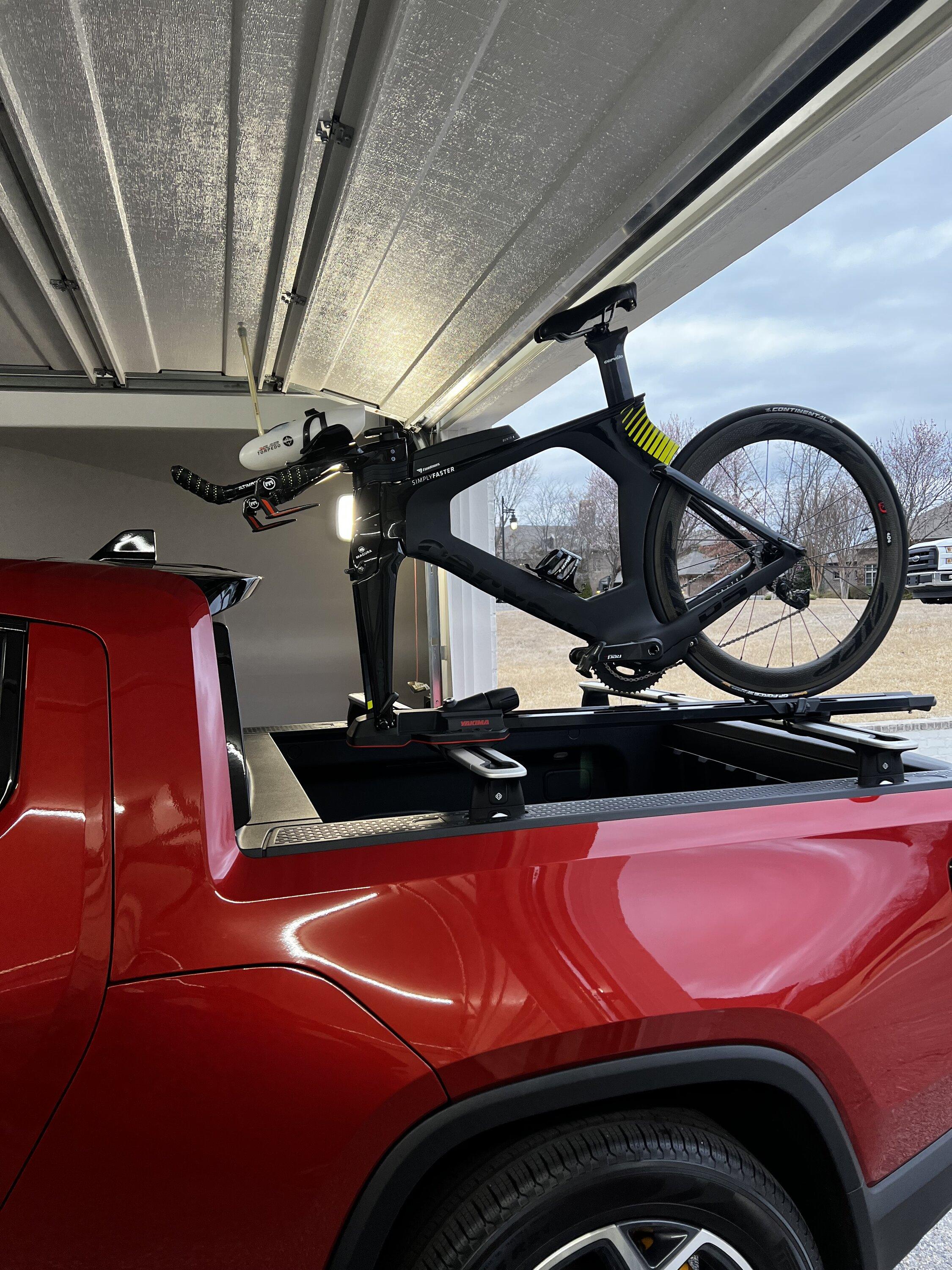

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader IMG_0682

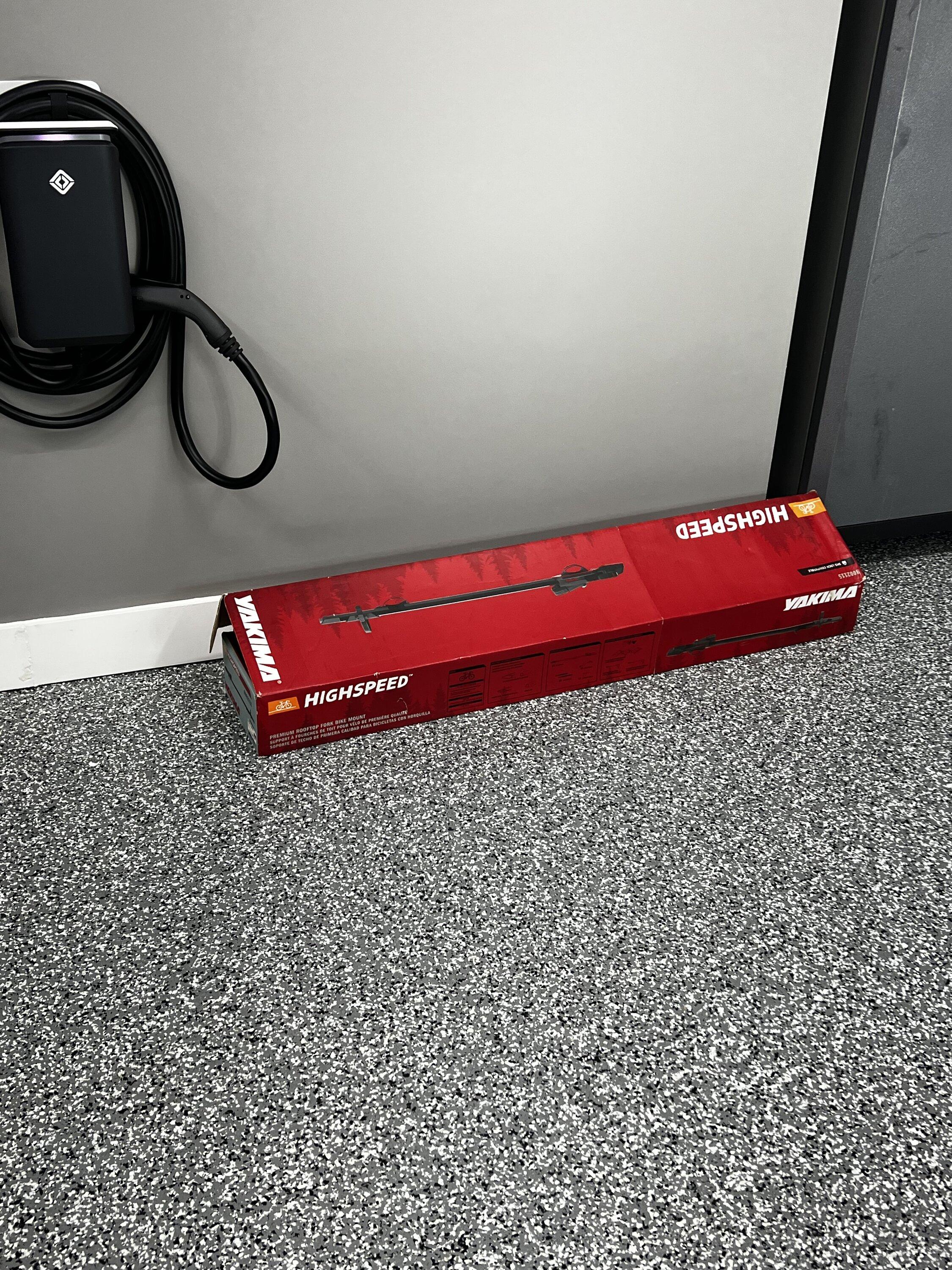

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader IMG_0683

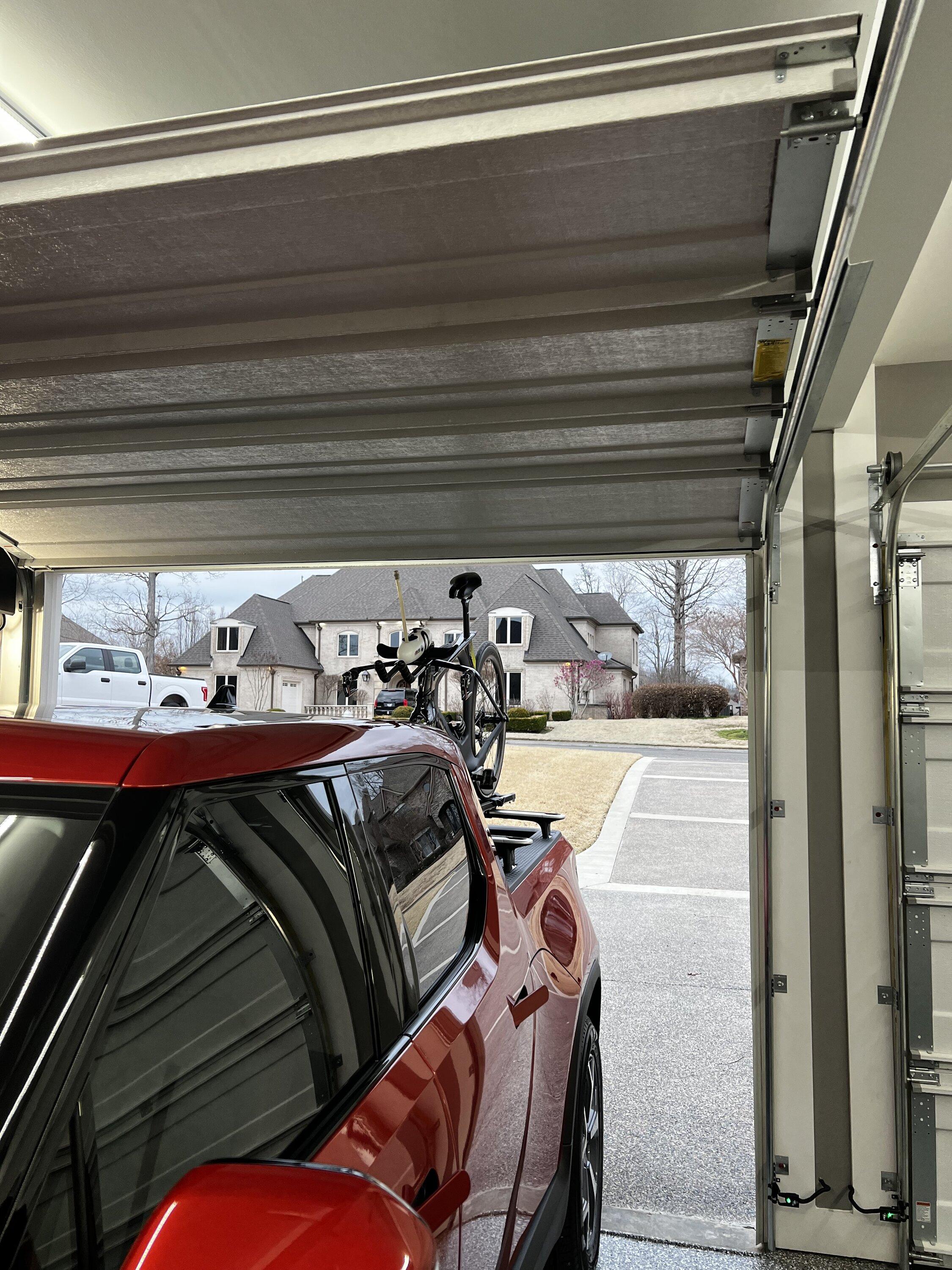

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader IMG_0684
