My 3D printed OEM-looking Camp Speaker Drawer

[kozak79]

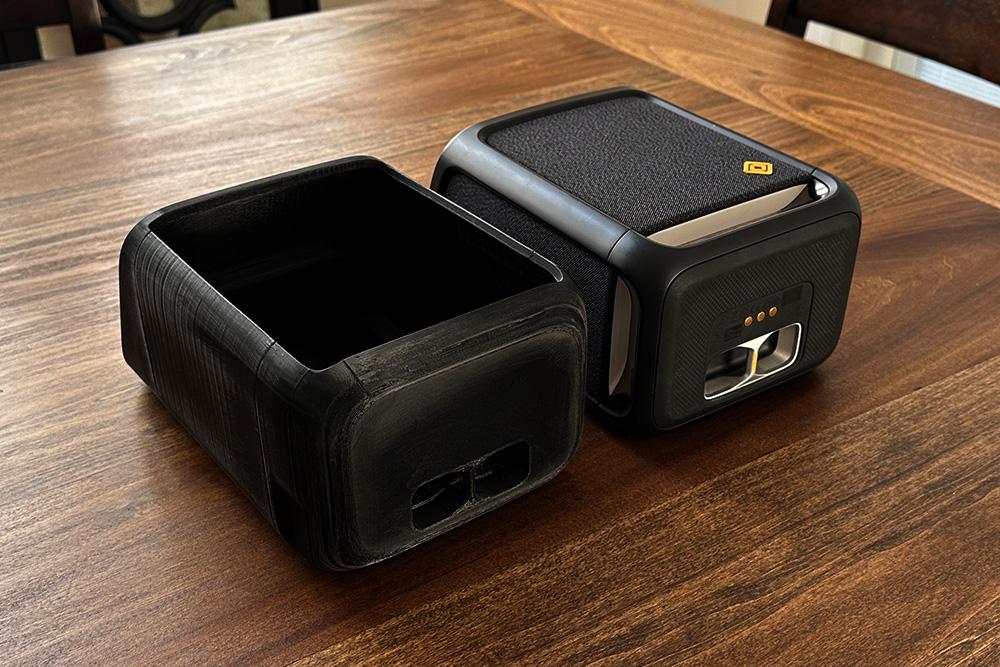

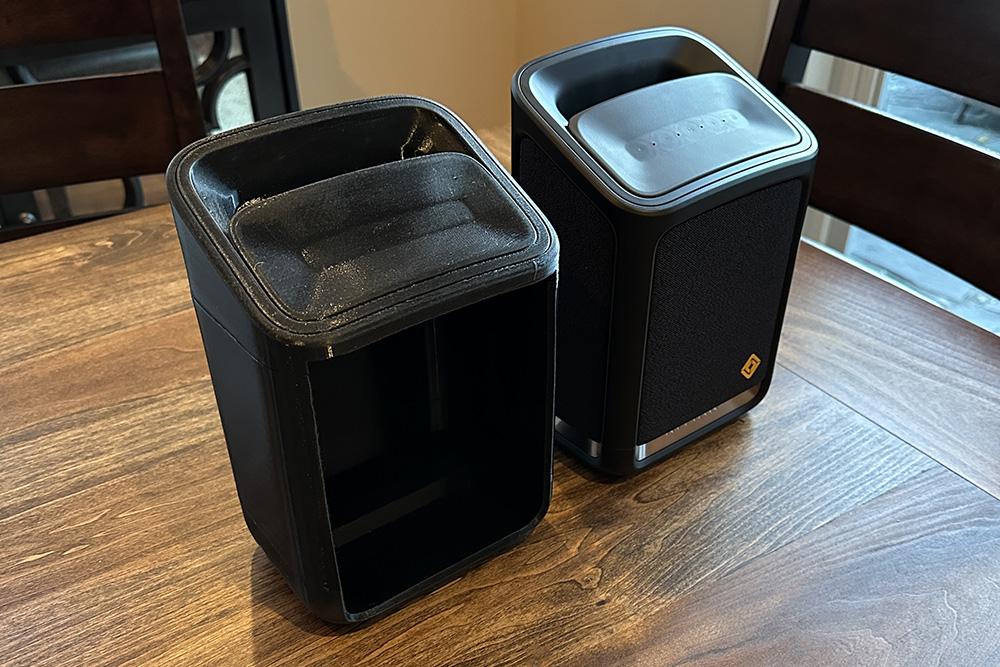

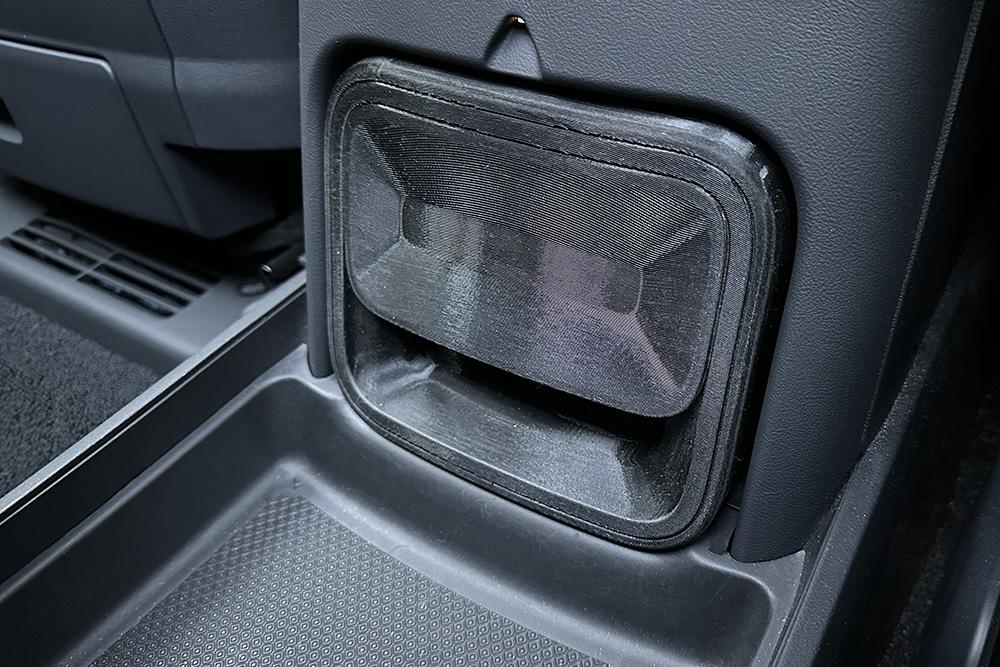

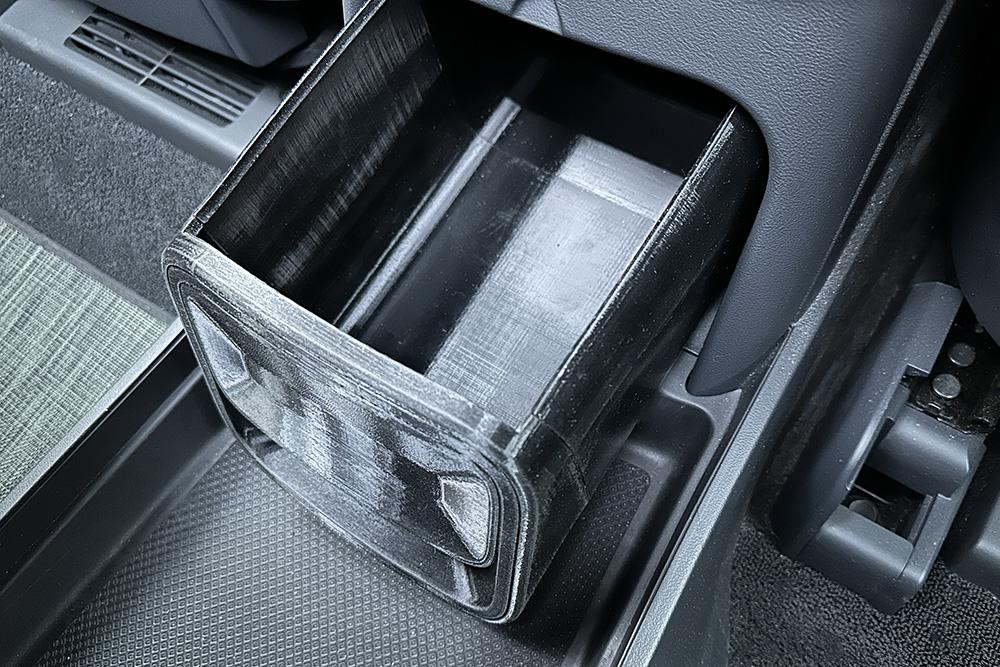

I wanted to make a Camp Speaker Drawer as OEM-looking as possible. I 3D scanned the speaker using an iPhone 14 Pro and Luma AI app and modeled the drawer in Maya. Printed in 3 parts on a Prusa Mini 3D printer.

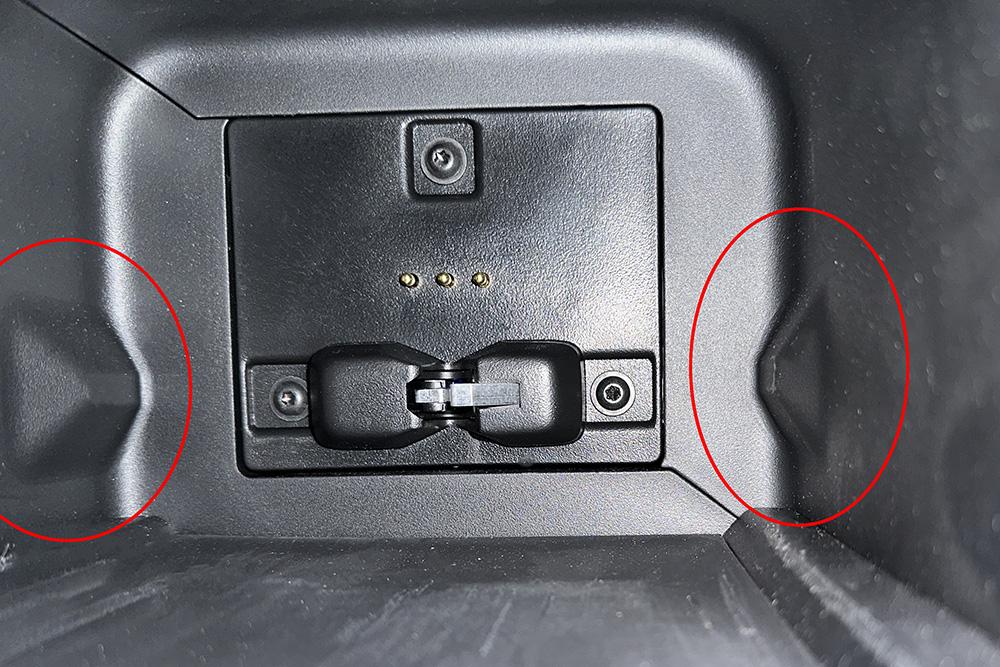

I didn't realize that the light cutouts on the speaker actually needed to be there until after I printed it. I need to add the light recess on the sides and re-print. Other than that, I'm pretty happy with the way it looks.

Please post pictures if you print your own!!!

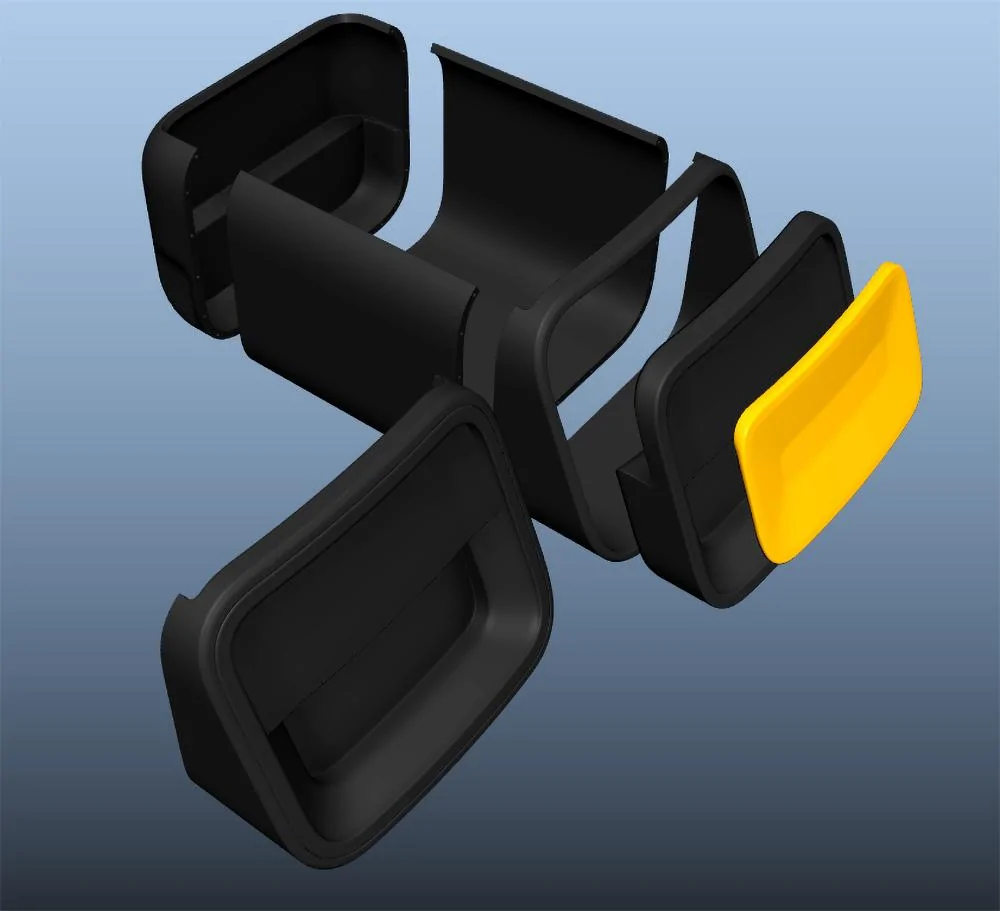

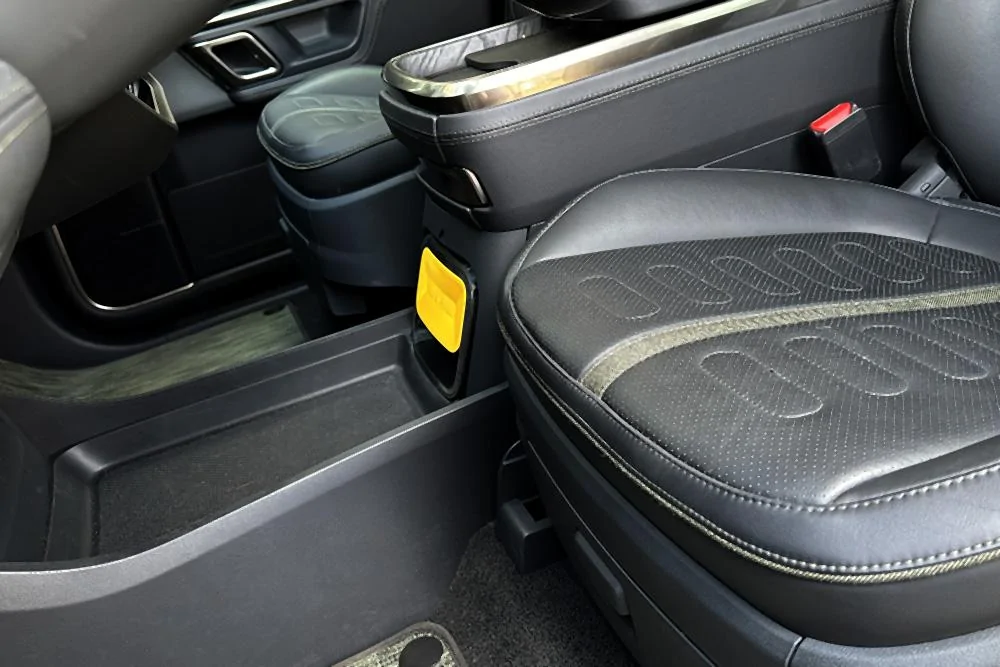

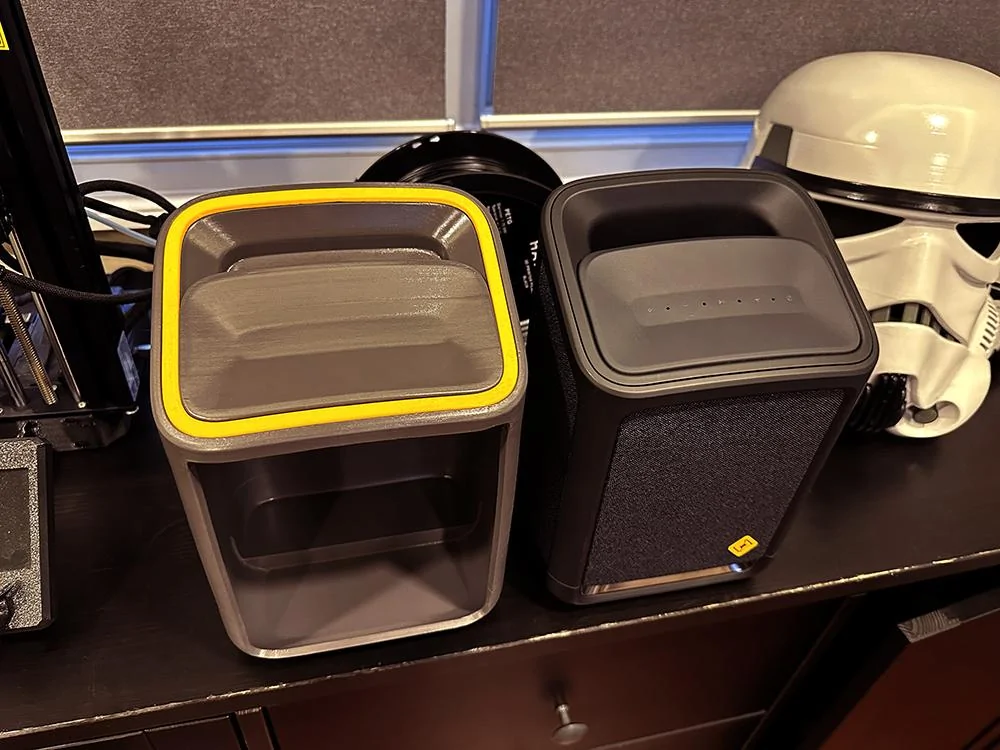

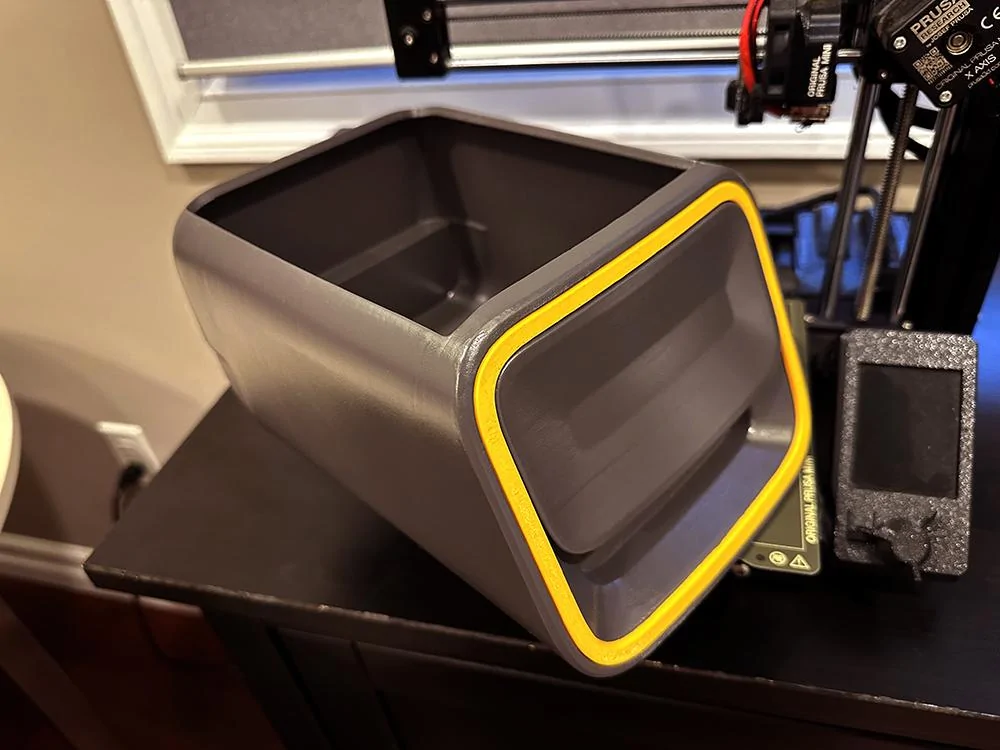

***Updated Design*** (STLs at Printables: https://www.printables.com/model/663847-rivian-camp-speaker-drawer)

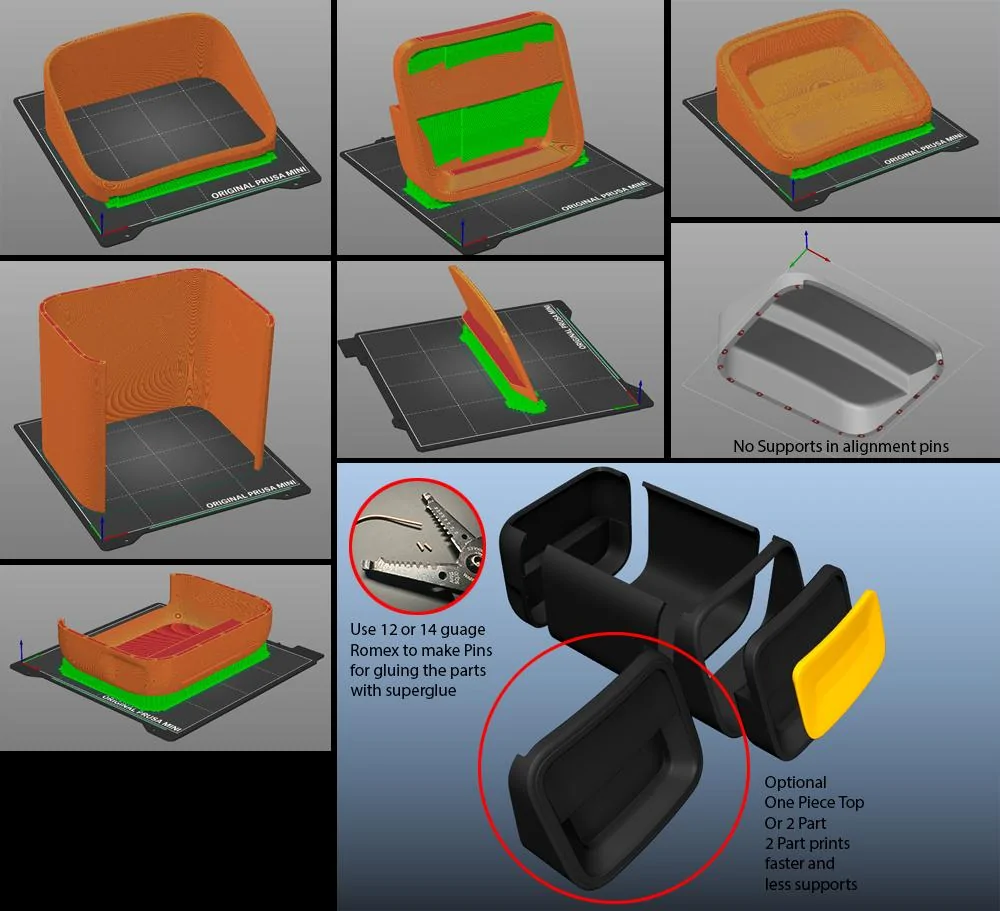

***Instructions*** (Printed in 0.2 mm Quality using a Prusa Mini in PETG)

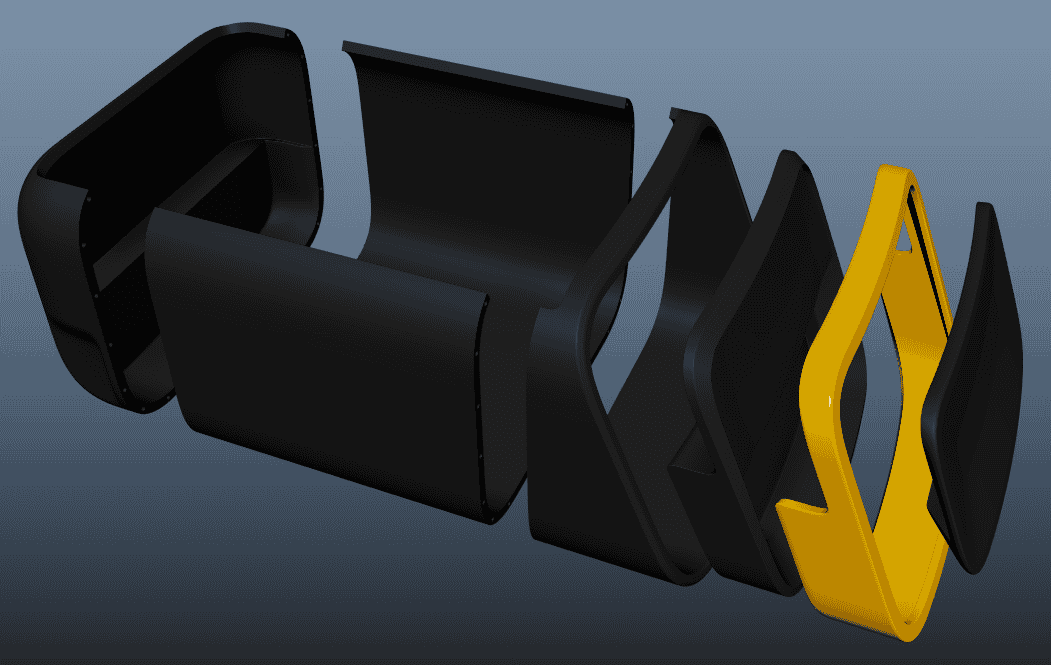

(Optional STLs with separate trim now on Printables)

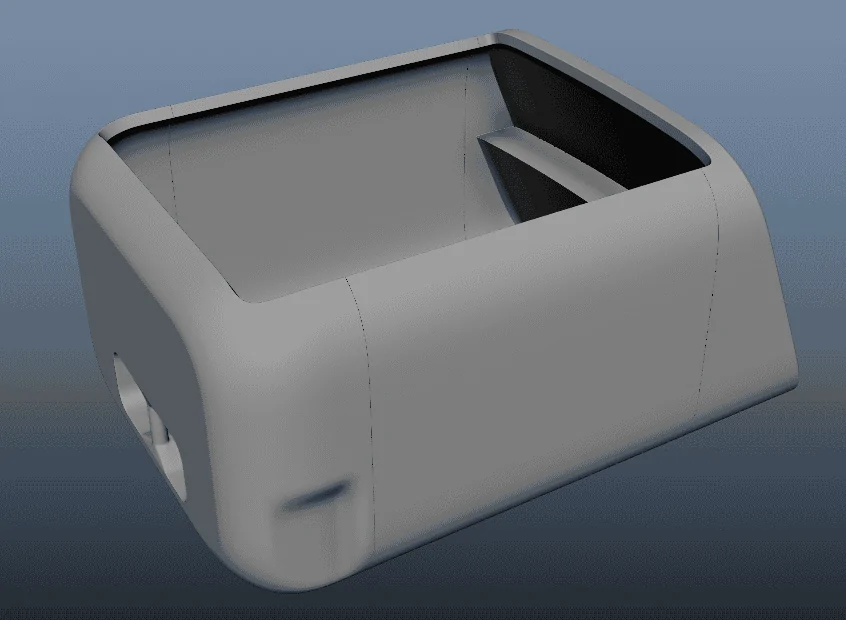

***Original Design***

Sponsored



[Joints4Sale]

I wonder when Rivian will start selling their version. I like the idea of a locking drawer.



[COdogman]

That turned out great! Nice work!



[kozak79]

Just added this recess in the back. Will print a new one and report in a couple of days on the fit.



[Polar]

That is pretty incredible!

I’d totally print one out and use it if you made the file available.



[240vPlug]

Nice work!!!



[Supratachophobia]

I wanted to make a Camp Speaker Drawer as OEM-looking as possible. I 3D scanned the speaker using an iPhone 14 Pro and Luma AI app and modeled the drawer in Maya. Printed in 3 parts on a Prusa Mini 3D printer.

I didn't realize that the light cutouts on the speaker actually needed to be there until after I printed it. I need to add the light recess on the sides and re-print. Other than that, I'm pretty happy with the way it looks.

View attachment 75396 View attachment 75398 View attachment 75397

This guy's the real MVP.



[iansriv]

Nice work! Which reminds me that I need to take a look at that speaker. Had the car for abut 3 months and keep forgetting to use it. Cheers.



[palmsole]

Now if rivian would just add a hardware option for fingerprints scanner and a pin for locking the drawer. Many more options including gunsafe etc



[Sevn86]

Oh wow! Thats nice!



[kizamybute']

Twraps just released their version too



[Mark_AZR1T]

Outstanding! That is a lot of design effort!



[beyondgravity]

I wonder when Rivian will start selling their version. I like the idea of a locking drawer.

Yes and lock/unlock from the app and or screen!



[kozak79]

If someone can figure out what circuitry is needed for the 3 contacts on the back for the truck to recognize the speaker, it can be added to the 3D print and will enable locking from the settings.

it maybe as simple as a resistor on 2 of the contacts



[Robin]

Just added this recess in the back. Will print a new one and report in a couple of days on the fit.

Awesome
