Wet spot under driver mat

dleepnw

Well-Known Member
Joined
May 13, 2021
Threads
148
Messages
3,011
Reaction score
3,417
Location
WA
Vehicles
Rivian, Toyota, Lexus
Clubs

Agent C said Agent B said Agent A said that a text Agent A got from the service manager said that the service tech said “Your truck is almost ready purplemonkeydishwasher.”
the more im hearing about the experiences owners are having with service centers, the more i realize they just dont know what they are doing... yet.

no one has experience with an R1T/R1S, no matter how many years of experience they have in vehicle servicing. on top of that its a new vehicle with some design issues/flaws which are slowly starting to reveal itself.

is it any wonder there is little to no communication?

i think half the time (maybe more) they have no idea what the root cause is, let alone what a solution would be. they probably need to call corporate who then has to have engineering and manufacturing look into it and that probably takes days if not weeks to figure out whats wrong and then come up with a fix.

"keep the world adventurous forever", right?
Sponsored


OP
OP
jerseyff

jerseyff

Well-Known Member
First Name
Darren
Joined
Aug 3, 2020
Threads
17
Messages
736
Reaction score
985
Location
McDonald, TN
Vehicles
R1T; Model 3 Highland
Occupation
IT
Received an update from the service manger in Atlanta yesterday, he stated there was a shipping /freight method delay for a part which was the cause for my truck being at the SC for over a week. It was a mishap, and it was a Rivian whoops when the part was ordered. The truck will be finished this morning and on a transport this afternoon back to me before I head out on a trip first thing Saturday! Once I have the service ticket details and a full breakdown of work done to resolve the water under the driver carpet issue, I will share. I should have those details later today.

Last edited:
OP
OP
jerseyff

jerseyff

Well-Known Member
First Name
Darren
Joined
Aug 3, 2020
Threads
17
Messages
736
Reaction score
985
Location
McDonald, TN
Vehicles
R1T; Model 3 Highland
Occupation
IT
Final update...the work was completed yesterday morning. They arranged transport back to me same day as I am leaving town and they were rockstars and arranged for it to be back prior to.

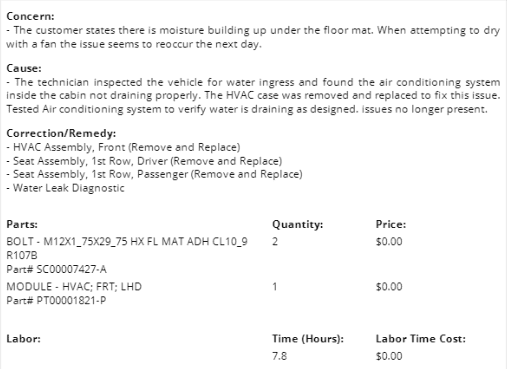

Here is the invoice details related to the water leak into the cabin floor area...

Rivian R1T R1S Wet spot under driver mat 1663331767497


Case closed. I hope tracking this issue has or will help to provide some valuable information to someone else in the Rivan world. Truck is running great, I'm excited to be able to use the cool down feature again and not worry about pooling excessive moisture in the cabin!

Last edited:

Gsxr150

Well-Known Member
Joined
Feb 25, 2022
Threads
40
Messages
483
Reaction score
445
Location
Minnesota
Vehicles
F
Do we have any information to believe this is a design issue on EVERY truck, or just a random bad part for you?

OP
OP
jerseyff

jerseyff

Well-Known Member
First Name
Darren
Joined
Aug 3, 2020
Threads
17
Messages
736
Reaction score
985
Location
McDonald, TN
Vehicles
R1T; Model 3 Highland
Occupation
IT
Do we have any information to believe this is a design issue on EVERY truck, or just a random bad part for you?
I cant confirm either way. The service manager I was talking to about my truck said it was a faulty component with the HVAC system, he did not elaborate on if it was some or all units.


Sponsored

R1Tom

Well-Known Member
First Name
Tom
Joined
May 19, 2022
Threads
37
Messages
3,621
Reaction score
4,862
Location
Wisc
Vehicles
Riv R1T
Occupation
Sales
I cant confirm either way. The service manager I was talking to about my truck said it was a faulty component with the HVAC system, he did not elaborate on if it was some or all units.
I had to guess variance, as I have 8k miles on mine and been checking, and no signs of any water under floor mat in mine.


Voronbrg

Well-Known Member
First Name
Jay
Joined
Feb 18, 2022
Threads
17
Messages
248
Reaction score
348
Location
Texas
Vehicles
Everything
they replaced the whole inside unit on my truck. so far no leaks. took roughly a week to get the part in.


seancalvillo

Member
First Name
Sean
Joined
Aug 28, 2022
Threads
0
Messages
18
Reaction score
13
Location
Darien, CT
Vehicles
Rivian R1T Adventure Package El Cap w/ PPF 20" ATs
Occupation
Software Consultant
I cant confirm either way. The service manager I was talking to about my truck said it was a faulty component with the HVAC system, he did not elaborate on if it was some or all units.
Mine too. replacing the component fix the leak for me


JWreck

Well-Known Member
First Name
Josh
Joined
Oct 3, 2021
Threads
11
Messages
288
Reaction score
394
Location
Texas
Vehicles
R1S (pre-ordered, Audi RS5 Sportback
Occupation
IT
I just pulled up our rubber mats today to clean them and of course they were wet on the bottom. Pretty sure this is happening to us. It hasn’t rained here in Austin in a while and I last washed it a month ago.


JWreck

Well-Known Member
First Name
Josh
Joined
Oct 3, 2021
Threads
11
Messages
288
Reaction score
394
Location
Texas
Vehicles
R1S (pre-ordered, Audi RS5 Sportback
Occupation
IT

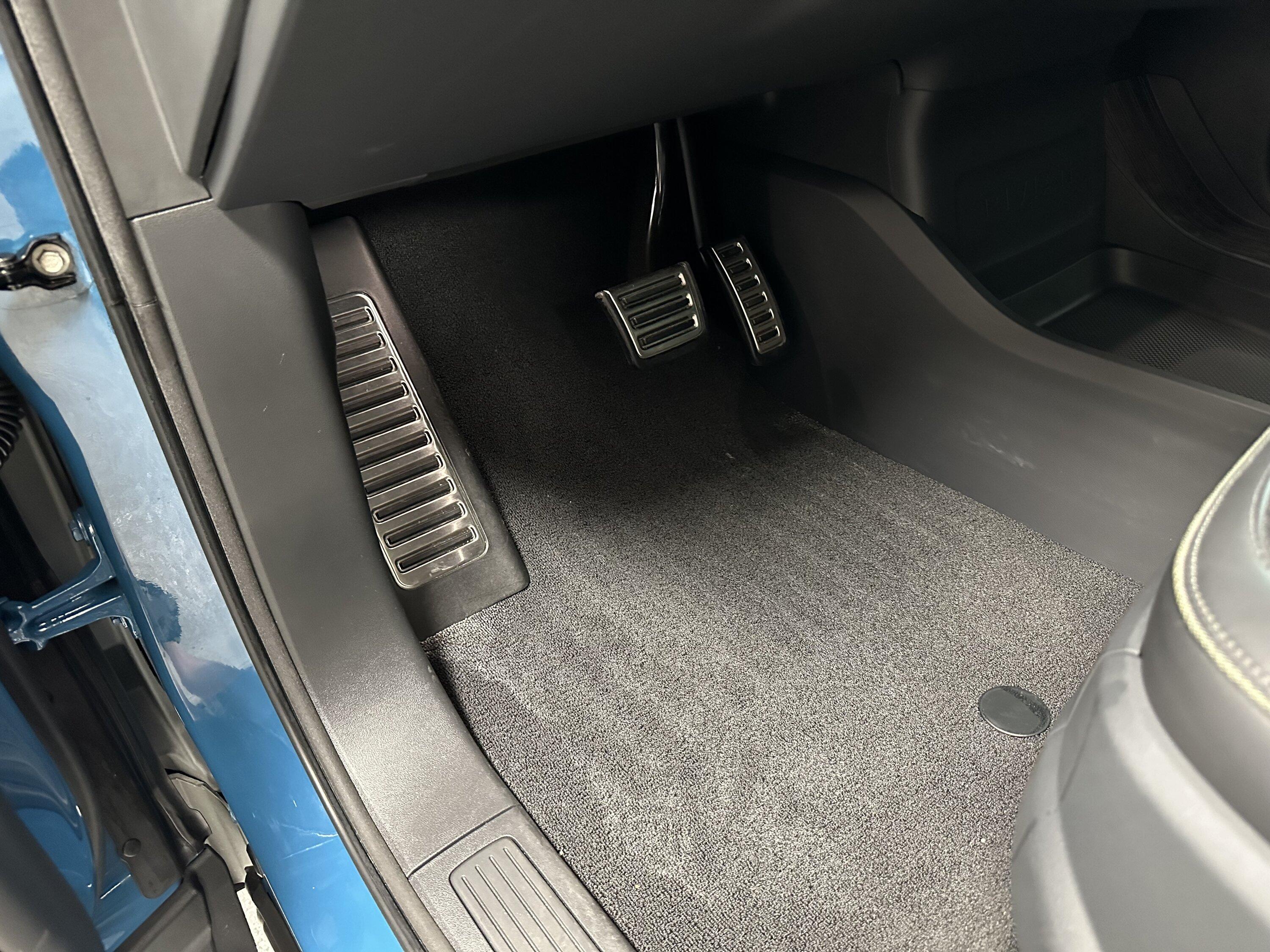

The picture below is what I lifted up the mat to find.
Rivian R1T R1S Wet spot under driver mat IMG_0450


After submitting a service ticket, I cleaned the carpet (chemical, steam, chemical, steam, carpet extractor) and now they’re drying with a fan. Sure wish this car had an on/off switch…

Last edited:

Sponsored

Voronbrg

Well-Known Member
First Name
Jay
Joined
Feb 18, 2022
Threads
17
Messages
248
Reaction score
348
Location
Texas
Vehicles
Everything
I should update this , as my original replacement leaked again. And they recently replaced it again. Not too happy as it happened last year as well.


Electrified Outdoors

Well-Known Member
First Name
Ken
Joined
Jan 30, 2023
Threads
63
Messages
3,683
Reaction score
3,980
Location
Mount Airy, Maryland
Website
EVoutdoors.org
Vehicles
2024 Rivian R1S Quad, 2024 Silverado EV RST First Edition
Occupation
Real Estate
Clubs

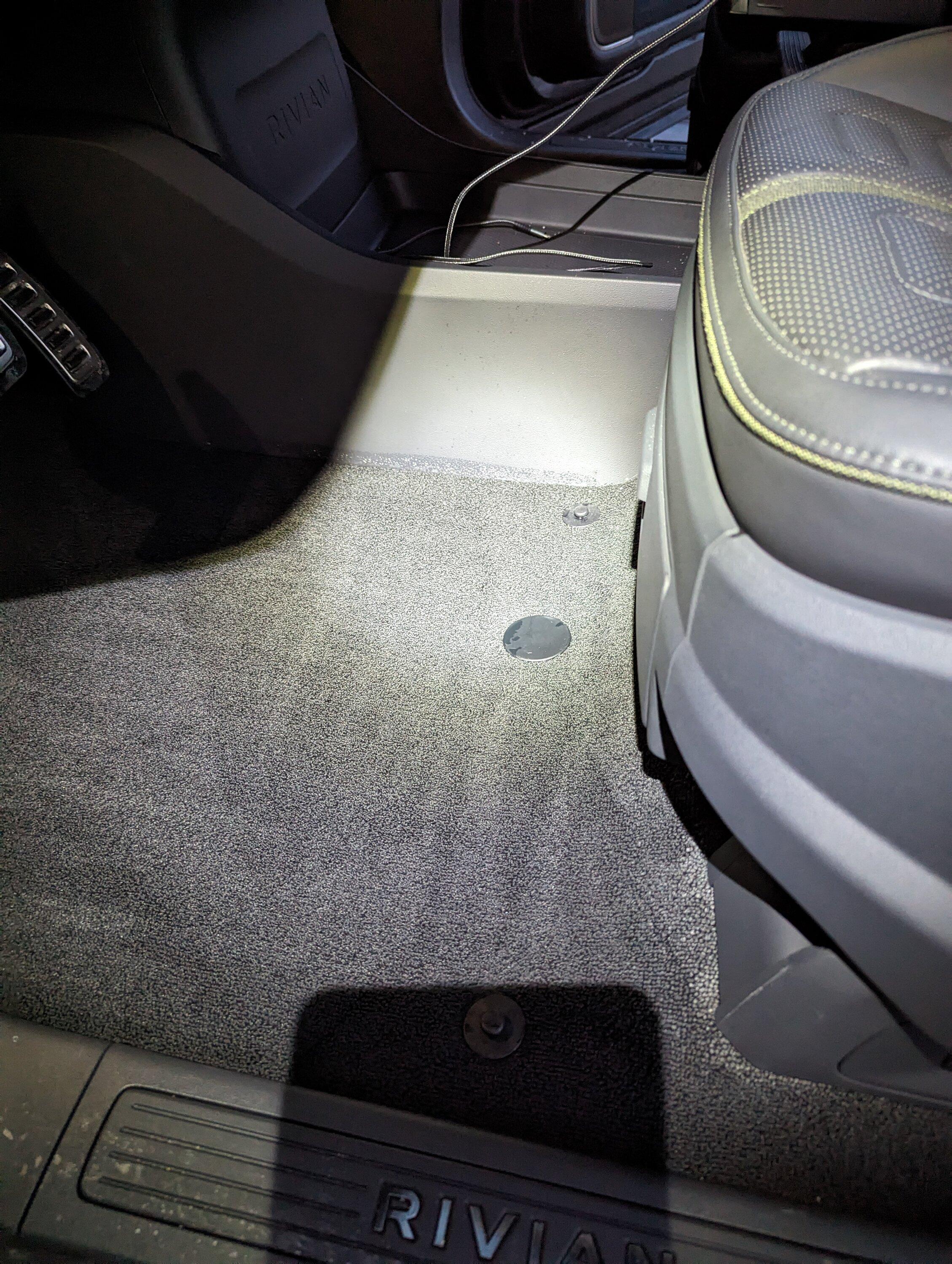

Add me to the list ?. Entire driver floorboard soaking wet up to behind the pedals where you can see a white line ??‍♂

A musty smell has also developed. My wife drives it and we have all weather mats so neither of us noticed. Service request submitted to Rivian.

Rivian R1T R1S Wet spot under driver mat 1000003549


longhornguy2015

Well-Known Member
First Name
Darshan
Joined
Mar 31, 2023
Threads
2
Messages
54
Reaction score
34
Location
Houston
Vehicles
Rivian R1S
Occupation
IT Analyst
Add me to the list ?. Entire driver floorboard soaking wet up to behind the pedals where you can see a white line ??‍♂

A musty smell has also developed. My wife drives it and we have all weather mats so neither of us noticed. Service request submitted to Rivian.

Any update on if it was fixed to your satisfaction?


Electrified Outdoors

Well-Known Member
First Name
Ken
Joined
Jan 30, 2023
Threads
63
Messages
3,683
Reaction score
3,980
Location
Mount Airy, Maryland
Website
EVoutdoors.org
Vehicles
2024 Rivian R1S Quad, 2024 Silverado EV RST First Edition
Occupation
Real Estate
Clubs

Any update on if it was fixed to your satisfaction?
Not yet. We still have a service center loaner. Rivian is working with us to resolve the issue. I hope to have an update soon.


longhornguy2015

Well-Known Member
First Name
Darshan
Joined
Mar 31, 2023
Threads
2
Messages
54
Reaction score
34
Location
Houston
Vehicles
Rivian R1S
Occupation
IT Analyst
Not yet. We still have a service center loaner. Rivian is working with us to resolve the issue. I hope to have an update soon.
Hold up, so it’s been with them since January and it’s now May? Where are you located?
